LGDigital SignageSKU 65US5P-E

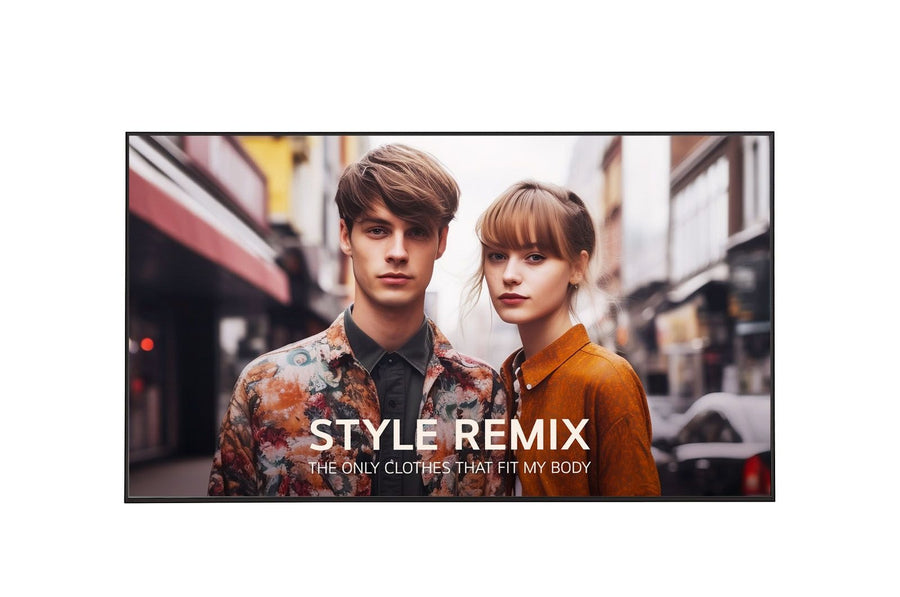

LG 65-inch UHD Digital Signage Display – 65US5P-E
The LG 65US5P-E is a discontinued 65-inch 4K UHD digital signage display with an IPS (M+) panel, 500 nits typical brightness and webOS 6.0. It suits retail, corporate and hospitality screens that are managed centrally. Procure.ae supplies LG signage displays across the UAE and can confirm current availability of this model.
The LG 65US5P-E shows 3840 x 2160 (UHD) resolution on a 65-inch 16:9 IPS (M+) panel. Typical brightness is 500 nits, the typical contrast ratio is 1,100:1 and the dynamic contrast rating is 1,000,000:1. The colour gamut is BT.709 95% with 10-bit colour depth, and response time is 9 ms (grey to grey). The display runs webOS 6.0 with built-in Wi-Fi and Bluetooth, 16 GB of internal eMMC storage and two 10 W speakers, and it is rated for 24/7 operation.
The 65US5P-E suits lobbies, retail floors and meeting areas where screens are scheduled and monitored remotely. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud, along with Crestron Connected and Wake on LAN. It has three HDMI inputs, one DisplayPort input and an HDMI output for daisy chaining, plus RS232C in and out, a LAN input and an IR input. Compared with the 65UP5R-E, it runs webOS 6.0 instead of webOS 8.0 and lists a 9 ms response time instead of 8 ms.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- webOS 6.0 platform
- 4K UHD IPS panel
- Colour performance
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 6.0 platform
Runs webOS 6.0 with built-in Wi-Fi and Bluetooth.
02
4K UHD IPS panel
3840 x 2160 resolution on a 65-inch IPS (M+) panel with 500 nits typical brightness.
03
Colour performance
BT.709 95% colour gamut with 10-bit colour depth.
04
Daisy-chain video
HDMI and DisplayPort inputs with an HDMI output for daisy-chained displays.
05
Tile mode
Tile mode setting for up to 15 x 15 displays.
06
Content management
SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud are listed as supported.
07
Built-in sensors
Auto brightness, temperature and acceleration (gyro) sensors, plus local key operation.
08
Control and power
RS232C, RJ45 LAN and IR input, Wake on LAN and 0.5 W power-off consumption.
Specifications
35 specificationsGeneral
CompatibilitySuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Crestron Connected
Key Features4K UHD IPS (M+) panel, 500 nits, webOS 6.0, daisy chain, tile mode up to 15 x 15, SuperSign compatible, Wake on LAN, 10 W x 2 speakers
Model65US5P-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holder (2), AC cord holder (1)
Display
Aspect Ratio16:9
Bezel SizeTop/right/left 8.9 mm, bottom 12.9 mm
Brightness500 nits
Color Depth10-bit, 1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS (M+)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size65 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 6.0
Storage16 GB (eMMC)
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DP In × 1, HDMI Out × 1, RS232C In/Out, RJ45 (LAN) In, IR In, USB 2.0 × 1, Audio Out
Wi-FiBuilt-in
Power
Standby Power0.5 W
Physical
ColorBlack
Dimensions1450.3 x 830.3 x 29.7 mm (without IR)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight24.2 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ErP (NewErP D)
IP RatingIP5X
Downloads
Manufacturer documents for the LG 65-inch UHD Digital Signage Display – 65US5P-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the LG 65US5P-E?
It is a 65-inch 4K UHD (3840 x 2160) signage display with an IPS (M+) panel, 500 nits typical brightness, a 1,100:1 typical contrast ratio and a 9 ms response time. It runs webOS 6.0 and supports portrait and landscape orientation.
Does the LG 65US5P-E support daisy chaining?
Yes. The manufacturer lists daisy-chain input over HDMI and DisplayPort with an HDMI output, so one source can feed the next display. The HDMI output is listed at 3840 x 2160 at 30 Hz.
Can the LG 65US5P-E be used in a tiled display setup?
Yes. Tile mode is listed with a maximum of 15 x 15 displays, and setting data cloning is also listed, so matching screens can be configured together. Confirm the layout and input routing with the installer before ordering.
How is the LG 65US5P-E controlled and managed?
It has RS232C in and out, an RJ45 LAN input and an IR input, with SNMP and Control Manager listed. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud for content and monitoring.
Which VESA mount does the LG 65US5P-E need?
The LG 65US5P-E uses a 300 x 300 mm VESA standard mount interface. The head weighs 24.2 kg and the monitor measures 1450.3 x 830.3 x 29.7 mm without IR, so the mount should be rated for that weight and size.
Can I buy the 65US5P-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
