LGDigital SignageSKU 65UP5R-E

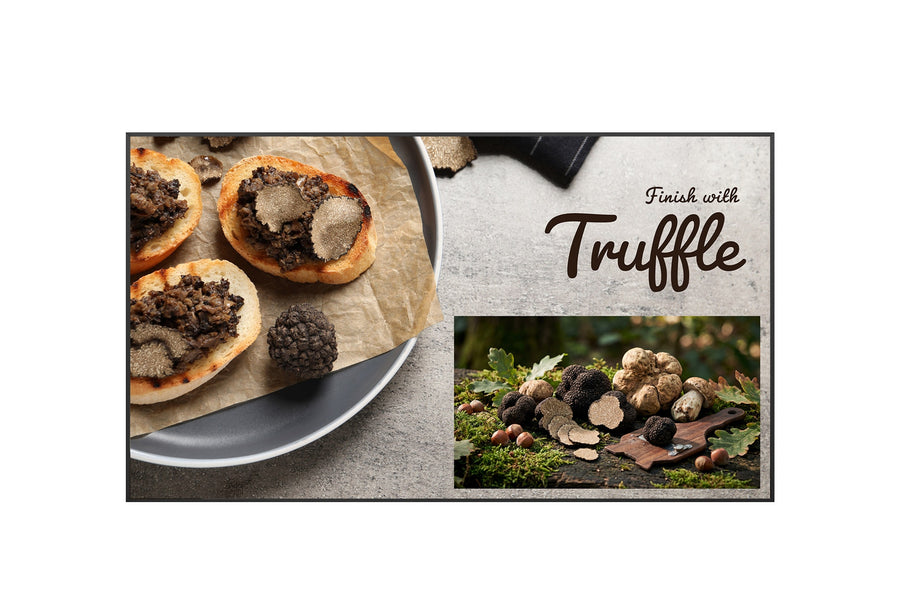

LG 65-inch UHD Digital Signage Display – 65UP5R-E
The LG 65UP5R-E is a 65-inch 4K UHD digital signage display with an ADS panel, 500 nits typical brightness and built-in webOS 8.0. It suits retail, corporate and hospitality screens that are scheduled and managed centrally. Procure.ae supplies the LG 65UP5R-E in the UAE with quotes, delivery and installation.
The LG 65UP5R-E shows 3840 x 2160 (4K UHD) resolution on a 65-inch 16:9 ADS panel. Typical brightness is 500 nits and the typical contrast ratio is 1,200:1, with a dynamic contrast rating of 1,000,000:1. The colour gamut is BT.709 95% with 1.07 billion colours, and response time is 8 ms (grey to grey). The display runs webOS 8.0 with built-in Wi-Fi and Bluetooth, 32 GB of internal eMMC storage and two 10 W speakers, and it is rated for 24/7 operation.
The 65UP5R-E suits lobbies, retail floors and meeting areas where content is scheduled and monitored remotely. The manufacturer lists support for SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud, along with Crestron Connected and Wake on LAN for building control. Video inputs include two HDMI and one DisplayPort, with RS232C and LAN control and a 300 x 300 mm VESA interface. Compared with the 65US5P-E, which runs webOS 6.0 and has a 1,100:1 typical contrast ratio, this model runs webOS 8.0 and lists 1,200:1.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- webOS 8.0 platform
- 4K UHD panel
- Wide colour gamut
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
Runs webOS 8.0 with built-in Wi-Fi and Bluetooth.
02
4K UHD panel
3840 x 2160 resolution on a 65-inch ADS panel with 500 nits typical brightness.
03
Wide colour gamut
BT.709 95% colour gamut with 1.07 billion colours.
04
Built-in speakers
Two built-in 10 W speakers for audio output.
05
Built-in sensors
Auto brightness, temperature and acceleration (gyro) sensors.
06
Content management
SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud are listed as supported.
07
Multi-screen layouts
PIP, 4-way PBP, tile mode settings and video tags for multi-zone content.
08
Control and power
RS232C, RJ45 LAN and IR input, Wake on LAN and 0.5 W power-off consumption.
Specifications
36 specificationsGeneral
CompatibilitySuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Crestron Connected
Key FeatureswebOS 8.0, SuperSign CMS compatible, built-in Wi-Fi and Bluetooth, 10 W x 2 speakers, auto brightness sensor, 4-way PBP, tile mode, Wake on LAN
Model65UP5R-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, IR/light sensor receiver and magnetic sheets (EU/EK only)
Display
Aspect Ratio16:9
Bezel SizeEven bezel 11.4 mm
Brightness500 nits
Color Depth1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 8.0
Storage32 GB (eMMC)
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, RS232C In/Out, RJ45 (LAN) In/Out, IR In, USB 3.0 × 1, USB 2.0 × 1, Audio Out
Wi-FiBuilt-in
Power
Power Consumption91 W (smart energy saving at 70%)
Standby Power0.5 W
Physical
ColorBlack
Dimensions1459.0 x 835.0 x 29.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight21.1 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ErP, Energy Star, ePEAT (US only)
IP RatingIP5X
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 65UP5R-E?
The LG 65UP5R-E is a 65-inch UHD digital signage display with an ADS panel, 3840 x 2160 resolution, 500 nits typical brightness and built-in webOS 8.0. It supports portrait and landscape orientation.
Does the LG 65UP5R-E have built-in Wi-Fi?
Yes. The manufacturer lists built-in Wi-Fi and Bluetooth, along with 32 GB of internal eMMC storage for the display's software and content. Built-in Wi-Fi and Bluetooth are listed as YES, so no separate adapter is needed.
Can the LG 65UP5R-E be managed remotely?
Yes. The display supports SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud, plus RJ45 LAN control, RS232C serial control and Wake on LAN. Crestron Connected and SNMP are also listed.
What VESA mount does the LG 65UP5R-E use?
The LG 65UP5R-E uses a 300 x 300 mm VESA standard mount interface. The head weighs 21.1 kg and measures 1459.0 x 835.0 x 29.7 mm, so the mount should be rated for that weight and size.
Is the LG 65UP5R-E rated for 24/7 operation?
Yes. The manufacturer lists operation hours as 24/7, with an operating temperature of 0 to 40 °C and humidity of 10% to 80%. The display is listed for continuous 24/7 use, and smart energy saving lists 91 W at the 70% setting.
Can I buy the 65UP5R-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
