LG 65UH5E 65-inch UHD digital signage displayLG
Digital SignageSKU 65UH5E

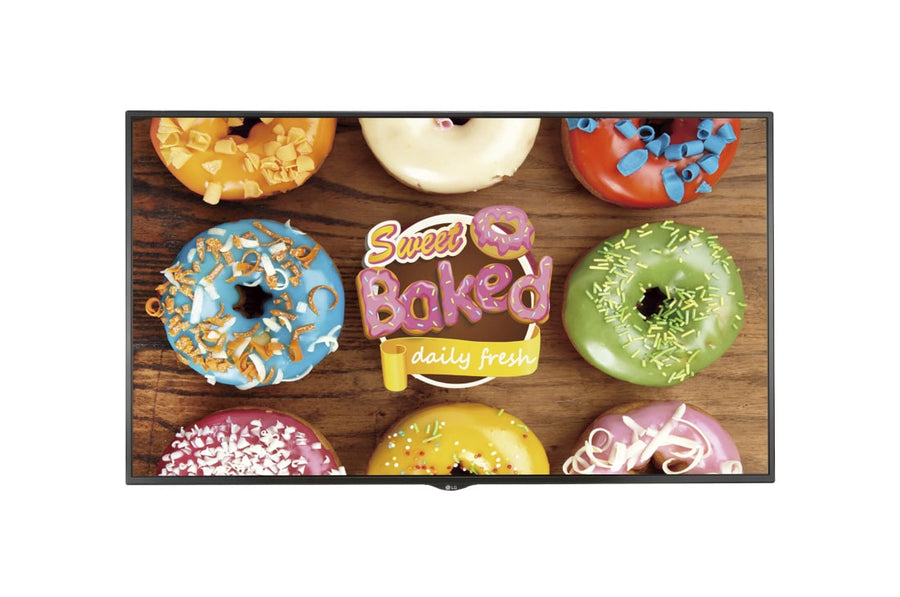

LG 65-inch 500-nit UHD Digital Signage Display – 65UH5E

The LG 65UH5E is a 65-inch UHD digital signage display with 500 nits of typical brightness and a 60 Hz refresh rate. It is built for lobbies, retail walls and information screens, and it works with SuperSign CMS and SuperSign Control software. Procure.ae supplies LG signage displays in the UAE and can confirm availability of this model on request.

The 65UH5E (also listed as 65UH5E-B.AMA) has a native 3840 x 2160 (UHD) resolution and 500 cd/m² typical brightness on a 65-inch screen, with a 60 Hz refresh rate. The bezels measure 12.1 mm at the top, 12.6 mm at the sides and 15.7 mm at the bottom. The display measures 1,458.6 x 848.9 x 40.1 mm and weighs 26 kg, or 32.5 kg packed. It mounts on a 300 x 300 mm VESA interface. Typical power consumption is 140 W, with a maximum of 200 W.

The 65UH5E supports SuperSign CMS for content management and SuperSign Control and Control+ for monitoring, and it is OPS-type compatible. It has RS232C in and out and an RJ45 LAN in port for control, plus an IR input. The operating range is 0 to 40 °C at 10% to 80% humidity, and the manufacturer lists CB / NRTL safety certification. The box includes an HDMI cable, a remote controller and a phone to RS232C adapter.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
UHD Digital Signage Display
  • UHD at 500 nits
  • 60 Hz refresh
  • External control
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
UHD at 500 nits
3840 x 2160 native resolution at 500 cd/m² typical brightness.
02
60 Hz refresh
A 60 Hz refresh rate on the UHD panel.
03
External control
RS232C in and out, RJ45 LAN in and IR in for control.
04
SuperSign software
SuperSign CMS for content and SuperSign Control and Control+ for monitoring.
05
OPS compatible
Compatible with OPS-type media players.
06
Power rating
Typical 140 W and maximum 200 W power consumption.
07
Slim cabinet
40.1 mm overall depth for a 65-inch screen.
08
Operating range
Operates from 0 to 40 °C at 10% to 80% humidity.

Specifications

20 specifications
General
Key Features4K UHD panel, 500 nits, 60 Hz refresh, RS232C and RJ45 control, IR input, SuperSign CMS, SuperSign Control and Control+, OPS compatible
Model65UH5E
TypeUHD Digital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, HDMI cable, regulation book, phone to RS232C adapter
Display
Bezel Size12.1 mm (top), 12.6 mm (sides), 15.7 mm (bottom)
Brightness500 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotCompatible
PortsRS232C In × 1, RS232C Out × 1, RJ45 LAN × 1, IR In × 1
Power
Power Consumption140 W (typical) / 200 W (maximum)
Power SourceBuilt-in power supply
Physical
Dimensions1458.6 x 848.9 x 40.1 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight26 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC

Downloads

Manufacturer documents for the LG 65-inch 500-nit UHD Digital Signage Display – 65UH5E — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What resolution and brightness does the LG 65UH5E have?
It has a native 3840 x 2160 (UHD) resolution and 500 cd/m² typical brightness on a 65-inch screen. The refresh rate is 60 Hz. The manufacturer's specifications do not state a contrast ratio for this model.
Can the LG 65UH5E be mounted on a VESA bracket?
Yes. It has a 300 x 300 mm VESA mount interface and weighs 26 kg, so use a bracket rated for that weight. Confirm the mount with Procure.ae before installation.
Does the LG 65UH5E work with SuperSign CMS?
Yes. The manufacturer lists SuperSign CMS for content management and SuperSign Control and Control+ for monitoring. The display is also OPS-type compatible, so a media player can be added. Procure.ae can also advise on mounting and content setup for your site.
How much power does the LG 65UH5E use?
Typical consumption is 140 W and maximum consumption is 200 W. The manufacturer lists Smart Energy Saving at 98 W, and the display operates between 0 and 40 °C. Procure.ae can also advise on mounting and content setup for your site.
Can I buy the 65UH5E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
