LGDigital SignageSKU 55UP5R-E

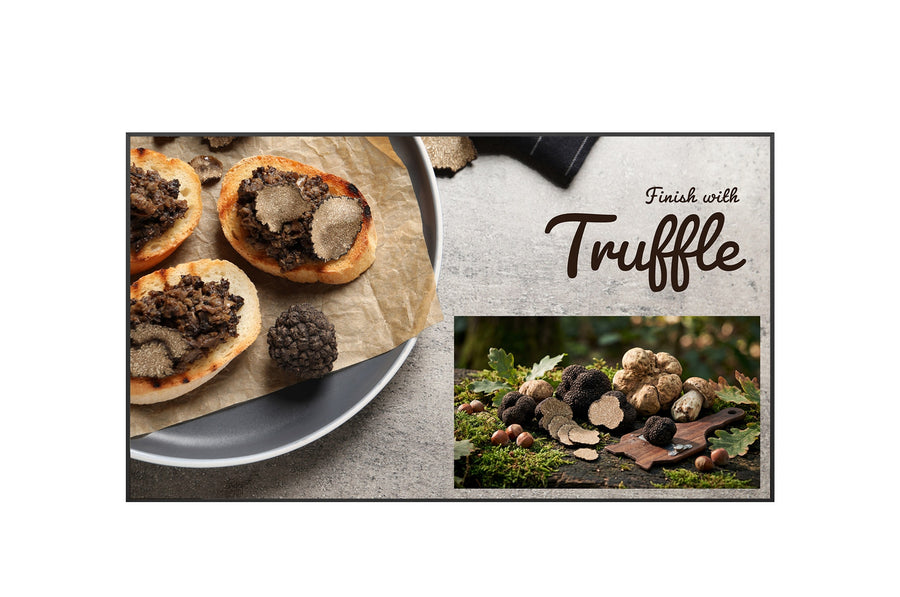

LG 55-inch UHD webOS Digital Signage Display – 55UP5R-E
The LG 55UP5R-E is a 55-inch 4K UHD digital signage display running webOS 8.0, with 500 nits of typical brightness and a DisplayPort input. It suits retail, corporate and hospitality screens and supports SuperSign CMS and Crestron Connected. Procure.ae supplies the LG 55UP5R-E in the UAE.
The 55UP5R-E has a 3840 x 2160 (UHD) resolution on a 55-inch ADS panel with 500 nits typical brightness, a 1,200:1 typical contrast ratio and a dynamic contrast ratio of 1,000,000:1. It covers BT.709 95% colour gamut with 1.07 billion colours, and has an 8 ms response time at 60 Hz. Viewing angles are 178 degrees horizontal and vertical. The display is rated for 24/7 operation and runs in portrait or landscape. Its built-in speakers deliver 10 W × 2.
The display runs webOS 8.0 with 32 GB of eMMC internal memory. Its ports include HDMI × 2, a DisplayPort input with HDCP 2.2/1.4, RS232C in and out, RJ45 LAN in and out, IR in, USB 3.0 and USB 2.0. It supports PIP and 4-way PBP layouts, SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud, and mounts on a 300 x 300 mm VESA interface. Compared with the 55UL5Q-M, it uses an edge backlight and has 32 GB of storage rather than 8 GB.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
UHD Digital Signage Display
- webOS 8.0 platform
- 500 nits, BT.709 95%
- PIP and PBP
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
webOS 8.0 with 32 GB of eMMC internal memory.
02
500 nits, BT.709 95%
500 nits typical brightness and BT.709 95% colour gamut.
03
PIP and PBP
PIP and 4-way PBP multi-screen layouts.
04
DisplayPort input
DisplayPort input with HDCP 2.2/1.4, alongside two HDMI inputs.
05
Portrait and landscape
Rotates between portrait and landscape for vertical signage.
06
SuperSign software
SuperSign CMS, Control+, WB and Cloud for content and monitoring.
07
Built-in Wi-Fi and Bluetooth
Wi-Fi and Bluetooth are built in, with an RJ45 LAN port.
08
Speaker and sensors
Built-in 10 W × 2 speaker, temperature sensor and auto brightness sensor.
Specifications
35 specificationsGeneral
Key FeatureswebOS 8.0, 500 nits ADS panel, DisplayPort input, PIP and PBP, SuperSign CMS, Crestron Connected, Built-in Wi-Fi and Bluetooth, Auto brightness sensor
Model55UP5R-E
TypeUHD Digital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, regulation book, phone to RS232C adapter, IR/light sensor receiver and magnetic sheets (EU/EK only)
Display
Aspect Ratio16:9
Bezel Size11.4 mm (even bezel)
Brightness500 nits
Color Depth1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,200:1 (typical)
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemwebOS 8.0
Storage32 GB eMMC
Audio
Speaker Output10 W × 2
Connectivity
ConnectivityBuilt-in Wi-Fi and Bluetooth; RJ45 LAN in and out
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, RS232C In × 1, RS232C Out × 1, RJ45 LAN In/Out × 1 each, IR In × 1, USB 3.0 × 1, USB 2.0 × 1, Audio Out × 1
Power
Power Consumption72 W (energy saving mode)
Standby Power0.5 W (power off)
Physical
ColorBlack
Dimensions1240.1 x 711.9 x 29.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltUp to 15° facedown (at 40 °C)
VESA Mount300 x 300 mm
Weight14.3 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC
IP RatingIP5X
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the LG 55UP5R-E have?
It has a 3840 x 2160 (UHD) resolution on a 55-inch ADS panel with 500 nits typical brightness. The typical contrast ratio is 1,200:1, the dynamic contrast ratio is 1,000,000:1, and the response time is 8 ms at 60 Hz.
Can the LG 55UP5R-E be mounted in portrait orientation?
Yes. It supports portrait and landscape orientation and has a 300 x 300 mm VESA mount interface. The manufacturer lists a facedown tilt of up to 15 degrees at 40 °C. Confirm the bracket with Procure.ae before installation.
Does the LG 55UP5R-E work with SuperSign CMS or Crestron?
Yes. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Crestron Connected support. It also has RS232C, RJ45 LAN and IR inputs for integration with AV and building systems.
What operating system does the LG 55UP5R-E use?
It runs webOS 8.0 with 32 GB of internal eMMC memory. Local content scheduling, group management, Video Tag, Play via URL and Screen Share are listed as built-in features. Procure.ae can also advise on mounting and content setup for your site.
Can I buy the 55UP5R-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
