LGMeeting Room SolutionsSKU 49SM5KB

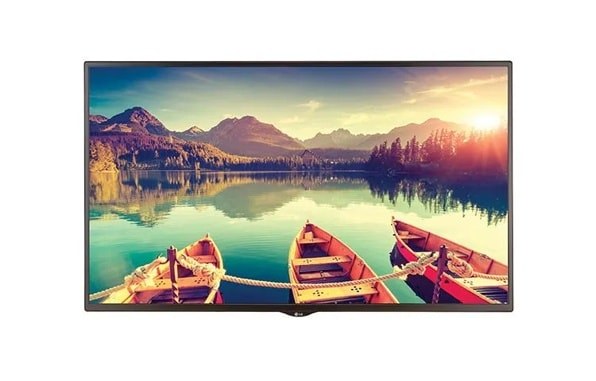

LG 49-inch Full HD Standard Signage Display – 49SM5KB
The LG 49SM5KB (49SM5KB-B.AMA) is a 49-inch Full HD standard signage display rated at 450 nits, with DisplayPort, DVI-D and RGB inputs, RS-232C and RJ45 control, and OPS type compatibility. It suits retail, hospitality and corporate signage. Procure.ae, an authorised LG reseller in Dubai, supplies the 49SM5KB across the UAE.
The 49SM5KB has a 1,920 x 1,080 (Full HD) panel with a brightness of 450 cd/m². The bezel is 11.9 mm at the top, 12.4 mm on the left and right and 15.5 mm at the bottom. Video inputs are DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB, and a DisplayPort output allows another display to be connected. A USB 3.0 port and an SDHC or full-size SD card slot are included.
The display is OPS type compatible and lists MP500 and MP700 external media players as attachable. SuperSign-w lite and SuperSign-c content software are listed as supported, and RS-232C in and out, RJ45 and a pixel sensor connection handle external control. The 49SM5KB measures 1,102.2 x 638.5 mm, is 54 mm deep (38.6 mm at the thinnest part), weighs 14.3 kg (head) and uses a 300 x 300 mm VESA pattern.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Standard Signage Display
- Full HD Panel
- Brightness
- Video Inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD Panel
1,920 x 1,080 resolution on a 49-inch screen.
02
Brightness
rated at 450 cd/m².
03
Video Inputs
DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB, with a shared RGB/DVI audio input.
04
DisplayPort Output
one DP out (SST, DP 1.2a) and one audio output.
05
OPS and Media Players
OPS type compatible, with MP500 and MP700 media players listed as attachable.
06
External Control
RS-232C in and out, RJ45 and pixel sensor connections.
07
USB and SD
one USB 3.0 port and one SDHC / full-size SD card slot.
08
Mounting
300 x 300 mm VESA interface, 14.3 kg head weight.
Specifications
23 specificationsGeneral
CompatibilitySuperSign-w lite, SuperSign-c; MP500 / MP700 external media players
Key Features49-inch Full HD, 450 nits, DisplayPort and DVI-D inputs, DisplayPort output, RS-232C and RJ45 control, USB 3.0, SD card slot, OPS compatible
Model49SM5KB
TypeStandard Signage Display
What's in the BoxRemote control (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C gender, memory cover
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top), 12.4 mm (left/right), 15.5 mm (bottom)
Brightness450 nits
Resolution1920 x 1080 (Full HD)
Screen Size49 inch
Audio
Audio InAudio In × 1 (RGB/DVI)
Audio OutAudio Out × 1
DisplayPortDisplayPort In × 1 (HDCP 1.3), DisplayPort Out × 1 (SST, DP 1.2a)
Connectivity
EthernetRJ45 × 1 (external control)
OPS SlotOPS type compatible
PortsDisplayPort In × 1, DVI-D In × 1, RGB In × 1, DisplayPort Out × 1, Audio In/Out × 1 each, USB 3.0 × 1, SD card × 1, RJ45 × 1, RS-232C In/Out
SD Card SlotSDHC / full-size SD × 1
Serial PortRS-232C In × 1, RS-232C Out × 1
USB PortsUSB 3.0 × 1
VGA InputAnalog RGB × 1
Physical
Dimensions1102.2 x 638.5 x 54 mm (38.6 mm at thinnest part)
VESA Mount300 x 300 mm
Weight14.3 kg (head)
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the LG 49SM5KB offer?
The LG 49SM5KB offers 1,920 x 1,080 (Full HD) resolution on a 49-inch panel with a brightness of 450 cd/m². Its dimensions are 1,102.2 x 638.5 x 54 mm, and the head weighs 14.3 kg. The bezel is 11.9 mm at the top, 12.4 mm on the left and right, and 15.5 mm at the bottom.
Does the 49SM5KB have an HDMI input?
The manufacturer's specifications list DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs and do not list HDMI. A shared audio input for RGB and DVI, a DisplayPort output and an audio output are also fitted. Confirm source-device connections with Procure.ae before ordering.
Can the 49SM5KB use an OPS module or media player?
Yes. The 49SM5KB is OPS type compatible, and the manufacturer's specifications list MP500 and MP700 external media players as attachable. SuperSign-w lite and SuperSign-c content software are also listed as supported for scheduling and managing content.
What VESA pattern does the 49SM5KB use?
The 49SM5KB uses a 300 x 300 mm VESA mount interface. The head weighs 14.3 kg, so the wall and mount must be rated accordingly. Procure.ae can arrange wall-mount installation across the UAE.
How can the 49SM5KB be managed remotely?
The 49SM5KB offers RS-232C in and out, an RJ45 port and a pixel sensor connection for external control, and SuperSign-w lite and SuperSign-c software are listed as supported. Procure.ae can advise on control setup and arrange installation of the 49SM5KB across the UAE.
