LGMeeting Room SolutionsSKU 43SM5KB

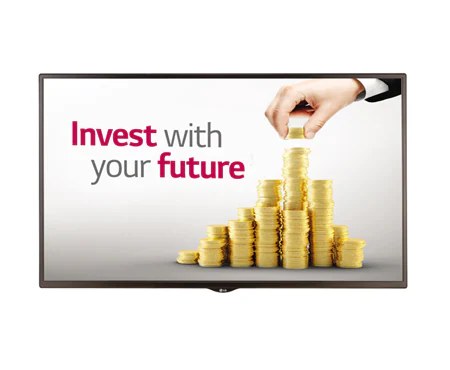

LG 43-inch Full HD Performance Signage Display – 43SM5KB
The LG 43SM5KB (43SM5KB-B.AMA) is a 43-inch Full HD performance signage display with 450 cd/m² brightness, DisplayPort, DVI-D and RGB inputs, RS-232C and RJ45 control, and OPS type compatibility. It suits shops, offices and venues running scheduled content. Procure.ae, an authorised LG reseller in Dubai, supplies the 43SM5KB in the UAE.
The 43SM5KB combines a 1,920 x 1,080 (Full HD) panel with 450 cd/m² brightness. The bezel measures 11.9 mm at the top, left and right and 18 mm at the bottom, and the body is 54 mm deep at its thickest point and 38.6 mm at the thinnest. Inputs are DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB, with a DisplayPort output for chaining another screen, plus USB 3.0 and an SD card slot.
The manufacturer's specifications list OPS type compatibility and support for MP500 and MP700 external media players, and name SuperSign-w lite and SuperSign-c as supported content software. Control is available over RS-232C in and out, RJ45 and a pixel sensor connection. The 43SM5KB weighs 10.0 kg (head), measures 969.6 x 563.9 mm and mounts on a 200 x 200 mm VESA pattern.
Screen Size
43 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Standard Signage Display
- Full HD Panel
- Brightness
- Video Inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD Panel
1,920 x 1,080 resolution on a 43-inch screen.
02
Brightness
rated at 450 cd/m².
03
Video Inputs
DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs.
04
DisplayPort Output
one DP out (SST, DP 1.2a) for connecting another display.
05
Media Player Support
MP500 and MP700 external media players can be attached, and the display is OPS type compatible.
06
External Control
RS-232C in and out, RJ45 and pixel sensor connections.
07
USB and SD
one USB 3.0 port and one SDHC / full-size SD card slot.
08
Slim Profile
54 mm deep, 38.6 mm at the thinnest part, with a 10.0 kg head weight.
Specifications
23 specificationsGeneral
CompatibilitySuperSign-w lite, SuperSign-c; MP500 / MP700 external media players
Key Features43-inch Full HD, 450 nits, DisplayPort and DVI-D inputs, DisplayPort output, RS-232C and RJ45 control, USB 3.0, SD card slot, OPS compatible
Model43SM5KB
TypeStandard Signage Display
What's in the BoxRemote control (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C gender, memory cover
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top/left/right), 18 mm (bottom)
Brightness450 nits
Resolution1920 x 1080 (Full HD)
Screen Size43 inch
Audio
Audio InAudio In × 1 (RGB/DVI)
Audio OutAudio Out × 1
DisplayPortDisplayPort In × 1 (HDCP 1.3), DisplayPort Out × 1 (SST, DP 1.2a)
Connectivity
EthernetRJ45 × 1 (external control)
OPS SlotOPS type compatible
PortsDisplayPort In × 1, DVI-D In × 1, RGB In × 1, DisplayPort Out × 1, Audio In/Out × 1 each, USB 3.0 × 1, SD card × 1, RJ45 × 1, RS-232C In/Out
SD Card SlotSDHC / full-size SD × 1
Serial PortRS-232C In × 1, RS-232C Out × 1
USB PortsUSB 3.0 × 1
VGA InputAnalog RGB × 1
Physical
Dimensions969.6 x 563.9 x 54 mm (38.6 mm at thinnest part)
VESA Mount200 x 200 mm
Weight10.0 kg (head)
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the LG 43SM5KB?
The LG 43SM5KB has a 43-inch panel with 1,920 x 1,080 (Full HD) resolution and 450 cd/m² brightness. It measures 969.6 x 563.9 x 54 mm, weighs 10.0 kg (head) and has an 11.9 mm bezel at the top, left and right and an 18 mm bezel at the bottom.
Which inputs and outputs does the 43SM5KB have?
It has DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs, a shared audio input for RGB and DVI, a DisplayPort output (SST, DP 1.2a) and an audio output. USB 3.0 and an SD card slot are also fitted. The manufacturer's specifications do not list HDMI.
Can the 43SM5KB use an external media player?
Yes. The manufacturer's specifications list MP500 and MP700 external media players as attachable, and the display is OPS type compatible. SuperSign-w lite and SuperSign-c content software are also listed as supported.
What VESA pattern does the 43SM5KB use?
The 43SM5KB uses a 200 x 200 mm VESA mount interface. The head weighs 10.0 kg and the depth is 54 mm, or 38.6 mm at the thinnest part. Procure.ae can arrange wall-mount installation for this display across the UAE.
Can several 43SM5KB displays be controlled over a network?
Yes. Each unit has RS-232C in and out, an RJ45 port and a pixel sensor connection for external control. Procure.ae can advise on control setup and arrange installation for multi-screen projects across the UAE.
