LGDigital SignageSKU 43UH5F

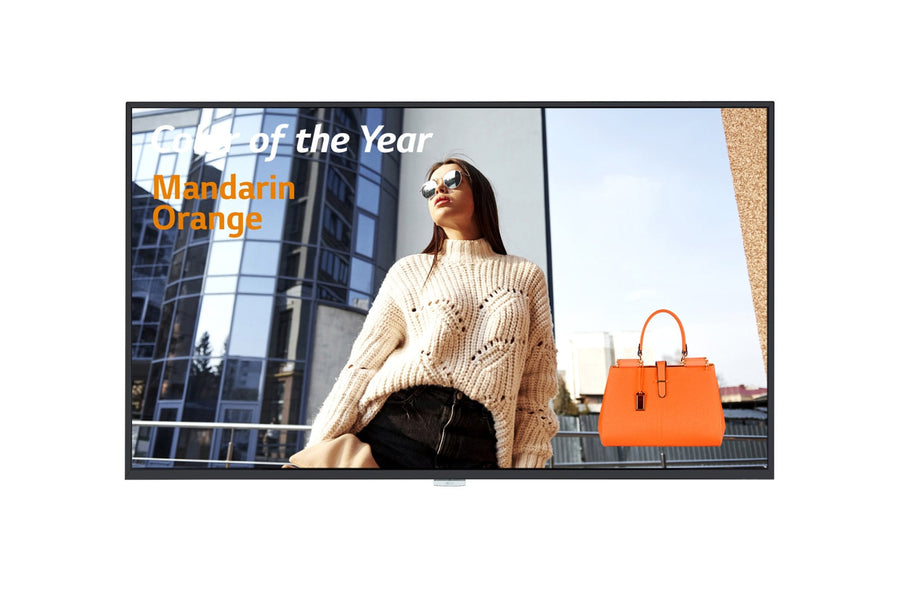

LG 43-inch 4K UHD Digital Signage Display – 43UH5F
The LG 43UH5F is a 43-inch 4K UHD digital signage display with an IPS panel, 500 nits brightness and 24-hour operation. It suits offices, retail and public spaces that need 4K content in portrait or landscape. Procure.ae supplies LG signage displays in the UAE and can confirm current availability of this model.
The LG 43UH5F, also listed as 43UH5F-B and 43UH5F-B.AMA, uses a 3840 x 2160 IPS panel with 500 nits typical brightness, a 1,100:1 contrast ratio and 178 x 178 degree viewing angles. Its 8 ms response time (G to G) is listed for moving images. The panel supports portrait and landscape orientation and is rated for 24-hour operation. Power draw is 75 W typical and 110 W maximum, with smart energy saving at 52.5 W. The manufacturer lists a typical lifetime of 50,000 hours.
The 43UH5F fits lobbies, retail floors and office walls where 4K content must run in portrait or landscape. It takes SuperSign CMS and SuperSign Control or Control+ for content management and control. It is OPS-type compatible, with RS-232C in and out, RJ-45 LAN in and IR in for system control. Signage 365 Care is listed as available. It mounts on a 200 x 200 mm VESA pattern, with an 8.4 mm side bezel and a 14.4 mm bottom bezel.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
- 4K UHD IPS panel
- 500 nits brightness
- 24-hour operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 native resolution in a 16:9 format.
02
500 nits brightness
500 nits typical brightness with a 1,100:1 contrast ratio.
03
24-hour operation
Rated for 24-hour operation.
04
Portrait and landscape
Supports both orientations.
05
SuperSign management
SuperSign CMS and SuperSign Control or Control+ are listed.
06
RS-232C and LAN control
RS-232C in and out and RJ-45 LAN in for control.
07
Face-down tilt
Up to 30 degrees, under listed temperature and humidity conditions.
08
IP5x rating
Listed IP rating of IP5x.
Specifications
28 specificationsGeneral
Key Features4K UHD IPS panel, 500 nits brightness, 24-hour operation, portrait and landscape use, SuperSign CMS and Control, Signage 365 Care, RS-232C and LAN control, face-down tilt up to 30 degrees
Model43UH5F
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, HDMI cable, regulation book, phone to RS-232C gender
Display
Aspect Ratio16:9
Bezel Size8.4 mm (sides), 14.4 mm (bottom)
Brightness500 nits (typical)
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size43 inch
Viewing Angle178° (H) x 178° (V)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (OPS-type compatible)
PortsRS-232C in/out, RJ-45 (LAN) in, IR in
Power
Power Consumption75 W typical, 110 W maximum; 52.5 W smart energy saving
Power SourceBuilt-in power supply
Physical
Dimensions962.5 x 568.0 x 39.9 mm (display only)
Duty Cycle24 hours
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltFace-down, max 30°
VESA Mount200 x 200 mm
Weight11.2 kg (display only)
Compliance
CertificationsCB, NRTL, FCC Class A, CE, KC, Energy Star 8.0
IP RatingIP5X
Downloads
Manufacturer documents for the LG 43-inch 4K UHD Digital Signage Display – 43UH5F — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 43UH5F a 4K display?
Yes. It has a 3840 x 2160 native resolution (UHD) on a 43-inch IPS panel. The manufacturer lists the panel at 500 nits typical brightness, 1,100:1 contrast and an 8 ms response time (G to G).
Can the 43UH5F be mounted in portrait?
Yes. The manufacturer lists portrait and landscape orientation. Check the bracket and the 200 x 200 mm VESA pattern before mounting, and note that face-down tilt is listed at up to 30 degrees under set temperature and humidity conditions.
What operating conditions does the 43UH5F support?
The 43UH5F is rated for 0 to 40 °C and 10% to 80% humidity. It runs on 100 to 240 V AC at 50/60 Hz, and its IP rating is IP5x. Keep the display within those limits in hot or dusty installations.
Can the 43UH5F integrate with a control system?
Yes. It has RS-232C in and out, an RJ-45 LAN input and an IR input. SuperSign CMS and SuperSign Control or Control+ are listed for content and control. Procure.ae can confirm the integration details for your system.
Can I buy the 43UH5F in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
