VSYS VCM-M0748DS Motorised Ceiling TV Mount for 43"–86" Displays, 45 kg
- Model: VCM-M0748DS
- SKU: VCM-M0748DS
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VCM-M0748DS is a motorised ceiling mount for 43"–86" displays weighing up to 45 kg, available in the UAE from Procure.ae. Ceiling mounting is often the only option in a room with glazed walls, structural columns or a floor plan that cannot lose... See More
The VSYS VCM-M0748DS is a motorised ceiling mount for 43"–86" displays weighing up to 45 kg, available in the UAE from Procure.ae.

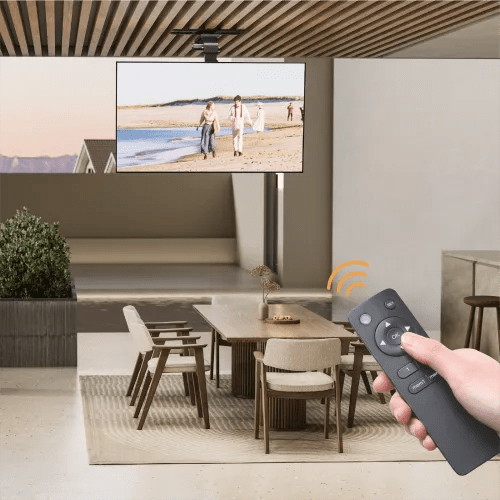

Ceiling mounting is often the only option in a room with glazed walls, structural columns or a floor plan that cannot lose a metre to a display stand. The problem with a fixed ceiling mount is that the screen stays in the sightline all day. The VCM-M0748DS answers that with powered movement: an electric push-rod motor tilts and swivels the panel on demand, and a flip-down folding action lifts it back toward the ceiling when the room is being used for something else.

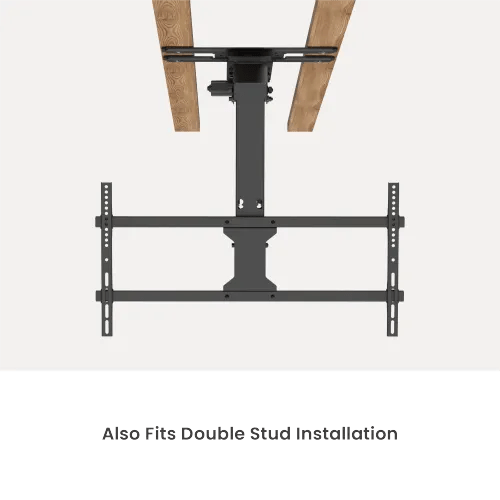

Motorised tilt runs from 0 to minus 75 degrees and swivel covers plus 90 to minus 90 degrees, with a manual screen level adjustment of plus or minus 2 degrees for final squaring. The mount is driven from an RF remote, the Tuya smartphone app, or voice commands through Amazon Alexa or Google Home. A collision-avoidance sensor stops the motor if the swivel path is blocked. The ceiling plate fixes to a solid slab or dual joists at 406 mm spacing, the drop is 177 mm, and the motor takes standard AC power through a 3 m cord.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Electric push-rod motor drives tilt from 0 to minus 75 degrees, so the screen can be angled down to seated eye level and returned without a ladder.
- Powered swivel of plus 90 to minus 90 degrees turns one ceiling-hung display toward either side of a room.
- Flip-down foldable design lifts the panel toward the ceiling between sessions, recovering headroom and sightlines.
- Three control paths: RF remote, Tuya app, or voice through Amazon Alexa and Google Home.
- Collision avoidance halts the motor when an obstruction is detected in the swivel path, protecting the display and anything near it.
- Rated for panels up to 45 kg and strength tested to four times that load.
- VESA 200 x 100 mm to 800 x 400 mm, which covers most 43" to 86" flat and curved panels.
- Manual screen levelling of plus or minus 2 degrees for squaring against the ceiling line.
- 177 mm drop from the ceiling plate, keeping the assembly compact in rooms with limited height.
- Certified to CE, ErP, FCC, RoHS and EU cybersecurity requirements, which matters for tendered and government projects.
Technical Specifications
| Model | VCM-M0748DS |
| Mount Type | Motorised ceiling TV mount |
| Screen Size Range | 43" – 86" |
| Load Capacity | Up to 45 kg |
| VESA Compatibility | 200 x 100 mm to 800 x 400 mm |
| Motorised Tilt | 0 to minus 75 degrees |
| Motorised Swivel | Plus 90 to minus 90 degrees |
| Screen Levelling | Plus 2 to minus 2 degrees |
| Drive | Electric push-rod motor |
| Control | RF remote, Tuya app, Amazon Alexa or Google Home voice |
| Safety | Collision-avoidance stop |
| Ceiling Drop | 177 mm |
| Power | Standard AC supply, 3 m power cord included |
| Material | Steel, aluminium and plastic |
| Mounting Interface | Solid ceiling or dual joists at 406 mm spacing |
| Certifications | CE, ErP, EU Cybersecurity, FCC, RoHS, strength tested to four times rated load |
| Package Contents | Motorised ceiling mount, ceiling plate, RF remote control, mounting hardware bag, power cord, installation guide |
Ideal for: boardrooms and training rooms with glazed walls, classrooms and lecture theatres, hotel lobbies and restaurants, retail floors with no usable wall, hospital and clinic waiting areas, and smart residential fit-outs across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VCM-M0748DS Motorised Ceiling TV Mount for 43"–86" Displays, 45 kg |
| Mounting Type | Ceiling mount |
| Screen Size Support | Flat or curved displays from 43 inch to 86 inch |
| Product Type | Motorised ceiling TV mount |
| Screen Size Range | 43 inch to 86 inch |
| Load Capacity | Up to 45 kg |
| VESA Compatibility | 200 x 100 mm to 800 x 400 mm |
| Movement | Motorised tilt and swivel, flip-down folding, manual screen levelling |
| Tilt | 0 to minus 75 degrees, motorised |
| Swivel | Plus 90 to minus 90 degrees, motorised |
| Drop Range | 177 mm ceiling drop |
| Material and Finish | Steel, aluminium and plastic |
| Mounting Interface | Ceiling plate for solid ceiling or dual joists at 406 mm spacing |
| Testing and Certification | CE, ErP, EU Cybersecurity, FCC, RoHS, strength tested to four times rated load |
| In the Box | Motorised ceiling mount, ceiling plate, RF remote control, mounting hardware bag, power cord, installation guide |
| MPN | VCM-M0748DS |
| Model | VCM-M0748DS |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VCM-M0748DS in the UAE?
Procure.ae supplies the VSYS VCM-M0748DS across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How is the motorised movement controlled?
Three ways. An RF remote is supplied in the box, the Tuya smartphone app controls it over the network, and voice commands work through Amazon Alexa or Google Home once the mount is connected.
How far does it actually move?
Powered tilt runs from 0 to minus 75 degrees and powered swivel covers plus 90 to minus 90 degrees. There is also a manual plus or minus 2 degree levelling adjustment for squaring the screen against the ceiling.
Does it need power at the ceiling?
Yes. The motor runs from a standard AC supply and ships with a 3 m power cord, so a socket or fused spur must be available at or near the mounting point. Plan this with the electrical first fix.
What stops the screen hitting something when it turns?
A collision-avoidance sensor cuts the motor when it detects an obstruction in the swivel path. Combined with the 45 kg rating and four times load testing, that makes it viable for occupied rooms and public areas.
