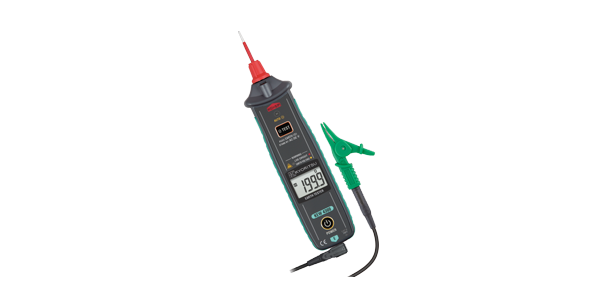

Kyoritsu Model 4300 Simplified Earth Tester
- SKU: 4300
Actual Stock Can Be Confirmed After Placing the Order.
New Simplified Earth Tester KEW 4300 is simplified earth resistance tester (based on 2-pole method) that can be used for various distribution lines and electrical appliances and it also can measure AC/DC voltage. (As for AC Voltages, true RMS values can be obtained.) 200/2000Ω... See More
New Simplified Earth Tester
KEW 4300 is simplified earth resistance tester (based on 2-pole method) that can be used for various distribution lines and electrical appliances and it also can measure AC/DC voltage. (As for AC Voltages, true RMS values can be obtained.)
-
200/2000Ω (2 ranges): auto-ranging.
-
Warning buzzer triggered at 100Ω or less.
-
LED lights up when a large earth voltage is detected.
-
Live circuit warning when 30V or higher voltage is detected. (KEW 4300 detects voltage even when measuring resistances.)
-
LED light for illuminating measurement points. (It turns on/off automatically in relation to the ambient brightness.)
-
Small test current (max 2mA) not triggering RCD.
No datasheet available.
