JBL AC2212/95-WH 12" 2-Way 250W Installation PA Loudspeaker (Each)

PRODUCT OVERVIEW

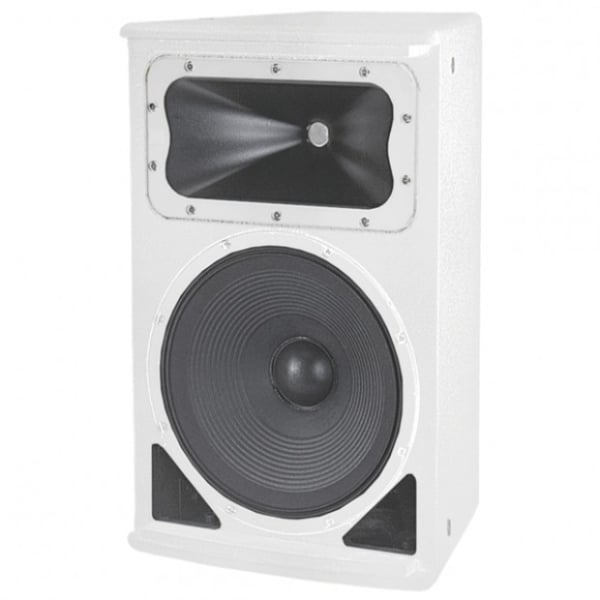

Ideal for fixed installation in houses of worship, theaters, gyms, and more, the JBL AC2212/95-WH passive 2-way installation PA loudspeaker offers versatile mounting options and consistent coverage. With a 12" woofer and a horn-loaded compression driver in a ported birch plywood cabinet, theAC2212/95 delivers a 55 Hz to 17 kHz frequency response and a long-term power rating of 250W RMS (1000W peak). The Progressive Transition waveguide yields a coverage pattern of 100° by 100° while keeping distortion low.

The AC2212/95-WH features Neutrik speakON and barrier strip inputs, which can be switched for bi-amp or passive operation. A host of M10 and M8 points on the cabinet accommodate a variety of suspension- or bracket-based mounting configurations.

1. Compact 2-way loudspeaker system for lecture halls, houses of worship, corporate learning centers, performing arts facilities, theaters, auditoriums, sports facilities, and more
2. PT (Progressive Transition) waveguide for 100° x 100° coverage, good pattern control, and low distortion
3. Long-term (100-hour) power rating of 250W continuous (1000W peak)
4. 12" low-frequency driver and 1.5" exit compression driver
5. High-slope passive crossovers minimize band overlap
6. Bi-amp/passive switchable
7. Rear-panel speakON and barrier strip input connectors; speakON wired in parallel with barrier strip for loop-thru connection
8. 15 M10 suspension points for flying, and four M8 points for bracket mounts such as the Omnimount (available separately)
9. Trapezoidal 11-ply birch plywood cabinet with a powder-coated, perforated, 14-gauge steel grille

Compact 2-Way Loudspeaker with 1 x 12" LF

AC2212/95-WH speakers are compact 2-way full-range loudspeaker systems comprised of one 300 mm (12 in) low-frequency driver and one voice-coil compression driver.

Features

• PT Progressive Transition™ Waveguide for good pattern control with low distortion.
• Bi-Amp / Passive Switchable.
• Optional U-Bracket Model MTU-4.
• For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed
  entertainment venues.
