Jabra Reach BYOD Extension – 8700-101

Jabra Reach BYOD Extension – 8700-101

The Jabra Reach 8700-101 is a single-cable BYOD extension for video conference rooms. It carries audio, video and content from any USB-C device to the room, supports displays up to 4K60 4:4:4 and works with all Jabra video bars. Procure.ae supplies the Jabra Reach across the UAE.

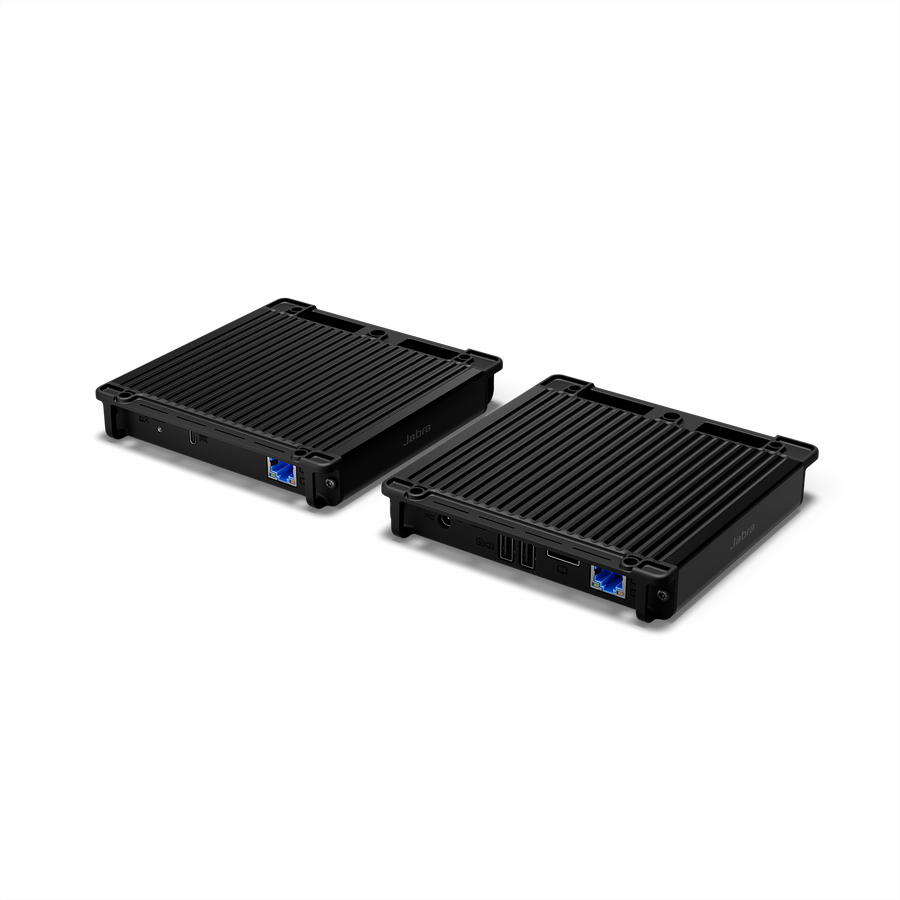

Jabra Reach uses one USB-C cable to extend bring-your-own-device (BYOD) access to every seat in a conference room. The Front of Room (RX) and Center of Room (TX) boxes are linked by an RJ45 HDBaseT connection. The manufacturer states it delivers lossless audio, video and content across any USB-C device, with content sharing over USB-C DP alt mode and HDCP media encryption. The Center of Room box has an optional USB-C power input rated 20 V / 100 W for laptop charging.

In BYOD rooms with PanaCast video bars, Jabra Reach extends BYOD to every seat at the table. In Android-based rooms configured for Microsoft Teams Rooms on Android or Zoom Rooms, hosts can choose to present through the meeting or through the room's peripherals. Devices are managed through Jabra Plus, the Jabra web console over HTTPS or Jabra Direct, and the units mount on a wall, table, display or grommet.

Resolution
Up to 4K60 4:4:4
Type
BYOD Extension System
Weight
302 g (RX), 297 g (TX)

Key features

01
Single-cable BYOD
One USB-C cable connects a laptop to room audio, video and screen sharing.
02
Full-room reach
Extends BYOD from the video bar to the far end of the table and the back of the room.
03
4K60 4:4:4 support
Supports display resolutions up to 4K60 4:4:4.
04
No adapters or drivers
Plug-and-play connection with no long USB runs, adapters or drivers.
05
Managed remotely
Managed through Jabra Plus, the Jabra web console over HTTPS or Jabra Direct.
06
Signed, encrypted firmware
Firmware updates are digitally signed and encrypted (NIST SHA-256).
07
Flexible mounting
Wall, table, display or grommet mounting options.

Specifications

General
CompatibilityJabra PanaCast 40 VBS, PanaCast U30, PanaCast 50/55 VBS, PanaCast 50, Huddly IQ, Speak2 75
Key FeaturesSingle-cable USB-C BYOD, 4K60 4:4:4, HDCP, Jabra Plus and web console management, signed and encrypted firmware
ModelReach
TypeBYOD Extension System
Display
ResolutionUp to 4K60 4:4:4
Performance
Storage Conditions-20 to 45 °C
Connectivity
ConnectivityRJ45 HDBaseT link between RX and TX boxes
HDMI Outputs1 x HDMI 2.0 (RX)
Input Voltage100–240 V AC, 12 V / 2 A
USB Ports2 x USB-A 2.0, 1 x USB-C 2.0 (RX); 1 x USB-C 2.0 with DP alt mode and PD (TX)
Physical
Dimensions134 x 24 x 135 mm (each box)
MountingWall, table, display, grommet
Operating Temperature0 to 35 °C
Weight302 g (RX), 297 g (TX)
Compliance
Warranty2 years
