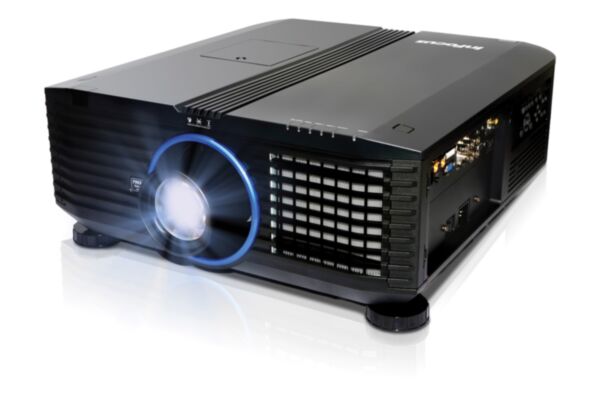

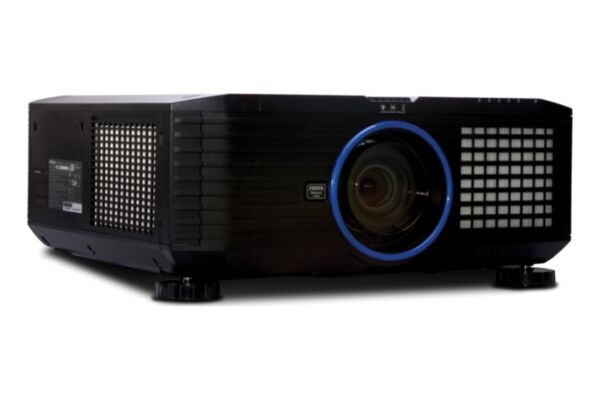

InFocus Projector IN5554L
- SKU: IN5554L
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Why choose an IN5554L projector? WXGA (1280 x 800) native widescreen resolution Up to 7000 lumens (with "Presentation" color wheel) Six lens options to suit your complex installation Two user-replaceable 6-segment color wheels for incredible color quality and versatility The latest 3G-SDI input... See More
OVERVIEW
Why choose an IN5554L projector?
- WXGA (1280 x 800) native widescreen resolution
- Up to 7000 lumens (with "Presentation" color wheel)
- Six lens options to suit your complex installation
- Two user-replaceable 6-segment color wheels for incredible color quality and versatility
- The latest 3G-SDI input for the highest resolution and picture quality
- Motorized lens shift, zoom and focus for ease of image placement
- 24/7 capable with dual liquid-cooled lamps

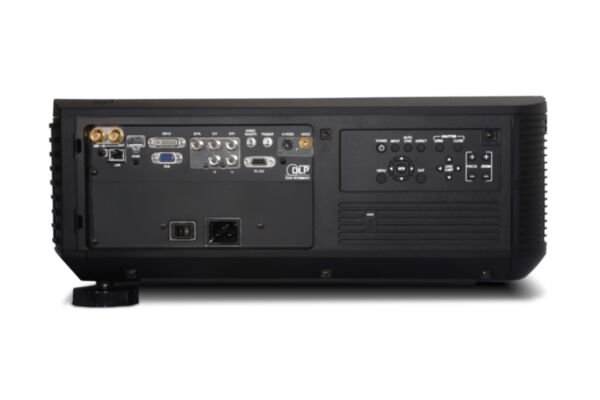

HD Connections
The IN5554L projector provides the inputs and outputs to meet the needs of today's digital content and automated room systems.
- 3G-SDI input (and output) provides more bandwidth to allow for higher resolution and frame rates associated with today's HD content
- HDMI projects HD-quality video and audio from a variety of sources
- DVI-D and 5 BNC inputs for additional reliable and high quality connections
- RS232 port to add to your room control system
- RJ45/LAN input for network control using Telnet protocol, plus remote access and control for administrators
Versatile for Many Applications
The IN5554L projector has the features and widescreen WXGA native resolution to meet the needs of a wide variety of applications.
- Lens shift memory lets you store zoom, focus and lens shift positions for multi-screen rooms and multi-resolution content
- Image warping for projecting on curved surfaces
- Image blending with on-board mixing lets you quickly line up and blend multiple IN5554L projectors to create one big, smooth image
- Picture-in-picture for showing two images side-by-side
- Dual liquid-cooled lamps for fail-safe 24/7 operation
- 360-degree projection for applications in auditoriums, visitor centers and museums
Six interchangeable lenses
The IN5554L widescreen projector offers six bayonet style lenses for tremendous installation flexibility. No lens is included with the projector, so you only pay for what you need. Plus, they are easily swapped in seconds
Features for Vivid Projection
The IN5554L projector is loaded with features to aid in installation and to produce the bright, vivid images needed for large image installations.
- Two user-replaceable color wheels (both included with the projector) provide incredible color accuracy and brightness customization
- Motorized lens shift lets you move the image 9:1 vertically and 4:6 horizontally to assist in demanding installations
- Built-in test patterns: Align, Map, and Color Check
- Adaptive contrast lets you monitor the black level and the average picture level of your signal
- Lens shutter instantly cuts the light via the remote control for a presenter's comfort
- Dynamic Black feature automatically reduces black levels in darker scenes
SPECIFICATIONS
Projector | |
|---|---|
| Resolution — Native | WXGA (1280 x 800) |
| Resolution — Maximum | WUXGA (1920 x 1200) |
| Display Technology | DLP |
| Video Standard Compatibility | NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, 480i, 480p, 576i, 720p, 1080i, 1080p |
| Lamp Brightness | 7,000 lumens |
| Lamp Life | 2,000 hours |
| Replacement Lamp | SP-LAMP-082 |
| Contrast Ratio | 2,400:1 |
| Color Wheel | 6-segment "Presentation" color wheel (RYGCWB) and 6-segment "Cinema Correct" color wheel (RGBCMY) |
| Number of Colors | 16.7 million |
| Aspect Ratio | 16:10 |
| Aspect Ratio Compatibility | 4:3, 16:9 |
| Lens Shift — Vertical (max) | +20% to -60% |
| Lens Shift — Horizontal (max) | +/-10% |
| Image Size — Minimum | 50 in |
| Image Size — Maximum | 300 in |
| Connectors — Inputs | Composite video, S-video, DVI-D, 3G-SDI, HDMI, LAN (RJ45), VGA |
| Connectors — Outputs | 3G-SDI, Screen trigger 12v |
| Audible Noise | < 43 dBA at 0°F / -17.8°C |
| Audible Noise — Eco Mode | < 39 dBA at 0°F / -17.8°C |
| Included Accessories | Power cord, Remote, VGA cable, Documentation |
| Product Warranty | 2 years |
| Lamp Warranty | 6 months |
| Accessories Warranty | 90 days |
| Power Consumption — Low Power | 760W max |
| Power Consumption | 960W max |
| Power Standard | AC 100 to 240V, 50/60 |
| Operating Conditions | 41 to 104°F at 0 to 10000 ft / 5 to 40°C at 0 to 3048 m |
| Menu Languages | English, French, German, Spanish, Italian, Norwegian, Dutch, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish, Arabic, Indonesian, Portuguese |
| Security Features | User PIN, Kensington lock port |
Shipping | |
| Product Dimensions | 8.3 x 20 x 20.9 in / 210.8 x 508 x 530.9 mm |
| Product Weight | 44 lbs / 20 kg |
| Shipping Dimensions | 14.6 x 28.2 x 25.1 in / 370.8 x 716.3 x 637.5 mm |
| Shipping Weight | 61.7 lbs / 28 kg |
No datasheet available.
