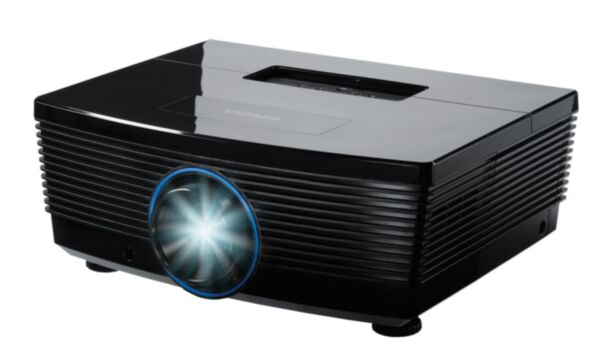

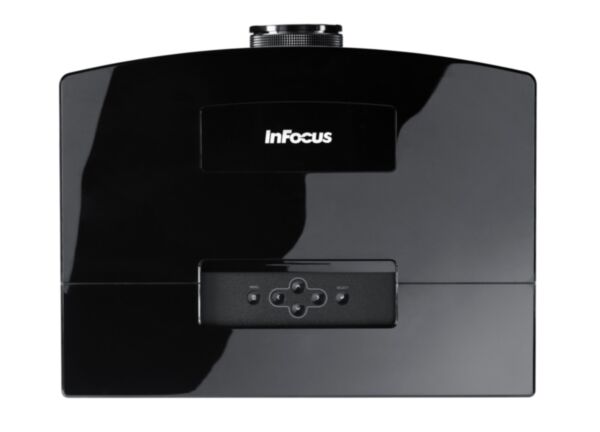

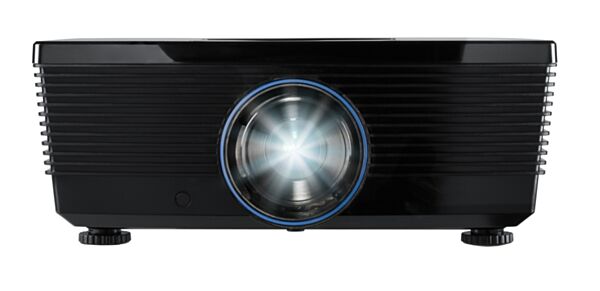

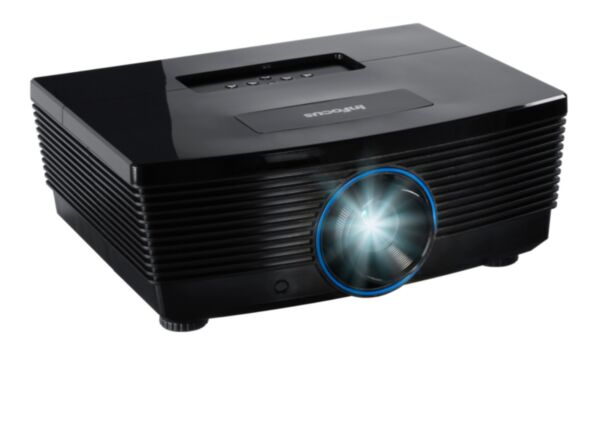

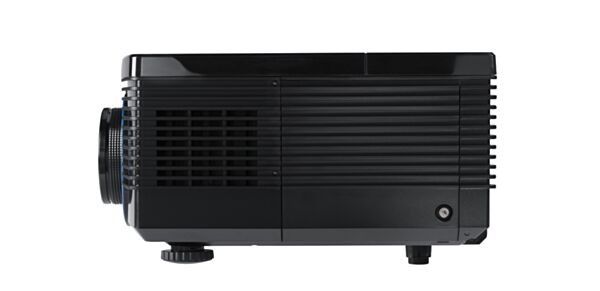

InFocus Projector IN5316HDa
- SKU: IN5316HDa
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Why choose the IN5316HDa? 5000 lumens Native 1080p high-definition resolution Three lens choices: standard (included), short throw, long throw HDMI, DisplayPort, DVI-D and 5 BNC inputs RJ45 port to monitor and control over your network Lens shift for the perfect image placement 24/7... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
OVERVIEW
Why choose the IN5316HDa?
- 5000 lumens
- Native 1080p high-definition resolution
- Three lens choices: standard (included), short throw, long throw
- HDMI, DisplayPort, DVI-D and 5 BNC inputs
- RJ45 port to monitor and control over your network
- Lens shift for the perfect image placement
- 24/7 rated; no filters to clean or replace
- Compact size fits within a 2x2' ceiling tile
- 3D ready, plus 3D sync port
Digital connectivity
- HDMI input: a must for displaying HD video and audio
- 5 BNC input for interfacing with professional switching and signal conditioning hardware
- DisplayPort for compatibility with current and emerging connection types, including Thunderbolt
- DVI-D input to meet signal amplification and switching requirements
- Control with room control systems via RS232 or over your network via the RJ45/LAN port
- Wireless connectivity with the optional InFocus LiteShow 4 wireless adapter
Brilliant images every time
- 5000 lumens of brightness provide clear, vivid images in medium to large-sized venues and in high ambient light situations
- 1080p high definition resolution
- Filter-free and rated for 24/7 fail-safe operation
- 3D ready for content from PCs, Blu-Ray, cable boxes and more. DLP Link 3D glasses required.
- 3D Sync Port for your 3D emitter and its compatible glasses
- Single-lamp design for easy and economical maintenance
Installation flexibility
- Three lens choices (standard, short throw, long throw)
- Lenses pull out and snap in with ease
- Lens shift (horizontal and vertical) for the perfect image placement
- Compact form factor fits easily into a 2x2 ceiling tile
- AMX Device Discovery will identify the IN5316HDa and automatically configure itself to control it
- Lamp door is easily accessible when installed for quick lamp replacement
SPECIFICATIONS
Projector | |
|---|---|
| Resolution — Native | FHD (1920 x 1080) (1920 x 1080) |
| Display Technology | DLP |
| Video Standard Compatibility | NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Speakers | Stereo 3W x 2 |
| Lamp Brightness | 5,000 lumens |
| Lamp Life — Bright Mode | 1,500 hours |
| Lamp Life | 2,500 hours |
| Replacement Lamp | SP-LAMP-090 |
| Contrast Ratio | 2,000:1 |
| Number of Colors | 16.7 million |
| Aspect Ratio | 16:9 |
| Aspect Ratio Compatibility | 4:3, 16:10 |
| Lens Type | Manual zoom, focus and shift |
| Lens Shift — Vertical (max) | -35% to 5% |
| Lens Shift — Horizontal (max) | +/- 5% |

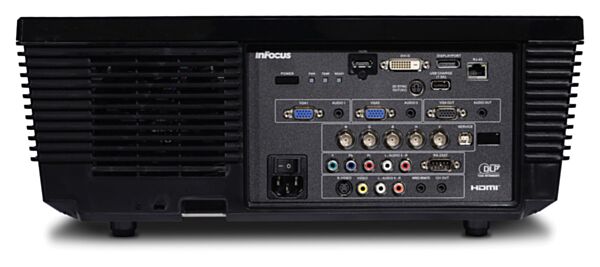

| Connectors — Inputs | 3.5mm stereo audio ×2, DisplayPort, HDMI 1.4 (rear), Composite video, S-video, VGA x2, DVI-D, RGBHV 5 BN, RCA R&L x2, Component RCA x3 |
| Connectors — Outputs | 3.5mm audio output, Monitor out (VGA), 3D Sync Out (5V) |
| Audible Noise | < 34 dBA at 0°F / -17.8°C |
| Audible Noise — Eco Mode | < 31 dBA at 0°F / -17.8°C |
| Included Accessories | Power cord, Remote, VGA cable, Documentation |
| 3D Support | 1080p @ 144 Hz via HDMI, DLP Link 3D glasses required |
| Product Warranty | 2 years |
| Lamp Warranty | 6 months |
| Accessories Warranty | 90 days |
| Computer Compatibility | PC, Mac, Linux |
| Power Consumption — Low Power | 340W max |
| Power Consumption | 450W max |
| Power Standard | AC 100 to 240V, 50/60 |
| Operating Conditions | 41 to 95°F at 0 to 7500 ft / 5 to 35°C at 0 to 2286 m |
| Menu Languages | English, French, German, Spanish, Italian, Norwegian, Dutch, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Danish, Portuguese |
| Security Features | Kensington lock port, Security bar, Security keypad PIN code lock |
| Approvals | UL and c-UL, FCC, CE |
Throw and Zoom | |
| Throw Ratio — Standard Lens — Minimum | 1.54 |
| Throw Ratio — Standard Lens — Maximum | 1.93 |
| Throw Ratio — Short-Throw Lens — Maximum | 0.77 |
| Throw Ratio — Long-Throw Lens — Minimum | 1.93 |
| Throw Ratio — Long-Throw Lens — Maximum | 2.89 |
| Zoom Ratio — Standard Lens | 1.3:1 |
| Zoom Ratio — Long-Throw Lens | 1.5:1 |
Shipping | |
| Product Dimensions | 6.9 x 16.9 x 13.3 in / 175.3 x 429.3 x 337.8 mm |
| Product Weight | 19 lbs / 8.6 kg |
| Shipping Dimensions | 7.8 x 22 x 16.5 in / 198.1 x 558.8 x 419.1 mm |
| Shipping Weight | 21 lbs / 9.5 kg |
