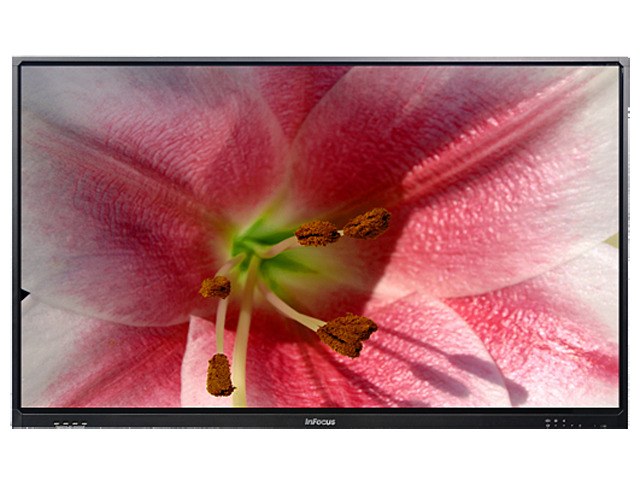

InFocus JTouch 65-inch Interactive Flat Panel – INF6501c

Name: InFocus JTouch 65-inch Interactive Flat Panel – INF6501c
Brand: InFocus
SKU: INF6501c
Availability: InStock

The InFocus JTouch INF6501c is a 65-inch interactive flat panel with a Full HD 1920 x 1080 W-LED display, 350 nits brightness and an embedded PC source selectable from the remote. It provides four HDMI inputs, VGA, component, composite, LAN and RS-232 serial control. Procure.ae supplies it in the UAE as a discontinued legacy model.

The INF6501c has a viewable area of 1428.5 x 803.5 mm with a maximum resolution of 1920 x 1080 and a 120 Hz refresh rate. It lists 350 nits brightness, 5,000:1 contrast, a 6.5 ms response time and 176° horizontal and vertical viewing angles. Built-in speakers deliver 10 W x 2 with a 100 Hz to 20 kHz response, and the remote adds picture-in-picture, along with Input and Home buttons for source switching and volume control.

Inputs include four HDMI, VGA, component, composite, 3.5 mm and RCA L/R audio, four USB 3.0 Type-A ports, one USB 3.0 Type-B port and a LAN port, with RS-232 for serial control and RCA L/R audio out. The Home button returns the active source to the embedded PC. The panel measures 1529.18 x 924.22 x 84.7 mm and weighs about 50.0 kg without the stand; mounting accessories are not supplied.

Screen Size

65 inch (viewable area 1428.5 x 803...

Resolution

1920 x 1080 (Full HD)

Brightness

350 nits

Type

Interactive Flat Panel

Full HD panel
Image performance
Four HDMI inputs

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

Full HD panel

W-LED display with 1920 x 1080 maximum resolution and a 120 Hz refresh rate.

Image performance

350 nits brightness, 5,000:1 contrast ratio and 6.5 ms response time.

Four HDMI inputs

HDMI 1 to HDMI 4 can be selected from the source menu.

Legacy and control inputs

VGA, component, composite and RS-232 serial control.

Embedded PC source

The Home button returns the active source to the embedded PC.

Picture-in-picture

Corner and side-by-side layouts at 50% or 25% size, with swap and position controls.

Audio

10 W x 2 speakers, 3.5 mm and RCA L/R inputs, and RCA L/R output.

USB and network

Four USB 3.0 Type-A ports, one USB 3.0 Type-B port and a LAN port.

Specifications

29 specifications

General

Key FeaturesW-LED panel, 120 Hz refresh rate, 4 x HDMI, Embedded PC source, Picture-in-picture, RS-232 control, LAN port, Ambient light sensor

ModelINF6501c

TypeInteractive Flat Panel

Display

Aspect Ratio16:9

BacklightW-LED

Brightness350 nits

Contrast Ratio5,000:1

Refresh Rate120 Hz

Resolution1920 x 1080 (Full HD)

Response Time6.5 ms

Screen Size65 inch (viewable area 1428.5 x 803.5 mm)

Viewing Angle176° (H) / 176° (V)

Audio

Audio In3.5 mm × 1, RCA L/R × 1

Audio OutRCA L/R × 1

Frequency Response100 Hz – 20 kHz (±3 dB)

Speaker Output10 W x 2 (8 Ω)

Connectivity

EthernetLAN

HDMI InputsHDMI In × 4

Input Voltage100–240 V AC, 50/60 Hz, 2.5 A

InputsHDMI × 4, VGA, component, composite video × 1, 3.5 mm audio, RCA L/R audio, RS-232, LAN, USB 3.0 Type-A × 4, USB 3.0 Type-B × 1

Serial PortRS-232 (serial control)

USB PortsUSB 3.0 Type-A × 4, USB 3.0 Type-B × 1

VGA InputVGA × 1

Power

Power Consumption≤ 200 W

Physical

Dimensions1529.18 x 924.22 x 84.7 mm (without stand)

Operating Humidity20% to 80% RH

Operating Temperature0 to 40 °C

Weight50.0 kg (without stand)

Compliance

CertificationsFCC Class A

Downloads

Manufacturer documents for the InFocus JTouch 65-inch Interactive Flat Panel – INF6501c — datasheets, manuals, drawings and certificates.

User manual – INF6501c – INF6501c-Hardware-Guide-01

Questions

Can’t find your answer? Ask on WhatsApp

Does the INF6501c have an embedded PC?

The hardware guide describes a Home button that returns the active source to the embedded PC. The manufacturer's specifications do not state the processor, memory or operating system, so ask Procure.ae to confirm the PC configuration before you specify it.

How many HDMI inputs does the INF6501c have?

It has four HDMI inputs, labelled HDMI 1 to HDMI 4 in the Audio menu. It also has VGA, component, composite and audio inputs, plus a LAN port, USB 3.0 Type-A (four) and USB 3.0 Type-B (one) ports.

Can the INF6501c use picture-in-picture?

Yes. The remote has PiP controls for on/off, input, swap, position and audio. Layouts include corner and side-by-side configurations at 50% resized, 25% resized and 50% full screen, depending on the source types.

Can I mount the INF6501c on a wall?

Yes, but mounting accessories do not ship with it. Use commercially manufactured hardware rated for the display, with metric 8 (12 mm) screws and spring washers, and leave at least 5 cm of clearance from the wall. The panel weighs about 50.0 kg without the stand.

How is the INF6501c controlled?

It can be controlled with the remote or the on-screen menu, and the specifications list RS-232 for serial control and a LAN port. Audio can be routed from HDMI 1 to 4, Lightcast, Audio 1 or Audio 2, and the Speaker setting selects internal or external speakers.
