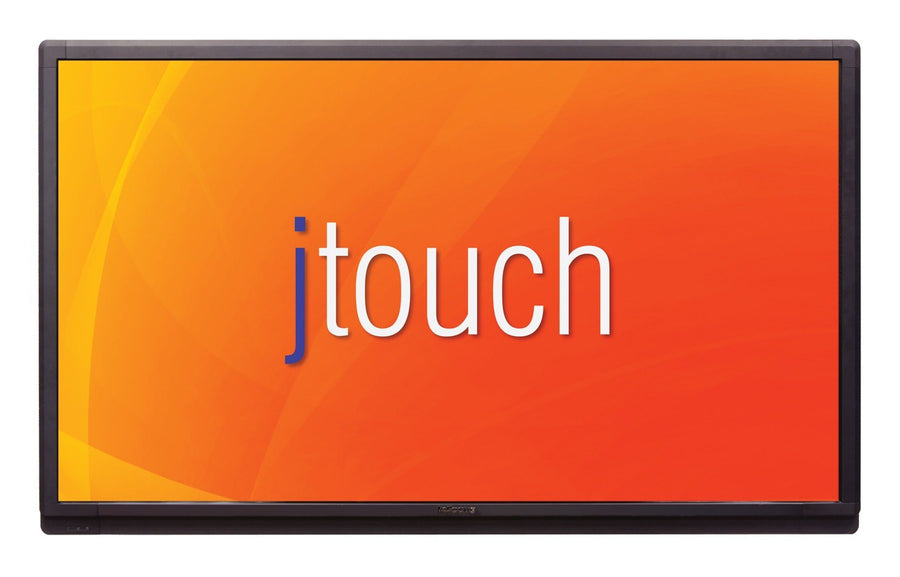

InFocus JTouch 57.5-inch Full HD Interactive Flat Panel – INF5701

Name: InFocus JTouch 57.5-inch Full HD Interactive Flat Panel – INF5701
Brand: InFocus
SKU: INF5701
Availability: InStock

The InFocus JTouch INF5701 is a 57.5-inch Full HD interactive flat panel with an embedded Intel Core i7-4770T PC, 8 GB RAM and Windows 7 Pro 64-bit. It offers 370 nits brightness, two HDMI inputs and stereo 10 W x 2 speakers. Procure.ae supplies it in the UAE for meeting rooms and classrooms.

The INF5701 has a 57.51-inch viewable TFT-LCD panel with a maximum resolution of 1920 x 1080, 370 nits brightness, a 5,000:1 dynamic contrast ratio, a 9.5 ms response time and a 176° horizontal and vertical viewing angle. The embedded PC pairs an Intel Core i7-4770T on a Q87 chipset with 8 GB RAM and 802.11n wireless networking. An ambient light sensor and integrated stereo speakers of 10 W x 2 are included.

Inputs cover two HDMI, one PC In, composite video, component RCA, RS-232, 3.5 mm audio, RCA L/R audio, a microphone input and a USB-B port for touch control, with an RCA audio output. The guide describes the Mondopad software on the embedded PC, a Home button that returns to it, and picture-in-picture with HDMI 1, HDMI 2, PC and VGA sources. It measures 1388.1 x 856.4 x 91.2 mm and weighs 53.0 kg without the stand.

Screen Size

57.5 inch

Resolution

1920 x 1080 (Full HD)

Brightness

370 nits

Type

Interactive Flat Panel with Embedde...

57.5-inch Full HD panel
Embedded Windows PC
370 nits brightness

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

57.5-inch Full HD panel

A 57.51-inch viewable TFT-LCD with a maximum resolution of 1920 x 1080.

Embedded Windows PC

Intel Core i7-4770T, 8 GB RAM and Windows 7 Pro 64-bit.

370 nits brightness

5,000:1 dynamic contrast, 9.5 ms response time and 176° viewing angles.

Two HDMI inputs

HDMI plus PC, composite, component and RCA L/R audio inputs, with a microphone input.

Touch via USB-B

A USB-B port provides touch control for an external computer.

Picture-in-picture

PiP shows two sources, with sizes of 50%, 25% and 50% full screen depending on source.

Stereo speakers

Integrated 10 W x 2 stereo speakers, with a selectable internal or external speaker option.

Wireless and sensing

802.11n wireless networking and an ambient light sensor.

Specifications

28 specifications

General

ControlsRemote control, side keypad, on-screen display menu

Key Features57.5-inch Full HD TFT-LCD, 370 nits, embedded Core i7 PC with 8 GB RAM, Windows 7 Pro, 802.11n Wi-Fi, 10 W x 2 speakers, ambient light sensor, picture-in-picture

ModelINF5701

TypeInteractive Flat Panel with Embedded PC

Display

Brightness370 nits

Contrast Ratio5,000:1 (dynamic)

Display TypeTFT-LCD

Panel TechnologyLCD

Refresh Rate50/60 Hz

Resolution1920 x 1080 (Full HD)

Response Time9.5 ms

Screen Size57.5 inch

Viewing Angle176° (H) / 176° (V)

Performance

Operating SystemWindows 7 Pro 64-bit

ProcessorIntel Core i7-4770T, Q87 chipset

RAM8 GB

Audio

Audio In3.5 mm × 1, RCA L/R × 1, microphone In × 1

Audio OutRCA L/R × 1

Speaker Output10 W × 2 (stereo)

Connectivity

HDMI InputsHDMI × 2

Input Voltage100–240 V AC, 50/60 Hz

InputsHDMI In × 2, PC In × 1, composite video × 1, component RCA × 1, RS-232 × 1, 3.5 mm audio In × 1, RCA L/R audio In × 1, microphone In × 1, USB-B (touch) × 1

Serial PortRS-232 × 1

USB PortsUSB-B (touch control) × 1

Wi-Fi802.11n

Physical

Dimensions1388.1 x 856.4 x 91.2 mm (without stand)

Weight53.0 kg (without stand)

Compliance

CertificationsFCC Class A

Downloads

Manufacturer documents for the InFocus JTouch 57.5-inch Full HD Interactive Flat Panel – INF5701 — datasheets, manuals, drawings and certificates.

User manual – INF5701 – HWG-INF5701

Questions

Can’t find your answer? Ask on WhatsApp

What size and resolution is the InFocus INF5701?

The INF5701 has a 57.51-inch viewable TFT-LCD panel with a maximum resolution of 1920 x 1080 (Full HD). The guide lists 370 nits brightness, a 5,000:1 dynamic contrast ratio, a 9.5 ms response time and 176° horizontal and vertical viewing angles.

Does the INF5701 have a built-in computer?

Yes. It has an embedded PC with an Intel Core i7-4770T processor on a Q87 chipset, 8 GB RAM and Windows 7 Pro 64-bit, plus 802.11n wireless. The Home button on the remote switches the active source back to the embedded PC.

Which inputs and outputs does the INF5701 have?

Inputs are two HDMI, one PC In, composite video, component RCA, RS-232, 3.5 mm audio, RCA L/R audio, a microphone input and a USB-B port for touch control. The only listed output is RCA L/R audio out. Integrated speakers are stereo 10 W x 2.

How big and heavy is the INF5701 for installation?

Without the stand it measures 1388.1 x 856.4 x 91.2 mm and weighs 53.0 kg (116.88 lb). Plan for at least two people to handle it and for mounting hardware rated for its weight. Procure.ae can advise on mounts and install it in the UAE.

Can the INF5701 show two sources at once?

Yes. Picture-in-picture shows a second source in a window or side by side at 50%, 25% or 50% full-screen sizes, depending on source types. The remote offers PiP input, swap, position and audio buttons for changing the layout.

Can I buy the INF5701 in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
