InFocusMeeting Room SolutionsSKU INA-PTZ-4

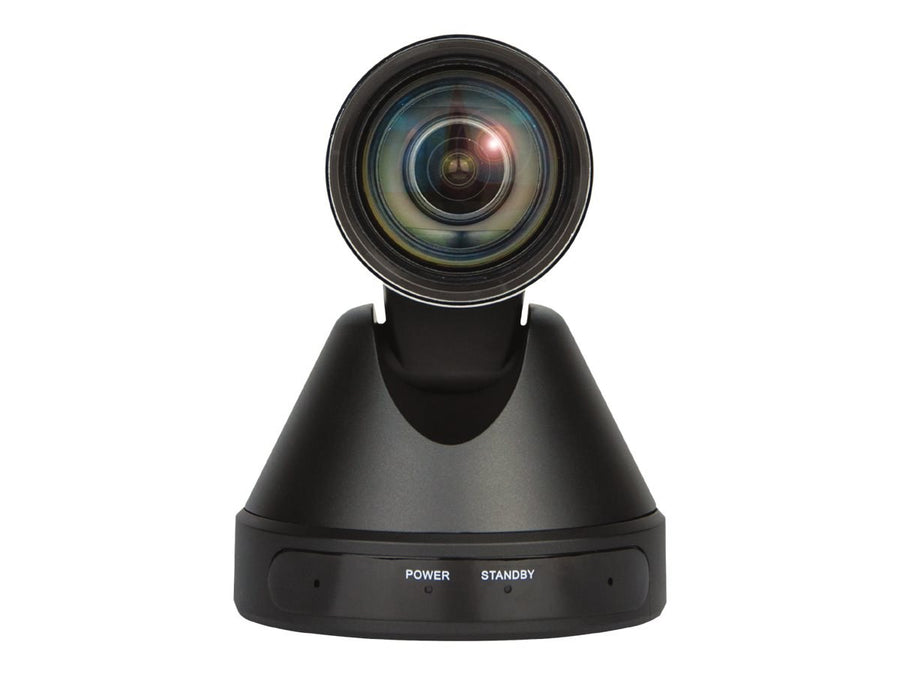

InFocus INA-PTZ-4 USB 3.0 PTZ Video Conferencing Camera
The InFocus INA-PTZ-4 is a USB 3.0 PTZ video conferencing camera that supports up to 1080p at 60 fps and UVC 1.0 to 1.5 with UVC PTZ. It includes remote control operation, an on-screen setup menu and RS-232 or RS-485 serial control, and runs from 12 V DC. Procure.ae supplies it in the UAE.
Over USB 3.0 the INA-PTZ-4 supports 1080p and 720p at 60, 50, 30 and 25 fps, and over USB 2.0 it lists 1080p at 30, 25, 15 and 10 fps plus 720p at 30 and 25 fps. The on-screen menu adjusts exposure, colour, image, pan/tilt/zoom, noise reduction and setup. Image styles include Norm, Clarity, Bright, Soft, 5S and Q Style, while 2D and 3D noise reduction and dynamic hot pixel correction clean up the picture. A remote control handles pan, tilt and zoom.
The camera has a USB 3.0 Type-B port, a 3.5 mm line-in, RS-232 in and out on 8-pin Mini DIN, and RS-485 sharing the RS-232 out connection for runs of up to 1200 m. VISCA, Pelco-D and Pelco-P are supported for serial control. Setup is plug and play with UVC conferencing software such as Webex, e-CAMView or Amcap. It draws up to 12 W at 12 V DC and weighs 0.91 kg.
Resolution
1920 x 1080 (Full HD)
Type
PTZ Conference Camera
Weight
0.91 kg
- USB 3.0 video
- UVC PTZ support
- Remote control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
USB 3.0 video
Supports 1080p and 720p at 60, 50, 30 and 25 fps over USB 3.0, with lower modes over USB 2.0.
02
UVC PTZ support
Works with UVC 1.0 to 1.5 and supports UVC pan, tilt and zoom control.
03
Remote control
A remote controls pan, tilt and zoom and adjusts settings such as brightness, saturation and hue.
04
On-screen menu
Exposure, colour, image, P/T/Z, noise reduction, setup and communication settings are adjustable.
05
Noise reduction
2D noise reduction (off, auto, 1 to 5) and 3D noise reduction (off, 1 to 8) with hot pixel correction.
06
Image styles
Norm, Clarity, Bright, Soft, 5S and Q Style presets, with gamma and black and white modes.
07
Serial control
RS-232 (up to 30 m) and RS-485 (up to 1200 m) using VISCA, Pelco-D or Pelco-P.
08
Compact body
128.5 x 118 x 156.2 mm and 0.91 kg, with an MTBF listed above 30,000 hours.
Specifications
16 specificationsGeneral
ControlsRemote control, on-screen display menu, RS-232 / RS-485
Key Features1080p at 60 fps over USB 3.0, UVC PTZ, remote control, 2D/3D noise reduction, selectable image styles, VISCA/Pelco-D/Pelco-P, RS-232/RS-485 control
ModelINA-PTZ-4
TypePTZ Conference Camera
Display
Resolution1920 x 1080 (Full HD)
Performance
Storage Conditions-40 to 60 °C
Audio
Audio In3.5 mm line-in × 1
Connectivity
ConnectivityUSB 3.0, RS-232, RS-485
Input Voltage12 V DC
ProtocolsUVC 1.0 to 1.5, UVC PTZ; VISCA, Pelco-D, Pelco-P control
Serial PortRS-232 In × 1, RS-232 Out × 1, RS-485 × 1 (shared with RS-232 Out)
USB PortsUSB 3.0 Type-B × 1
Power
Power Consumption12 W (max)
Physical
Dimensions128.5 x 118 x 156.2 mm
Operating Temperature-10 to 40 °C
Weight0.91 kg
Downloads
Manufacturer documents for the InFocus INA-PTZ-4 USB 3.0 PTZ Video Conferencing Camera — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution does the InFocus INA-PTZ-4 support?
It supports up to 1080p at 60 fps over USB 3.0, with 1080p at 50, 30 and 25 fps and 720p at 60, 50, 30 and 25 fps also listed. Over USB 2.0 the manufacturer lists 1080p at 30, 25, 15 and 10 fps, and 720p at 30 and 25 fps.
Does the INA-PTZ-4 work with video conferencing software?
Yes. It supports UVC 1.0 to 1.5 and UVC PTZ over a USB 3.0 Type-B connection, so UVC-compatible software such as Webex, e-CAMView or Amcap can use it. The user guide uses these applications as examples when describing setup.
How do I control the INA-PTZ-4?
Yes, you can use the remote control for pan, tilt and zoom and for on-screen menu settings. For fixed installations it also accepts RS-232 (up to 30 m) and RS-485 (up to 1200 m) control using VISCA, Pelco-D or Pelco-P protocols.
What connections and power does the INA-PTZ-4 need?
It has one USB 3.0 Type-B port, a 3.5 mm line-in, RS-232 in and out, and RS-485 sharing the RS-232 out connection. It runs from 12 V DC, draws up to 1.0 A (12 W maximum) and operates from -10 to 40 °C.
Can the INA-PTZ-4 reduce image noise in low light?
Yes. The on-screen menu offers 2D noise reduction (off, auto, levels 1 to 5), 3D noise reduction (off, levels 1 to 8) and dynamic hot pixel correction. The manufacturer does not state a minimum illumination figure in the user guide.
Can I buy the INA-PTZ-4 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
