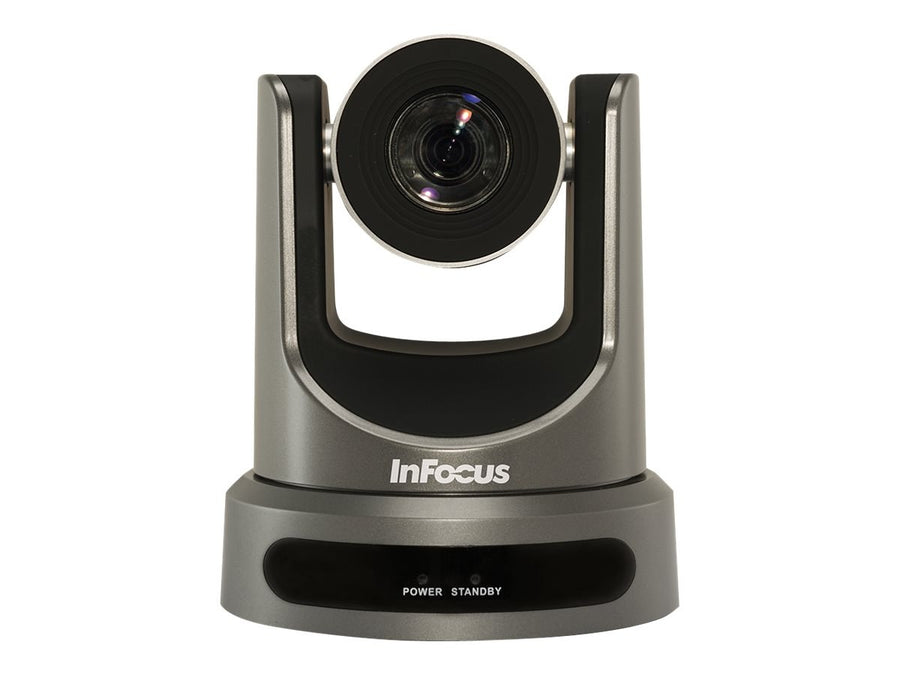

InFocus INA-PTZ-3 USB 3.0 HD PTZ Video Conferencing Camera
The InFocus INA-PTZ-3 is a USB 3.0 PTZ video conferencing camera with a 1/2.7-inch Full HD CMOS sensor, 12x optical zoom and a 72.5° wide-angle lens. It outputs up to 1080p at 60 fps over USB 3.0, HDMI, CVBS and network, with RS-232 and RS-485 control. Procure.ae supplies it in the UAE.
The INA-PTZ-3 uses a Panasonic 1/2.7-inch CMOS sensor with 2.07 million effective pixels to deliver up to 1920 x 1080 at 60 frames per second. Optical zoom is 12x, with 32x digital zoom listed as an optional feature, and 2D and 3D noise reduction keeps the picture clean in low light. Video can be encoded in H.265, H.264 or MJPEG at 128 to 8192 Kbps, with AAC audio at 96, 128 or 256 Kbps. USB 3.0 carries uncompressed video and is backward compatible with USB 2.0.
Connections include USB 3.0 Type-B, USB 2.0 Type-A, HDMI 1.3, a CVBS composite output, a Gigabit RJ45 network port, a 3.5 mm line-in, RS-232 in and out, and RS-485. Control protocols are VISCA, Pelco-D and Pelco-P, and network streaming supports RTSP, RTMP and ONVIF. The camera is UVC 1.0 compliant with UVC PTZ support and runs from a 12 V DC supply drawing up to 12 W, which suits meeting rooms, training rooms and classrooms.
Resolution
1920 x 1080 (Full HD)
Type
PTZ Conference Camera
Weight
1.35 kg
- 12x optical zoom
- Full HD at 60 fps
- Simultaneous outputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
12x optical zoom
12x optical zoom with optional 32x digital zoom and a 72.5° wide-angle lens.
02
Full HD at 60 fps
A 1/2.7-inch CMOS sensor with 2.07 million effective pixels outputs up to 1920 x 1080 at 60 fps.
03
Simultaneous outputs
USB 3.0, HDMI and network can output at the same time, and a CVBS output is also fitted.
04
H.265 and H.264
Video compression supports H.265, H.264 and MJPEG, with main and sub streams from 128 to 8192 Kbps.
05
Low-light noise reduction
2D and 3D noise reduction algorithms keep the image clean under low illumination.
06
Serial camera control
RS-232 and RS-485 control with VISCA, Pelco-D and Pelco-P; RS-485 reaches up to 1200 m.
07
Network streaming
Gigabit Ethernet with RTSP, RTMP, ONVIF, DHCP and multicast support.
08
Freeze during preset
Masks the image while the camera moves to a preset position.
Specifications
21 specificationsGeneral
Key Features12x optical zoom, 1080p at 60 fps, H.265/H.264/MJPEG, USB 3.0 + HDMI + network output, 2D/3D noise reduction, RS-232/RS-485 control, UVC PTZ, ONVIF
ModelINA-PTZ-3
TypePTZ Conference Camera
Display
Camera1/2.7 inch CMOS sensor, 2.07 million effective pixels, 72.5° wide-angle lens
Resolution1920 x 1080 (Full HD)
Viewing Angle72.5° (wide-angle lens)
Zoom12x optical, 32x digital (optional)
Performance
Storage Conditions-20 to 60 °C
Audio
Audio CodecsAAC (96, 128, 256 Kbps)
Audio In3.5 mm line-in × 1
Connectivity
ConnectivityUSB 3.0, HDMI, CVBS, Gigabit Ethernet
Ethernet10/100/1000 Mbps RJ45 × 1
HDMI OutputsHDMI 1.3 × 1
Input Voltage12 V DC
ProtocolsTCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast; VISCA, Pelco-D, Pelco-P control
Serial PortRS-232 In × 1, RS-232 Out × 1, RS-485 × 1
USB PortsUSB 3.0 Type-B × 1, USB 2.0 Type-A × 1
Power
Power Consumption12 W (max)
Physical
Dimensions169 x 142 x 164 mm
Operating Temperature-5 to 40 °C
Weight1.35 kg
Downloads
Manufacturer documents for the InFocus INA-PTZ-3 USB 3.0 HD PTZ Video Conferencing Camera — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and frame rate does the InFocus INA-PTZ-3 support?
It outputs up to 1920 x 1080 (1080p) at 60 frames per second from a 1/2.7-inch CMOS sensor with 2.07 million effective pixels. Over USB 3.0 it supports 1080p and 720p at 60, 50, 30 and 25 fps, while USB 2.0 is also supported at lower resolutions and frame rates.
How much zoom does the INA-PTZ-3 have?
The camera has 12x optical zoom and a 72.5° wide-angle lens. A 32x digital zoom is listed as an optional feature in the user manual. The wide lens suits covering a meeting room or classroom from one camera position.
Which connections does the INA-PTZ-3 have?
It has USB 3.0 Type-B, USB 2.0 Type-A, HDMI 1.3, CVBS (RCA), a 10/100/1000 Mbps RJ45 port, a 3.5 mm line-in, RS-232 in and out, and RS-485. USB 3.0, HDMI and network output can run at the same time.
How is the INA-PTZ-3 controlled?
Yes, it can be controlled over RS-232 (up to 30 m) or RS-485 (up to 1200 m) using VISCA, Pelco-D or Pelco-P. It also supports UVC PTZ, so conferencing software that offers UVC camera control can pan, tilt and zoom it.
Does the INA-PTZ-3 work with video conferencing software?
Yes. It supports USB 3.0 with the UVC 1.0 protocol, so UVC-compatible conferencing software can use it as a standard USB camera. It is backward compatible with USB 2.0, which lists lower resolutions. Check your software for pan, tilt and zoom control support.
