InFocusInteractive Flat PanelsSKU INF4030 series (INF4030, INF4032)

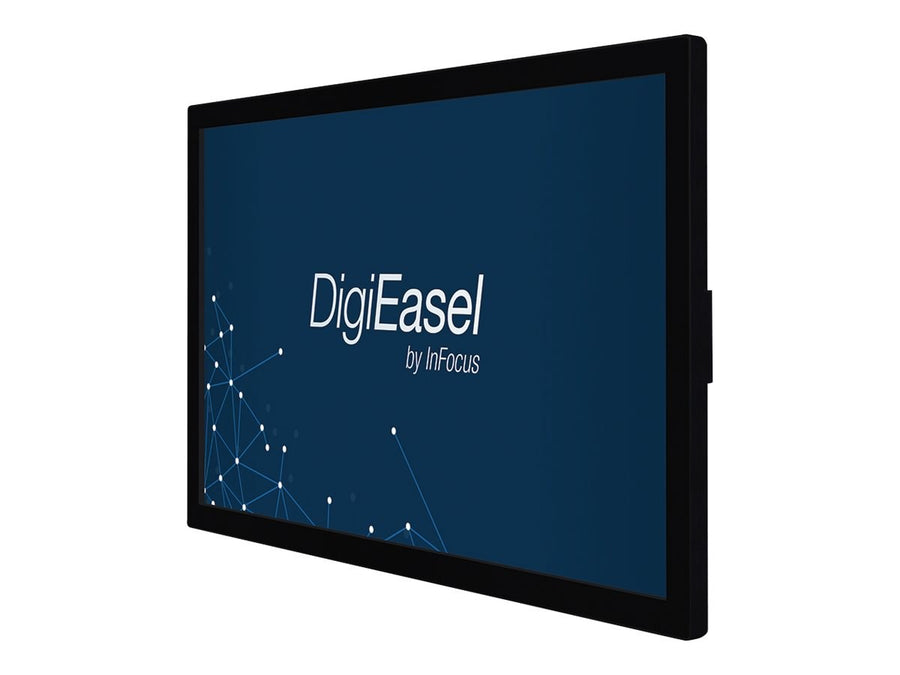

InFocus DigiEasel Interactive Touch Monitor – INF4030, INF4032
The InFocus DigiEasel INF4030 series, covering the INF4030 and INF4032, is a touch monitor for classrooms and meeting rooms. It offers four HDMI inputs, VGA, picture-in-picture and a USB touch connection to a Windows 7 or 8 computer, with internal speakers and a side keypad. Procure.ae supplies it in the UAE.
The INF4030 DigiEasel is operated from a keypad on the side of the monitor, which opens an on-screen menu for picture, screen, audio, picture-in-picture, configuration and advanced settings. Picture modes are Standard, HighBright and Soft, colour temperature can be set to Native, User, 6500K or 9300K, and the aspect ratio switches between Wide and 4:3. Backlight dimming can be set to 10, 30, 70 or 100.
Audio sources include HDMI 1 to 4, Audio 1, Audio 2 and Lightcast, and internal speakers can be used alongside or replaced by external speakers. Picture-in-picture lets a second source, such as VGA, appear in a window at an adjustable size and position. Touch control reaches an external computer through a USB Type-B to Type-A cable, and the guide lists Windows 7 or 8 for touch support. The guide on file covers the INF4030.
Type
Interactive Touch Monitor
- Four HDMI inputs
- USB touch connection
- Picture-in-picture
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Four HDMI inputs
HDMI 1 to HDMI 4 are available as video and audio sources, plus a VGA input.
02
USB touch connection
Touch reaches a laptop through a USB Type-B to Type-A cable; Windows 7 or 8 is listed for touch.
03
Picture-in-picture
PiP mode offers selectable input, position, size, swap and audio source.
04
Picture modes
Standard, HighBright and Soft presets with colour temperature of Native, User, 6500K or 9300K.
05
Speaker selection
Internal speakers can work with external speakers, or external speakers can be used alone.
06
Aspect ratio options
Wide or 4:3, with backlight dimming at 10, 30, 70 or 100.
07
Keypad control
A side keypad opens the on-screen menu for picture, screen, audio and configuration settings.
08
Power saving setting
A power saving option and DDC/CI support are available in the configuration menus.
Specifications
13 specificationsGeneral
CompatibilityWindows 7 or 8 (touch)
ControlsSide keypad with on-screen display menu
Key FeaturesTouch, four HDMI inputs, VGA, picture-in-picture, internal and external speaker selection, Standard/HighBright/Soft picture modes
ModelINF4030 series (INF4030, INF4032)
TypeInteractive Touch Monitor
Display
Aspect RatioWide or 4:3 (selectable)
Color TemperatureNative, User, 6500K, 9300K
TouchscreenYes, touch connection via USB Type-B to Type-A cable
Audio
Speaker TypeInternal speakers, external speaker option
Connectivity
HDMI InputsHDMI × 4
InputsHDMI × 4, VGA × 1, Audio In × 2
USB PortsUSB Type-B × 1 (touch connection to a computer)
VGA InputVGA × 1
Downloads
Manufacturer documents for the InFocus DigiEasel Interactive Touch Monitor – INF4030, INF4032 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the InFocus INF4030 DigiEasel?
The INF4030 DigiEasel is an InFocus touch monitor with HDMI and VGA inputs, internal speakers and a side keypad. It is listed with the INF4032 as the INF4030 series. A laptop connected by USB gives touch control on supported Windows versions.
Which inputs does the INF4030 have?
Its audio source menu lists HDMI 1, HDMI 2, HDMI 3, HDMI 4, Audio 1, Audio 2 and Lightcast, and the picture-in-picture menu includes VGA. The guide notes that an HDMI 1.3 or higher source and source device is required to hear audio over HDMI.
Does touch work on a Mac or Windows 10 computer?
The INF4030 guide states that the monitor touchpad does not support operating systems other than Windows 7 or 8. If you need touch with a newer system, ask Procure.ae to recommend a current interactive flat panel that suits your computers.
Does the INF4032 differ from the INF4030?
The manufacturer guide on file is the INF4030 DigiEasel User Guide, and it does not describe any differences for the INF4032. Procure.ae can confirm the exact specification of either model before you order.
Can the INF4030 show two sources at once?
Yes. Picture-in-picture shows a second source in a small window, and the menu sets the PiP input, position, size, swap and which source supplies audio. The guide lists VGA as an example PiP input. Touch may become inconsistent while PiP is on.
Can I buy the INF4030 / INF4032 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
