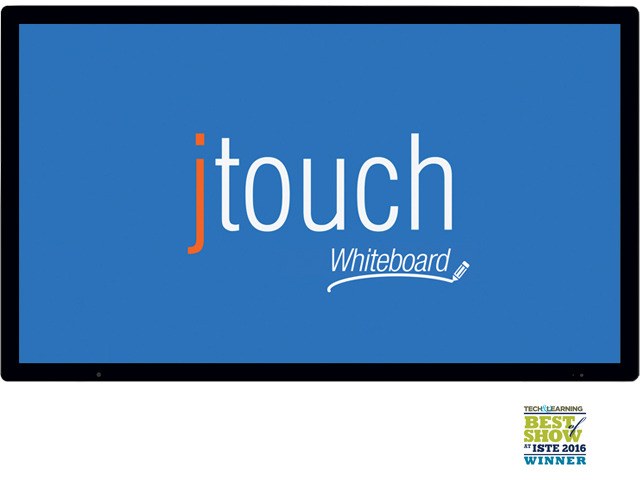

InFocus 65-inch Interactive Flat Panel – INF6502WB

The InFocus INF6502WB is a 65-inch interactive flat panel with an embedded PC source, picture-in-picture and a remote-controlled on-screen menu. It supports HDMI 1 to HDMI 4 sources, a freeze function and portrait OSD rotation. Procure.ae supplies it in the UAE as a discontinued legacy model and can confirm its full specifications.

The INF6502WB User Guide describes a 65-inch display controlled by a remote and a keypad on the right-hand side. The Home button returns the active source to the embedded PC, and the remote's Input button switches between sources. Picture-in-picture shows two sources in corner or side-by-side layouts at 50% resized, 25% resized or 50% full screen, with swap, position and audio-mix controls.

The on-screen menu adjusts brightness, contrast, sharpness, colour temperature, RGB colour control, picture mode and dimming (10, 30, 70 or 100), and the aspect ratio can be set to 4:3 or Wide. The Audio menu selects HDMI 1 to HDMI 4, LightCast, Audio 1 or Audio 2 and can run internal and external speakers or external only. The manufacturer's guide does not state resolution or brightness figures.

Screen Size
65 inch
Type
Interactive Flat Panel
  • Embedded PC source
  • Four HDMI sources
  • Picture-in-picture
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Embedded PC source
The Home button returns the active source to the embedded PC.
02
Four HDMI sources
HDMI 1 to HDMI 4 can be selected as video and audio sources.
03
Picture-in-picture
Corner or side-by-side layouts at 50% resized, 25% resized or 50% full screen.
04
Freeze function
Freezes the image that is currently displayed.
05
Portrait OSD rotation
The on-screen menu can be rotated to portrait orientation.
06
Picture controls
Brightness, contrast, sharpness, colour temperature, RGB control and dimming levels of 10, 30, 70 or 100.
07
Aspect ratio options
4:3 or Wide.
08
Lock and control options
IR control and keypad lock settings, DDC/CI and a USB hub switch.

Specifications

8 specifications
General
ControlsRemote control and right-hand keypad
Key FeaturesEmbedded PC source, 4 x HDMI sources, Picture-in-picture, Freeze, Portrait OSD rotation, Dimming levels 10/30/70/100, 4:3 or Wide aspect ratio
ModelINF6502WB
TypeInteractive Flat Panel
Display
Screen ControlIR control and keypad lock settings; DDC/CI
Screen Size65 inch
Audio
Audio InAudio 1, Audio 2
Connectivity
HDMI InputsHDMI In × 4

Downloads

Manufacturer documents for the InFocus 65-inch Interactive Flat Panel – INF6502WB — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What screen size is the INF6502WB?
The User Guide describes it as a 65-inch display. The manufacturer's guide does not list the resolution, brightness or contrast figures, so ask Procure.ae to confirm the full specification sheet before you specify the INF6502WB for a project.
Does the INF6502WB have a built-in PC?
The guide refers to an embedded PC: the Home button changes the active source back to it. The processor, memory and operating system are not stated in the guide, so Procure.ae can confirm the configuration of the unit.
Can the INF6502WB show two sources at once?
Yes. The picture-in-picture function shows a second source in a corner or side-by-side at 50% resized, 25% resized or 50% full screen. The remote has controls for PiP on/off, input, swap, position and audio mix.
Which sources can I select for audio?
The Audio menu lists HDMI 1, HDMI 2, HDMI 3, HDMI 4, LightCast, Audio 1 and Audio 2. The Speaker setting chooses whether the internal and external speakers both operate or only external speakers, such as a sound bar.
How do I control the INF6502WB?
Use the remote or the keypad on the right-hand side of the display. Both open the on-screen menu, change sources and adjust picture and volume. IR control and keypad control can be locked in the Advanced Option menu, and the front LED shows power state.
Can I buy the INF6502WB in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
