IIYAMADigital SignageSKU LE9864UHS-B1AG

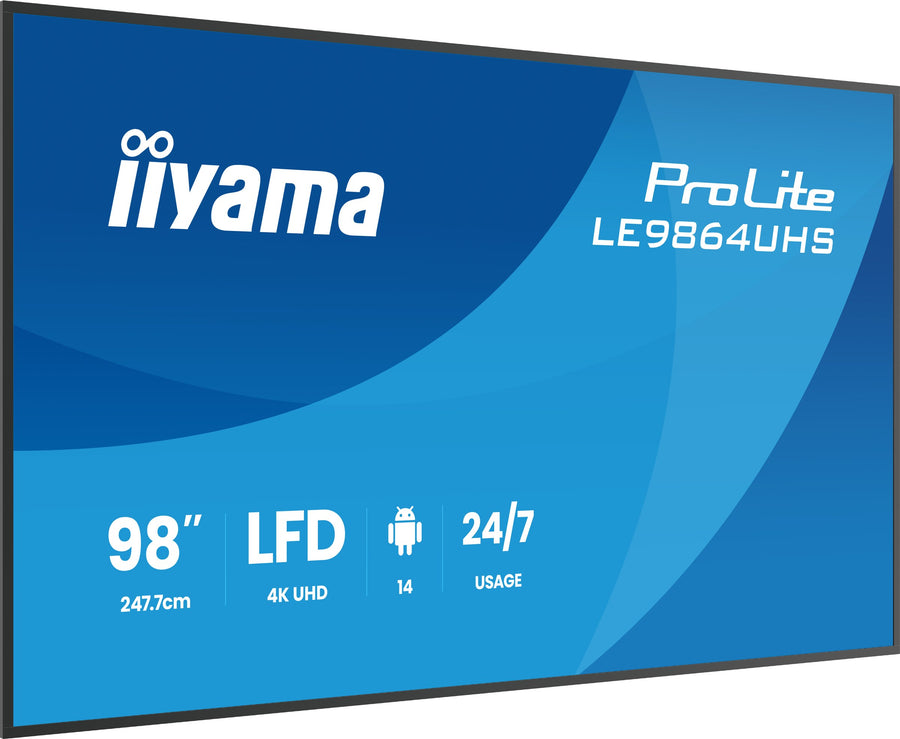

iiyama ProLite 98-inch 4K UHD Digital Signage Display – LE9864UHS-B1AG
The iiyama ProLite LE9864UHS-B1AG is a 98-inch 4K UHD digital signage display with a 500 nits VA panel, Android 14 and built-in WiFi. It suits retail, corporate, hospitality and restaurant spaces that run content 24/7. Procure.ae supplies the LE9864UHS-B1AG across the UAE.
The 3840 x 2160 VA panel delivers 500 cd/m² brightness, 5000:1 static contrast and a 6.5 ms response time, with viewing angles of 178 degrees. Android 14 runs on the display, so apps install directly on it. iiSignage² manages content remotely, iiControl handles device management, and iiShare supports wireless presentation. FailOver switches to the next available input when the default source has no signal, so content stays on screen.
The display takes two HDMI 2.0 inputs and a USB-C input with DisplayPort Alt mode and 15 W power delivery, so a laptop can connect over one cable. RS-232C and IR control ports suit room controllers and building systems. It mounts on a 700 x 500 mm VESA pattern in landscape orientation, and its internal power supply accepts 100 to 240 V AC.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Digital Signage Display
- Android 14 platform
- 4K UHD resolution
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
install apps directly on the display.
02
4K UHD resolution
3840 x 2160 pixels on a 98-inch VA panel.
03
500 nits brightness
500 cd/m² panel brightness with 5000:1 static contrast.
04
iiSignage² CMS
remote content management with iiControl and iiShare.
05
FailOver input switching
moves to the next available input when there is no signal.
06
Built-in WiFi
2.4 GHz and 5 GHz connectivity for remote content delivery.
07
24/7 operation
rated for non-stop operation with anti image retention.
08
Flexible inputs
two HDMI 2.0 inputs and a USB-C input with DisplayPort Alt mode.
Specifications
30 specificationsGeneral
ApplicationRetail, corporate, hospitality, restaurants
Key FeaturesAndroid 14, iiSignage² CMS, iiControl DMS, iiShare wireless presentation, FailOver input switching, built-in WiFi, 24/7 operation
ModelLE9864UHS-B1AG
TypeProfessional Digital Signage Display
Display
Aspect Ratio16:9
Bezel Size20 mm (sides, top and bottom)
Brightness500 nits
Color Depth8-bit + FRC
Color GamutNTSC 72%
Contrast Ratio5,000:1
OrientationLandscape
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size98 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
Audio
Speaker Output2 x 10 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 x2, USB-C x1 (DP Alt, 15 W PD), RS-232C in x1, RJ45 LAN x1, IR in x1, USB 2.0 x2
Wi-FiBuilt-in, 2.4 GHz / 5 GHz
Power
Power Consumption388 W (typical)
Physical
ColorBlack
Dimensions2202 x 1257.7 x 110.5 mm
Duty Cycle24/7
Operating Temperature0 to 40 °C
VESA Mount700 x 500 mm
Weight61 kg
Compliance
CertificationsCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 98-inch 4K UHD Digital Signage Display – LE9864UHS-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LE9864UHS-B1AG run Android?
Yes. The LE9864UHS-B1AG runs Android 14 with iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer and a media player included. Apps can be installed directly on the display. iiSignage² handles remote content management for the display.
Can the LE9864UHS-B1AG run 24/7?
Yes. The manufacturer rates the LE9864UHS-B1AG for 24/7 operation and lists anti image retention as a feature. Its FailOver function keeps content active by switching to the next available input when the default source has no signal.
What VESA mount does the LE9864UHS-B1AG use?
It uses a 700 x 500 mm VESA pattern. The display is designed for landscape orientation, and the manufacturer's specifications do not state a portrait mounting option for this model. Procure.ae can confirm the mounting arrangement for your wall or stand.
Can the LE9864UHS-B1AG be controlled from a building system?
Yes. It has an RS-232C control input and output, an RJ45 LAN port and IR control, with an IR loop-through. These ports suit integration with room controllers and building management systems.
