IIYAMAInteractive Flat PanelsSKU TE9813A-B2AG

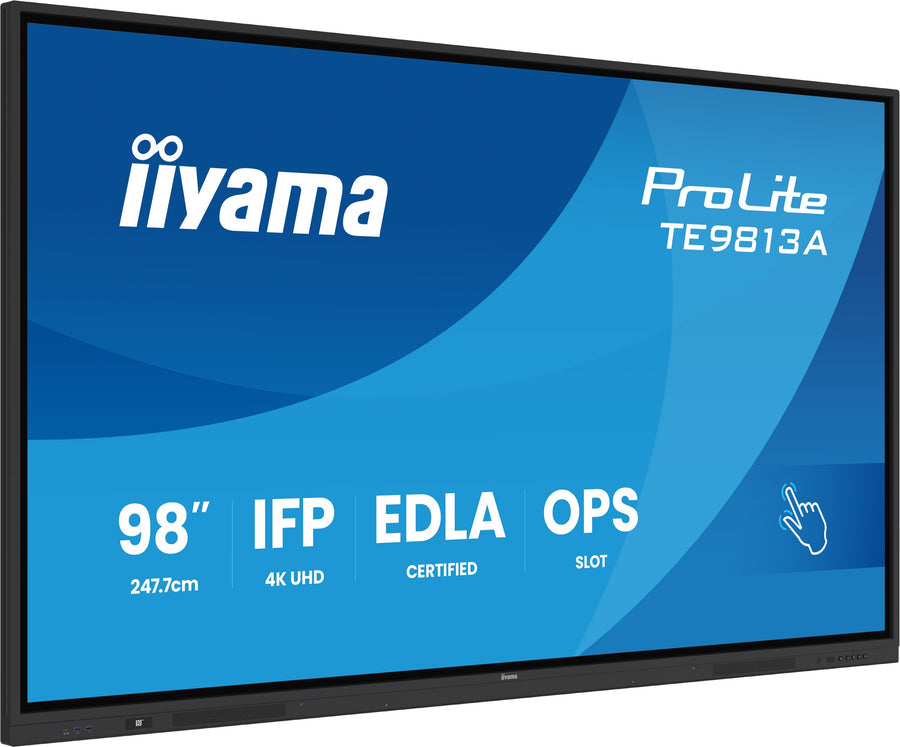

iiyama ProLite 98-inch 4K Interactive Flat Panel – TE9813A-B2AG
The iiyama TE9813A-B2AG is a 98-inch 4K UHD interactive flat panel with 40-point infrared touch, Google EDLA certification and Android 14 (iiWare 21E). It suits classrooms, lecture spaces and boardrooms where groups write and share together. Procure.ae supplies the iiyama TE9813A-B2AG across the UAE.
The TE9813A-B2AG pairs a 3840 x 2160 IPS panel with 500 nits typical brightness and 1,200:1 static contrast. PureTouch-IR+ infrared touch supports 40 touch points, 32-point writing and palm rejection, with 5 ms touch response and ±1 mm accuracy. A Zero-Gap Air Bonding screen construction is designed to eliminate parallax when writing. Built-in iiWare 21E runs Android 14 with 8 GB RAM and 128 GB storage, and two 20 W front speakers plus a 20 W subwoofer are included.
Google EDLA certification gives direct access to Google apps, accounts and files on the display, and the manufacturer notes integration with the Microsoft 365 suite. iiControl (DMS) lets IT teams manage displays across a campus or office, and kiosk mode supports fixed public use. An OPS slot takes an Intel OPS 80-pin PC module. Dual HDMI 2.0 inputs, DisplayPort, two USB-C ports and RS-232c control fit existing AV systems. The manufacturer recommends no more than 18 hours of operation per day for longevity.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared (PureTouch-IR+)
- Google EDLA certified
- 40-point infrared touch
- 4K UHD IPS panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Google EDLA certified
Google apps, accounts and files run directly on the display under Google's Enterprise Device License Agreement.
02
40-point infrared touch
PureTouch-IR+ touch with 40 touch points, 32-point writing and palm rejection.
03
4K UHD IPS panel
3840 x 2160 resolution, 500 nits typical brightness and 1,200:1 static contrast.
04
Android 14 platform
iiWare 21E runs Android 14 with an octa-core RK3576 processor, 8 GB RAM and 128 GB storage.
05
Wireless sharing
iiShare connects Windows, iOS and Android devices to the display without cables.
06
Device management
iiControl (DMS) gives IT a unified way to manage terminal equipment across a site.
07
Kiosk mode and OPS slot
Kiosk mode is built in, and an Intel OPS 80-pin slot accepts a PC module.
08
Integrated speakers
Two 20 W front-facing speakers and a 20 W subwoofer on the rear.
Specifications
32 specificationsGeneral
Key FeaturesGoogle EDLA certified, 40-point touch, 4K UHD, Android 14 (iiWare 21E), iiControl device management, iiShare wireless sharing, kiosk mode, OPS slot
ModelTE9813A-B2AG
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth10-bit (8-bit + Hi-FRC)
Color GamutNTSC 72%
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size98 inch
Touch Accuracy±1 mm
Touch Points40-point touch, 32-point writing
Touch Response Time5 ms
Touch TechnologyInfrared (PureTouch-IR+)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14 (iiWare 21E)
ProcessorRockchip RK3576 octa-core
RAM8 GB
Storage128 GB
Audio
Speaker Output2 x 20 W front, 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 2, RJ45 LAN × 2
Wi-FiWi-Fi 6E
Power
Power Consumption303 W (typical)
Physical
Dimensions2235.4 x 1326 x 103 mm
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight109.6 kg (without box)
Compliance
CertificationsCB, CE, TÜV, EAC, RoHS, ErP, WEEE, REACH
Warranty5 years
Downloads
Manufacturer documents for the iiyama ProLite 98-inch 4K Interactive Flat Panel – TE9813A-B2AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the iiyama TE9813A-B2AG?
The TE9813A-B2AG has a 98-inch diagonal IPS panel with 3840 x 2160 (4K UHD) resolution in a 16:9 aspect ratio. Panel brightness is 500 nits, static contrast is 1,200:1 and the viewing angle is 178 degrees horizontally and vertically.
How many touch points does it support, and does it work with a stylus?
Yes. It supports 40 touch points and 32-point writing when the operating system allows it. The infrared touch works with a passive pen, a finger or a gloved hand, and palm rejection is included.
Does it run its own software for apps and wireless sharing?
Yes. It runs Android 14 with iiWare 21E, which includes Google EDLA apps, iiControl device management, a whiteboard, a browser, cloud drive access and iiShare wireless sharing for Windows, iOS and Android devices.
Can it be wall-mounted, and what VESA pattern does it use?
Yes. The TE9813A-B2AG uses an 800 x 600 mm VESA pattern. It weighs 109.6 kg without its box, so the wall structure and mount must be rated for that load. Procure.ae can advise on installation.
Is the TE9813A-B2AG suited to large classrooms and boardrooms?
Yes. The 98-inch screen is built for education and enterprise rooms where groups view and annotate together. The 178-degree viewing angle and 1,200:1 contrast suit wide seating areas. Its 40 touch points support multi-user touch interaction.
