IIYAMADigital SignageSKU LH9252UWS-B1AG

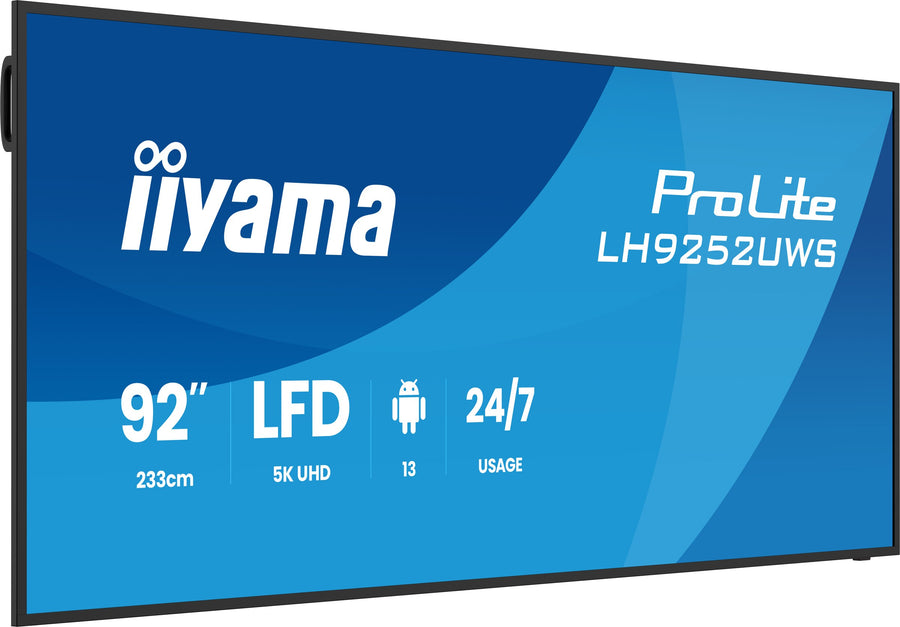

iiyama ProLite 92-inch 5K UltraWide Signage Display – LH9252UWS-B1AG
The iiyama ProLite LH9252UWS-B1AG is a 92-inch 5K UltraWide display with a 21:9 aspect ratio for collaborative workspaces, panoramic signage and presentation rooms. It offers 5120 x 2160 resolution, Android 13 with iiyama DMS, and an OPS slot for an optional Windows PC. Procure.ae is an authorised reseller of iiyama and supplies the LH9252UWS-B1AG across the UAE.
The LH9252UWS-B1AG has a 5120 x 2160 VA panel with 500 cd/m² brightness, 5,000:1 static and dynamic contrast and a 6.5 ms response time (GTG). Colour support is 8-bit with Hi-FRC. One HDMI input and one DisplayPort input carry 5120 x 2160 at 60 Hz, and three further HDMI inputs carry 3840 x 2160 at 60 Hz. The built-in speakers are 2 x 20 W with a 20 W subwoofer, and Wi-Fi 6E with Bluetooth 5.2 is included.
The display suits collaborative workspaces, digital signage and immersive presentation rooms. It runs in landscape or portrait, mounts with an 800 x 600 mm VESA pattern and supports kiosk mode. Two RJ45 ports at 1000 Mbps and an RS-232C control input allow network and serial management, while iiyama DMS and iiyama Share handle device management and wireless sharing. An OPS slot accepts the optional Windows IoT PC.
Screen Size
92 inch
Resolution
5120 x 2160 (5K UltraWide)
Brightness
500 nits
Type
Ultra-Wide Signage Display
- 5K UltraWide panel
- Android 13 platform
- Device management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
5K UltraWide panel
5120 x 2160 at 21:9 with 500 cd/m² brightness.
02
Android 13 platform
Installed apps run directly on the display.
03
Device management
iiyama DMS manages the display across the network.
04
Wireless sharing
iiyama Share and EShare with Wi-Fi 6E and Bluetooth 5.2.
05
OPS slot
Accepts the optional Intel OPS PC for Windows IoT.
06
Built-in speakers
2 x 20 W speakers with a 20 W subwoofer.
07
Kiosk mode
Supported by the display's Android system.
08
Flexible installation
Landscape or portrait with an 800 x 600 mm VESA pattern.
Specifications
33 specificationsGeneral
Key FeaturesAndroid 13 OS, iiyama DMS, iiyama Share and EShare, Wi-Fi 6E and Bluetooth 5.2, OPS slot for optional Windows PC, kiosk mode, built-in speakers with subwoofer, 24/7 operation
ModelLH9252UWS-B1AG
TypeUltra-Wide Signage Display
Display
Aspect Ratio21:9
Bezel Size14.9 mm (all sides)
Blue Light FilterYes
Brightness500 nits
Color Depth8-bit + Hi-FRC
Contrast Ratio5,000:1
OrientationLandscape, portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution5120 x 2160 (5K UltraWide)
Response Time6.5 ms
Screen Size92 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 13
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 × 20 W plus 20 W subwoofer
Connectivity
BluetoothBluetooth 5.2
HDMI Inputs4 (HDMI 1 at 5120 x 2160; HDMI 2 to 4 at 3840 x 2160, all 60 Hz)
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort in × 1, USB-C in × 1, HDMI out × 1, RJ45 (LAN) × 2, RS-232C in × 1, OPS slot × 1, audio in and out (3.5 mm)
Wi-FiWi-Fi 6E
Power
Power Consumption201 W (typical)
Standby Power0.5 W
Physical
Dimensions2182 x 943.8 x 85.2 mm
Duty Cycle24/7
FinishAnti-glare coated glass, matte finish
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight44 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 92-inch 5K UltraWide Signage Display – LH9252UWS-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution does the LH9252UWS-B1AG support?
Its native resolution is 5120 x 2160 (5K) at 60 Hz on HDMI 1 and on its DisplayPort input. HDMI 2, 3 and 4 run at 3840 x 2160 at 60 Hz, and the display uses a 21:9 aspect ratio with 5,000:1 static contrast.
Can I add a Windows PC to it?
Yes, through the OPS slot. The display has an Intel OPS 80-pin slot that takes the optional OPS PC, which the manufacturer describes as a Windows IoT option. The OPS PC is an optional extra, so it must be specified separately.
Is it suitable for portrait mounting?
Yes. It runs in landscape or portrait orientation and uses an 800 x 600 mm VESA pattern. The housing measures 2182 x 943.8 x 85.2 mm and weighs 44 kg without its box, so confirm the wall structure before mounting.
Can it be managed over a network or by serial control?
Yes. It has two RJ45 LAN ports at 1000 Mbps for in and out connection, Wi-Fi 6E, and an RS-232C control input. iiyama DMS handles device management over the network.
Does it have built-in speakers?
Yes. The display has two 20 W speakers with a 20 W subwoofer. It also has a 3.5 mm audio input and a 3.5 mm audio output, so external sound can be connected.
Can I buy the LH9252UWS-B1AG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
