IIYAMAInteractive Flat PanelsSKU TE8613A-B2AG

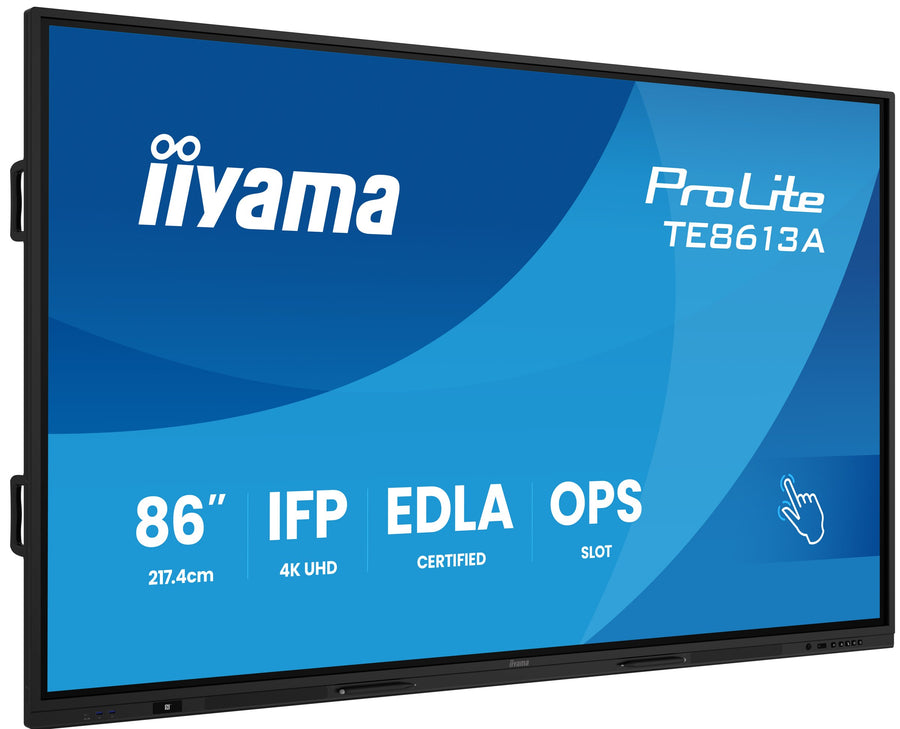

iiyama ProLite 86-inch 4K UHD Interactive Flat Panel – TE8613A-B2AG
The iiyama ProLite TE8613A-B2AG is an 86-inch 4K UHD interactive flat panel for classrooms, boardrooms and training rooms. It has a 3840 x 2160 IPS panel rated at 500 nits, PureTouch-IR+ infrared touch with 40 touch points, 8 GB RAM and Google EDLA certification on Android 14. Procure.ae supplies it across the UAE.
The 86-inch IPS panel delivers 3840 x 2160 resolution, 500 cd/m² typical brightness, 1,200:1 static contrast and an 8 ms response time. PureTouch-IR+ supports 40 touch points, with 10-point writing on Windows and Linux and 32-point touch on Android, plus 5 ms touch response and ±1 mm accuracy. Zero-Gap Air Bonding is designed to eliminate parallax. The octa-core RK3576 processor, 8 GB RAM and 128 GB storage run iiWare 21E, which includes Google EDLA, a whiteboard, a web browser, cloud drives and iiShare. Two 20 W speakers and a 20 W subwoofer are built in.
The 86-inch size suits meeting and training rooms where a group views one large screen. HDMI 2.0, DisplayPort 1.2 and USB-C inputs take laptop feeds, and the front USB-C input supports 100 W power delivery. Two RJ45 ports, RS-232c control and an Intel OPS slot support network and room-system integration. The 800 x 600 mm VESA pattern requires a mount rated for the 63.8 kg unit. Compared with the TE8615A-B2AG, this model lists 500 nits instead of 550 nits and a 282 W typical power draw instead of 300 W.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- PureTouch-IR+ touch
- 4K UHD IPS panel
- Google EDLA certified
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
PureTouch-IR+ touch
40 touch points, 5 ms response and palm rejection.
02
4K UHD IPS panel
3840 x 2160 resolution with 500 cd/m² typical brightness.
03
Google EDLA certified
Android 14 with iiWare 21E and Google apps access.
04
Zero-Gap Air Bonding
Bonded glass designed to eliminate parallax.
05
Kiosk mode
Kiosk operation for shared and public-facing displays.
06
Wireless presentation
iiShare and EShare for Windows, iOS and Android.
07
Built-in Wi-Fi 6E
Wi-Fi 6E and Bluetooth 5.0 connectivity.
08
Integrated audio
Two 20 W speakers and a 20 W subwoofer.
Specifications
40 specificationsGeneral
Key FeaturesGoogle EDLA certified, 4K UHD, PureTouch-IR+ with palm rejection, Zero-Gap Air Bonding, kiosk mode, iiShare wireless presentation, Wi-Fi 6E, PIR motion sensor
ModelTE8613A-B2AG
TypeInteractive Flat Panel
What's in the BoxRemote control, power, USB and HDMI cables (3 m each), quick start and safety guides
Display
Aspect Ratio16:9
Bezel Size16.5 / 16.5 / 41 mm (sides / top / bottom)
Blue Light FilterYes
Brightness500 nits
Color Depth10-bit (8-bit + Hi-FRC)
Color GamutNTSC 72%
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch Response Time5 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorRK3576 octa-core (4 x A72 at 2.2 GHz + 4 x A53 at 1.8 GHz)
RAM8 GB
Storage128 GB
Audio
Speaker Output2 x 20 W + 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 2, HDMI Out × 1, USB-C Out × 1, RJ45 LAN × 2, OPS Slot × 1, RS-232c × 1
USB PortsUSB 3.2 Gen 1 × 4, USB 2.0 × 2
Wi-FiWi-Fi 6E
Power
Power Consumption282 W (typical)
Physical
Dimensions1955.6 x 1154 x 87.1 mm
Duty Cycle24/7 (recommended maximum 18 hours per day)
FinishMatte black bezel
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight63.8 kg
Compliance
CertificationsCB, CE, TÜV-GS, EAC, RoHS, ErP, WEEE, REACH
Warranty5 years
Downloads
Manufacturer documents for the iiyama ProLite 86-inch 4K UHD Interactive Flat Panel – TE8613A-B2AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the size and resolution of the TE8613A-B2AG?
It has an 86-inch (85.6-inch diagonal, 217.4 cm) IPS panel with 3840 x 2160 native resolution, a 16:9 aspect ratio and 500 cd/m² typical brightness. Static contrast is 1,200:1 and response time is 8 ms (GTG). Colour support is 10-bit (8-bit + Hi-FRC) with NTSC 72% gamut.
Does the touch work with Windows and Linux?
Yes. The manufacturer states the display is plug and play with Windows and Linux. Touch supports 10-point writing on supported operating systems and 32-point touch on Android. Driver instructions for each system are in the downloads section of the manufacturer's website.
What mounting does the TE8613A-B2AG need?
It uses an 800 x 600 mm VESA pattern. The unit weighs 63.8 kg without its box and 76.5 kg with it, and measures 1955.6 x 1154 x 87.1 mm. Confirm the mount's rated load covers the weight before installation. The manufacturer lists landscape orientation and 0 to 40 °C operation.
Which inputs and outputs does it have?
It has two HDMI 2.0 inputs, one DisplayPort 1.2 input and two USB-C inputs, one of which supports 100 W power delivery. Outputs include HDMI 2.0 and USB-C. Two RJ45 LAN ports support network connection, and an RS-232c port handles control.
Does it include wireless presentation and apps?
Yes. iiWare 21E runs Android 14 with Google EDLA and includes iiShare for wireless presentation, EShare for Windows, iOS and Android devices, a whiteboard, a web browser, a file manager and cloud drives. iiControl (DMS) provides remote device management.
Can I buy the TE8613A-B2AG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
