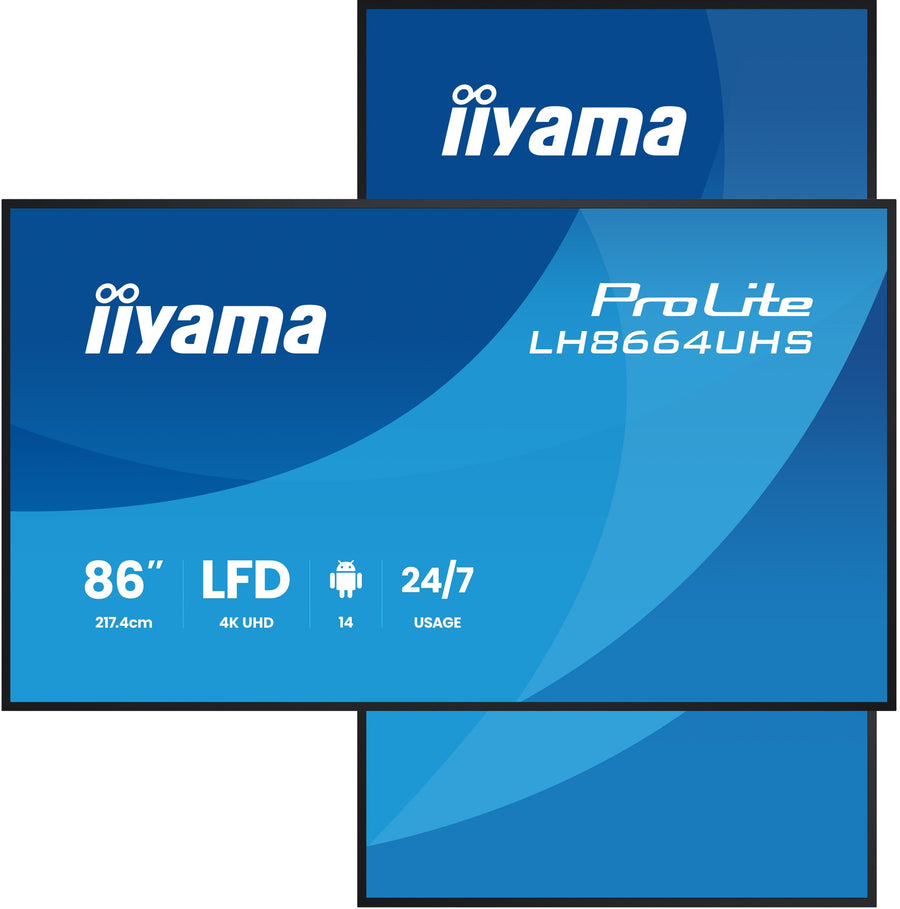

iiyama ProLite 86-inch 4K UHD Digital Signage Display – LH8664UHS-B3AG
The iiyama ProLite LH8664UHS-B3AG is an 86-inch 4K UHD digital signage display for retail, corporate, hospitality and educational settings. It has a 500 nits IPS panel, Android 14 with iiSignage² and built-in Wi-Fi 5 for remote content delivery. Procure.ae is an authorised reseller of iiyama and supplies the LH8664UHS-B3AG across the UAE.
The LH8664UHS-B3AG uses a 3840 x 2160 IPS panel with 500 cd/m² brightness, 1,200:1 static contrast and an 8 ms response time (GTG). Its 178° horizontal and vertical viewing angles keep content visible from wide positions. Two HDMI 2.0 inputs, a USB-C port with DP Alt 1.2 and 15 W power delivery, and a built-in USB hub connect sources and peripherals. Android 14 runs on the panel, so iiSignage², iiControl, iiShare, EShare and FailOver run directly on the display.
The display is built for continuous signage use, with 24/7 operation, anti image retention and a 0 to 40 °C operating range. HDMI 1 supports CEC and ARC, and HDMI 2 supports CEC, so it works with connected AV equipment. RS-232C and RJ45 LAN ports allow monitor control, and the 800 x 600 mm VESA pattern suits wall mounts. Compared with the 75-inch LH7566UHSB-B1AG, this model is larger and has a lower panel brightness of 500 cd/m² against 800 cd/m².
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Large-format 4K panel
- Android 14 platform
- Content management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large-format 4K panel
86-inch 3840 x 2160 IPS display at 500 cd/m².
02
Android 14 platform
Apps install directly on the display.
03
Content management
iiSignage² CMS manages content remotely.
04
Device management
iiControl DMS manages terminal equipment across a network.
05
Wireless presentation
iiShare and EShare with built-in Wi-Fi 5 at 2.4 GHz and 5 GHz.
06
Automatic input failover
FailOver switches to the next available input when there is no signal.
07
Anti image retention
Included for displays that run static content for long periods.
08

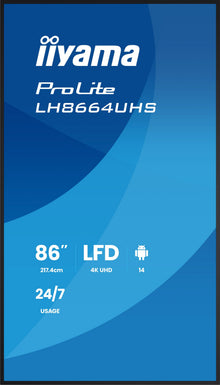

Flexible orientation
Landscape or portrait with an 800 x 600 mm VESA pattern.
Specifications
33 specificationsGeneral
Key FeaturesAndroid 14 OS, iiSignage² CMS, iiControl DMS, iiShare and EShare, FailOver input switching, 24/7 operation, anti image retention, landscape or portrait
ModelLH8664UHS-B3AG
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size21.5 mm (sides), 22 mm (top and bottom)
Brightness500 nits
Color Depth8-bit + FRC
Color GamutNTSC 72%
Contrast Ratio1,200:1
OrientationLandscape, portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 × 16 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI × 2, RJ45 (LAN) × 1, RS-232C × 2, IR × 2, 3.5 mm audio out × 1
USB PortsUSB 2.0 × 2, USB hub × 1
USB-C PortsUSB-C × 1 (DP Alt 1.2, 15 W PD)
Wi-FiWi-Fi 5 (2.4 GHz / 5 GHz)
Power
Power Consumption277 W (typical)
Standby Power0.5 W
Physical
Dimensions1937.8 x 1108.8 x 79.6 mm
Duty Cycle24/7
FinishBlack, matte bezel
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight47.9 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, EPEAT, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 86-inch 4K UHD Digital Signage Display – LH8664UHS-B3AG — datasheets, manuals, drawings and certificates.
- Datasheet – LH8664UHS-B3AG
- User manual – LH8664UHS-B3AG
- Drawing – LH8664UHS-B3AG
- Control protocol (RS232 / LAN) – LHxx64UHS series
- Certificate / compliance – LH8664UHS-B3AG
- Energy label – LH8664UHS-B3AG
- Warranty – LH8664UHS-B3AG
- EShare Network Requirements v7.4-e
- ii iisignage2 whitepaper A4 EN (09.23)
Questions
Can’t find your answer? Ask on WhatsApp
Is the LH8664UHS-B3AG rated for 24/7 operation?
Yes. The manufacturer rates the display for 24/7 non-stop operation, with a 0 to 40 °C operating range and anti image retention. It has a fanless design, and its IPS panel is rated at 500 cd/m² with 1,200:1 static contrast.
Does it support portrait orientation?
Yes. The display supports both landscape and portrait orientation, so it can run vertical menu boards or wayfinding content. Its 800 x 600 mm VESA pattern supports wall and stand mounting.
Can it connect to a PC and a media player at the same time?
Yes. The display has two HDMI 2.0 inputs, a USB-C input with DP Alt 1.2 and 15 W power delivery, and two USB 2.0 ports. You can switch inputs manually or let FailOver select the next available source.
Can it be controlled over a network or by serial connection?
Yes. The display has an RJ45 LAN port, RS-232C input and output, and IR input and loop-through. These monitor control ports let a control system manage the display, and the RS-232C output and IR loop-through pass control on to a second display.
What power supply does the display need?
It runs on 100–240 V AC, 50/60 Hz. Typical power use is 277 W, with 0.5 W in standby and 0.3 W in off mode. The Energy Star 8.0 on-mode figure at 230 V is 132.62 W.
