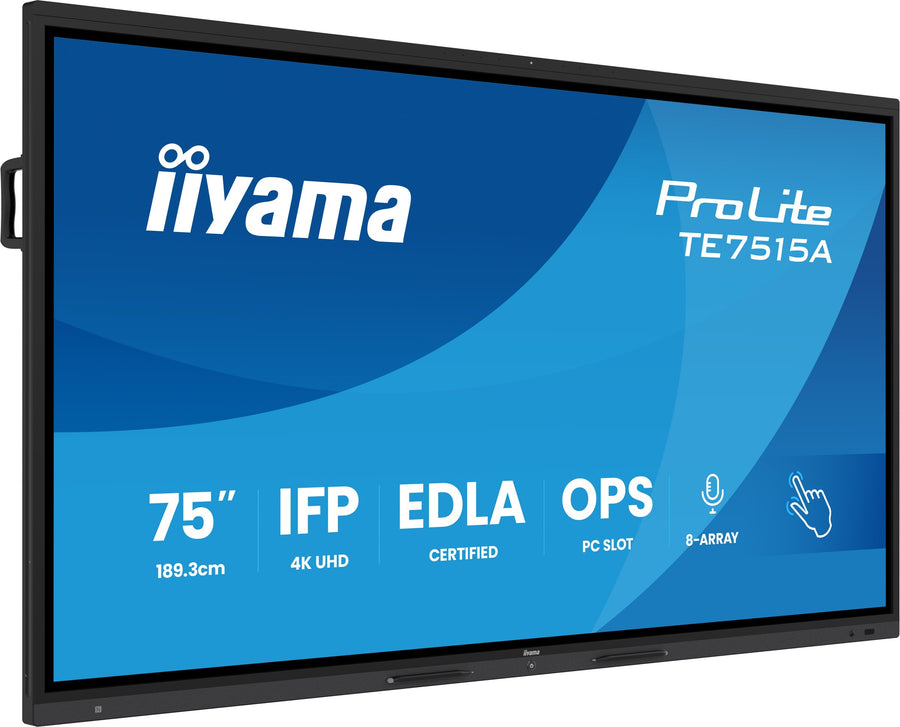

iiyama ProLite 75-inch 4K UHD Interactive Flat Panel – TE7515A-B2AG
The iiyama ProLite TE7515A-B2AG is a 75-inch 4K UHD interactive flat panel with a VA optically bonded screen for classrooms, boardrooms and meeting rooms. It offers 550 nits, 5,000:1 static contrast, 40-point infrared touch and an 8-array microphone on Android 14. Procure.ae supplies it across the UAE.
The 75-inch VA panel delivers 3840 x 2160 resolution at 550 cd/m², 5,000:1 static contrast and a 6.5 ms response time, and the display is rated flicker-free. Optical Bonding is applied to the touch glass. DeepContrast-IR++ infrared touch supports 40 touch points, 32-point writing on supported systems, 5 ms touch response and ±1 mm accuracy, with palm rejection. An 8-array microphone with 8 m voice pickup and two 20 W speakers with a 20 W subwoofer are built in. The RK3576 processor with 8 GB RAM and 128 GB storage runs iiWare 21E with Google EDLA.
The TE7515A-B2AG suits classrooms, boardrooms and meeting rooms, and its kiosk mode and picture-in-picture support shared displays. The front has no buttons apart from a discreet power button, and integrated pen holders keep styluses close to the board. HDMI 2.0, DisplayPort 1.2 and USB-C inputs connect laptops, and an OPS slot takes an Intel OPS module. The 800 x 400 mm VESA pattern requires a mount rated for 54.6 kg. Compared with the TE7513A-B2AG, this model adds a VA panel at 550 nits, 5,000:1 contrast and an 8-array microphone.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
550 nits
Touch Technology
Infrared
- DeepContrast-IR++ touch
- 5,000:1 VA panel
- Optical Bonding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
DeepContrast-IR++ touch
40 touch points, 5 ms response and palm rejection.
02
5,000:1 VA panel
550 nits and 6.5 ms response on a 4K UHD screen.
03
Optical Bonding
Bonded glass for a close writing surface.
04
8-array microphone
Voice pickup up to 8 m for meetings and lessons.
05
Kiosk mode
Kiosk operation and picture-in-picture for shared displays.
06
Flicker-free display
Rated flicker-free in the manufacturer's specifications.
07
Google EDLA certified
Android 14 with iiWare 21E and Google apps access.
08
Wi-Fi 6E connectivity
Built-in Wi-Fi 6E and Bluetooth 5.0.
Specifications
41 specificationsGeneral
Key FeaturesGoogle EDLA certified, 4K UHD, 5,000:1 contrast, Optical Bonding, 8-array microphone, kiosk mode, picture-in-picture, Wi-Fi 6E
ModelTE7515A-B2AG
TypeInteractive Flat Panel
What's in the BoxRemote control, power, USB and HDMI cables (3 m each), quick start and safety guides
Display
Aspect Ratio16:9
Bezel Size16.7 / 34.3 / 46.7 mm (sides / top / bottom)
Blue Light FilterYes
Brightness550 nits
Color Depth10-bit (8-bit + Hi-FRC)
Color GamutNTSC 72%
Contrast Ratio5,000:1
OrientationLandscape
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch Response Time5 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorRK3576 octa-core (4 x A72 + 4 x A53)
RAM8 GB
Storage128 GB
Audio
Microphone8-array, 8 m voice pickup
Speaker Output2 x 20 W + 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 1, HDMI Out × 1, USB-C Out × 1, RJ45 LAN × 2, OPS Slot × 1, RS-232c × 1
USB PortsUSB 3.2 Gen 1 × 2, USB 2.0 × 1, USB-C 2.0 (100 W PD) × 1
Wi-FiWi-Fi 6E
Power
Power Consumption191 W (typical)
Physical
Dimensions1710.2 x 1036.3 x 87.1 mm
Duty Cycle24/7 (recommended maximum 18 hours per day)
FinishMatte black, sandblasted oxidation
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight54.6 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, EPEAT Bronze, REACH
Warranty5 years
Downloads
Manufacturer documents for the iiyama ProLite 75-inch 4K UHD Interactive Flat Panel – TE7515A-B2AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the panel specifications of the TE7515A-B2AG?
It has a 75-inch VA panel with 3840 x 2160 resolution, a 16:9 aspect ratio and 550 cd/m² brightness. Static contrast is 5,000:1 and response time is 6.5 ms (GTG). Colour support is 10-bit (8-bit + Hi-FRC) with NTSC 72% gamut. The touch glass uses Optical Bonding, and the display is rated flicker-free.
How does the touch perform?
It uses DeepContrast-IR++ infrared touch with 40 touch points, 32-point writing on supported systems, 5 ms touch response, a 200 Hz scan rate and ±1 mm accuracy. Palm rejection is included. Stylus, finger and glove input are supported, including passive pens and opaque objects.
Does it have a built-in microphone?
Yes. An 8-array microphone with 8 m voice pickup is built in, and a mini-jack microphone input accepts external microphones. Two 20 W front speakers and a 20 W subwoofer complete the audio system.
Can it run in kiosk mode or show picture-in-picture?
Yes. Kiosk mode and picture-in-picture are both supported. Press and hold the power button for 3 to 5 seconds to switch the display on or off, and a short press opens the on-screen Home shortcut.
What mounting and weight should I plan for?
The VESA pattern is 800 x 400 mm. The unit weighs 54.6 kg without its box and 67.6 kg with it, with dimensions of 1710.2 x 1036.3 x 87.1 mm. Confirm the mount's rated load before installation.
