IIYAMAInteractive Flat PanelsSKU TN7505A-B1AG

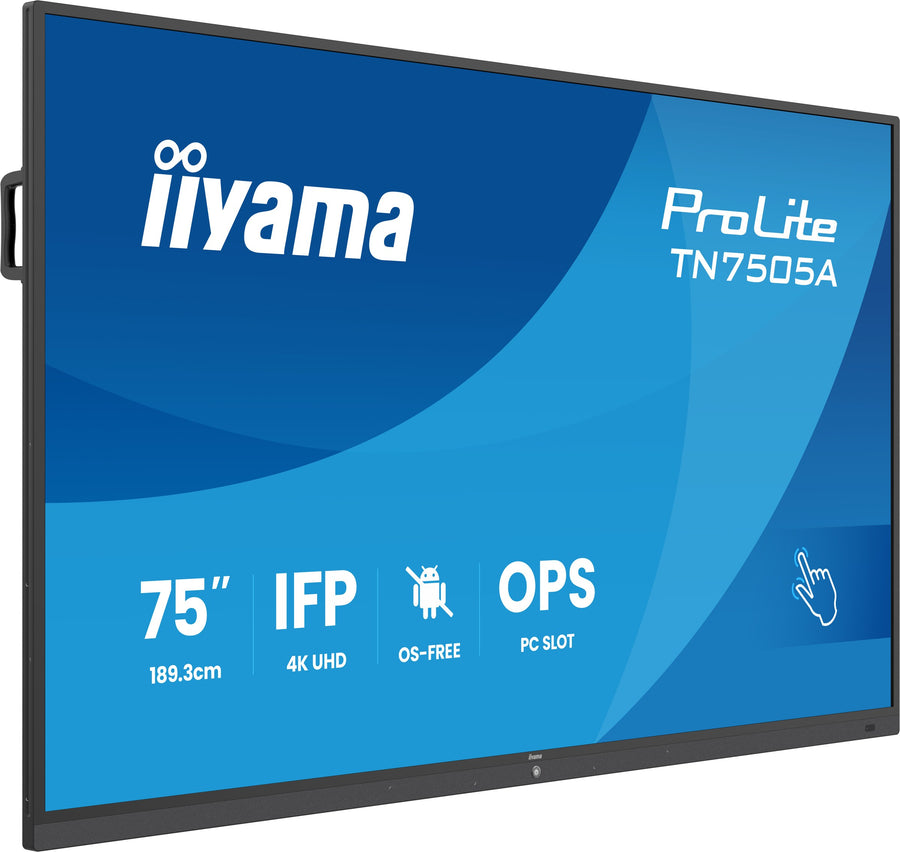

iiyama ProLite 75-inch 4K Interactive Flat Panel – TN7505A-B1AG
The iiyama TN7505A-B1AG is a 75-inch 4K UHD interactive flat panel with optical bonding and no operating system. It offers 40-point infrared touch, 450 nits typical brightness and built-in annotation. It suits security-focused offices, meeting rooms and classrooms. Procure.ae supplies the iiyama TN7505A-B1AG across the UAE.
The TN7505A-B1AG uses an optically bonded 3840 x 2160 IPS panel with 450 nits typical brightness, 1,200:1 static contrast and 5 ms response time. DeepContrast-IR+ touch provides 40 touch points, palm rejection and ±1 mm accuracy, and the anti-glare glass has an anti-bacterial coating. Built-in annotation allows pen writing over connected content. Two 20 W speakers and a 20 W subwoofer are included.
The display has no operating system to install, update or secure, so it runs connected sources such as laptops, PCs and OPS modules. Video inputs are HDMI, DisplayPort, USB-C with 65 W Power Delivery and VGA. RS-232c and IR loop-through control with two RJ45 LAN ports allow integration into room control systems. PiP and PbP modes support two sources side by side. The 800 x 400 mm VESA pattern suits large-format wall brackets.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Touch Technology
Infrared (DeepContrast-IR+)
- No operating system
- Optical bonding glass
- 40-point infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
No operating system
No built-in OS to manage or update, which suits controlled IT environments.
02
Optical bonding glass
Anti-glare glass with optical bonding and an anti-bacterial coating on the touch surface.
03
40-point infrared touch
DeepContrast-IR+ touch with 40 touch points, palm rejection and ±1 mm accuracy.
04
4K UHD IPS panel
3840 x 2160 resolution, 450 nits typical brightness and 1,200:1 static contrast.
05
Built-in annotation
Pen writing over any on-screen content, in real time, for presentations.
06
OPS slot and USB-C
Intel OPS 80 slot, and USB-C with 65 W Power Delivery, DP-Alt and touch.
07
Room control
RS-232c and IR loop-through, plus two RJ45 LAN ports (in/out).
08
Integrated speakers
Two 20 W speakers with a 20 W subwoofer for presentation audio.
Specifications
22 specificationsGeneral
Key FeaturesNo operating system, 40-point infrared touch, 4K UHD, optical bonding, built-in annotation, OPS slot, PiP and PbP, RS-232c control
ModelTN7505A-B1AG
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits (typical)
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size75 inch
Touch Accuracy±1 mm
Touch TechnologyInfrared (DeepContrast-IR+)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemNone (no operating system)
Audio
Speaker Output2 x 20 W, 20 W subwoofer
Connectivity
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 1, VGA In × 1, RJ45 LAN × 2, RS-232c × 1
Power
Power Consumption175 W (typical)
Physical
Dimensions1710.2 x 1036.3 x 120.4 mm
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight54.5 kg (without box)
Compliance
CertificationsCB, CE, TÜV, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 75-inch 4K Interactive Flat Panel – TN7505A-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TN7505A-B1AG include an operating system?
No. The TN7505A-B1AG has no operating system, so connected laptops, PCs or OPS modules provide the software. This suits organisations that want IT to control every application and update. Touch requires a supported operating system on the connected source.
What is the screen size and resolution?
It is a 75-inch display (74.52-inch diagonal) with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio, 450 nits typical brightness and 1,200:1 static contrast. Viewing angles are 178 degrees horizontally and vertically.
Can it be wall-mounted, and what is its VESA pattern?
Yes. It uses an 800 x 400 mm VESA pattern. The display weighs 54.5 kg without its box and measures 1710.2 x 1036.3 x 120.4 mm, so the wall structure and bracket must be rated for that load.
How does the touch system work, and what does it support?
It uses DeepContrast-IR+ infrared touch with 40 touch points, palm rejection and ±1 mm accuracy. The USB touch interface works with Windows and Linux, and with other supported operating systems.
Can it be controlled by a room control system?
Yes. The RS-232c port and two RJ45 LAN ports (in/out) connect the display to a control system, and the IR loop-through output passes remote signals to other displays. The package also includes a remote control with batteries.
Can I buy the TN7505A-B1AG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
