IIYAMAInteractive Flat PanelsSKU TE6513A-B3AG

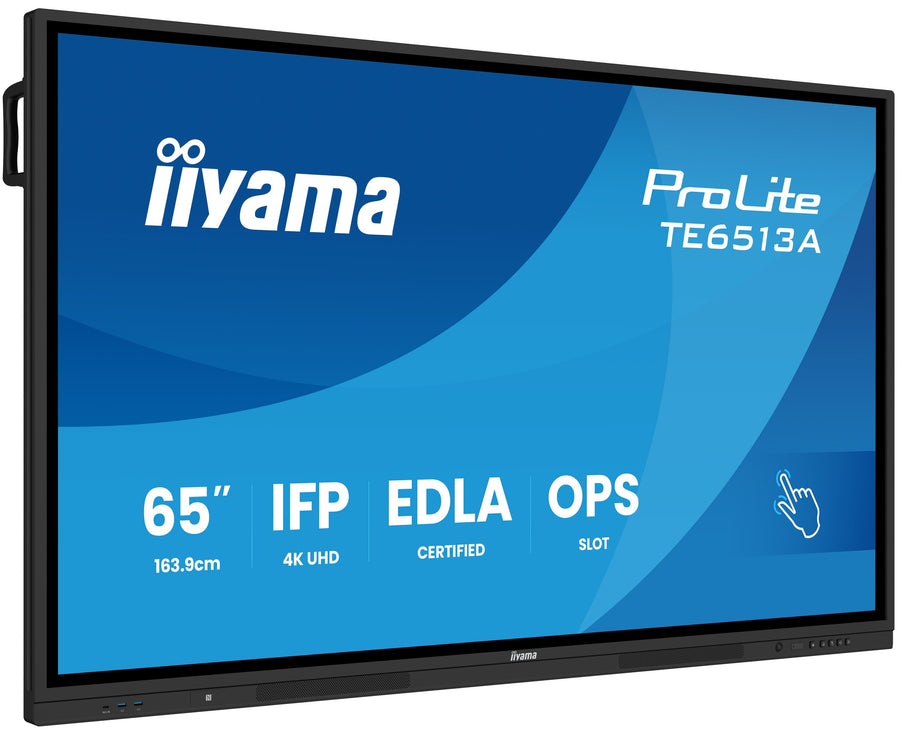

iiyama ProLite 65-inch 4K UHD Interactive Flat Panel – TE6513A-B3AG
The iiyama ProLite TE6513A-B3AG is a 65-inch 4K UHD interactive flat panel for education and enterprise rooms. It has a 3840 x 2160 IPS panel rated at 500 nits, 40-point infrared touch with palm rejection, and Google EDLA certification on Android 14. Procure.ae supplies it across the UAE.
The panel delivers 3840 x 2160 resolution, 500 cd/m² typical brightness and 1,200:1 static contrast, with an 8 ms response time. The PureTouch-IR+ system supports 40 touch points, 10-point writing on Windows and Linux and 32-point touch on Android, with a 200 Hz scan rate and 5 ms touch response. Zero-Gap Air Bonding is designed to eliminate parallax. The RK3576 octa-core processor with 6 GB RAM and 128 GB storage runs iiWare 21E, which includes Google EDLA, a whiteboard, a web browser, cloud drives and iiShare. Two 20 W speakers and a 20 W subwoofer are built in.
This model fits education and enterprise rooms where staff annotate, share content and play media from one screen. HDMI 2.0, DisplayPort 1.2 and USB-C inputs connect laptops and media players, with 100 W power delivery on the front USB-C input. Two RJ45 LAN ports and an Intel OPS slot support network connection and computing modules. The 600 x 400 mm VESA pattern suits wall and stand mounts. Against the TE6513A-B2AG, this B3AG variant lists 6 GB RAM, 144 W typical power draw and a deeper bottom bezel of 46.7 mm.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- PureTouch-IR+ touch
- 4K UHD IPS panel
- Google EDLA certified
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
PureTouch-IR+ touch
40 touch points, 5 ms response and palm rejection.
02
4K UHD IPS panel
3840 x 2160 resolution with 500 cd/m² typical brightness.
03
Google EDLA certified
Android 14 with iiWare 21E and Google apps access.
04
Zero-Gap Air Bonding
Bonded glass designed to eliminate parallax.
05
Wireless presentation
iiShare and EShare for Windows, iOS and Android.
06
Wi-Fi 6E connectivity
Built-in Wi-Fi 6E and Bluetooth 5.0.
07
Integrated audio
Two 20 W speakers and a 20 W subwoofer.
08
Connectivity options
Two HDMI, DisplayPort, two USB-C inputs and two LAN ports.
Specifications
40 specificationsGeneral
Key FeaturesGoogle EDLA certified, 4K UHD, PureTouch-IR+ with palm rejection, 40-point touch, Zero-Gap Air Bonding, Wi-Fi 6E, iiShare wireless presentation, PIR motion sensor
ModelTE6513A-B3AG
TypeInteractive Flat Panel
What's in the BoxRemote control, power, USB and HDMI cables (3 m each), quick start and safety guides
Display
Aspect Ratio16:9
Bezel Size16.7 / 14.1 / 46.7 mm (sides / top / bottom)
Blue Light FilterYes
Brightness500 nits
Color Depth10-bit (8-bit + Hi-FRC)
Color GamutNTSC 72%
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch Response Time5 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorRK3576 octa-core (4 x A72 + 4 x A53)
RAM6 GB
Storage128 GB
Audio
Speaker Output2 x 20 W + 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 2, HDMI Out × 1, USB-C Out × 1, RJ45 LAN × 2, OPS Slot × 1
USB PortsUSB 3.2 Gen 1 × 4, USB 2.0 × 2
Wi-FiWi-Fi 6E
Power
Power Consumption144 W (typical)
Physical
Dimensions1489 x 891.5 x 87 mm
Duty Cycle24/7 (recommended maximum 18 hours per day)
FinishMatte black bezel
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight39.4 kg
Compliance
CertificationsCB, CE, TÜV-GS, EAC, RoHS, ErP, WEEE, REACH
Warranty5 years
Downloads
Manufacturer documents for the iiyama ProLite 65-inch 4K UHD Interactive Flat Panel – TE6513A-B3AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the TE6513A-B3AG?
It has a 65-inch (64.5-inch diagonal) IPS panel with 3840 x 2160 native resolution, a 16:9 aspect ratio and 500 cd/m² typical brightness. Static contrast is 1,200:1 and response time is 8 ms (GTG). Colour support is 10-bit (8-bit + Hi-FRC) with NTSC 72% gamut.
Does the touch work with Windows and Linux?
Yes. The manufacturer states the display is plug and play with Windows and Linux. Touch supports 10-point writing on supported operating systems and 32-point touch on Android. Driver instructions for each operating system are in the downloads section of the manufacturer's website.
What mounting does the TE6513A-B3AG need?
It uses a 600 x 400 mm VESA pattern, so the mount must match that spacing and carry the load. The unit weighs 39.4 kg without its box, with dimensions of 1489 x 891.5 x 87 mm. The manufacturer lists an operating range of 0 to 40 °C and landscape orientation.
Which inputs and outputs does it have?
It has two HDMI 2.0 inputs, one DisplayPort 1.2 input and two USB-C inputs, one of which supports 100 W power delivery. Outputs include HDMI 2.0 and USB-C. Two RJ45 LAN ports support network connection, and an OPS slot takes an Intel OPS computing module.
Does it include wireless presentation and apps?
Yes. iiWare 21E runs Android 14 with Google EDLA and includes iiShare wireless presentation, EShare for Windows, iOS and Android devices, a whiteboard, a web browser, a file manager and cloud drives. The manufacturer also lists iiControl (DMS) for remote device management.
