IIYAMADigital SignageSKU LH6541UHS-B1AG

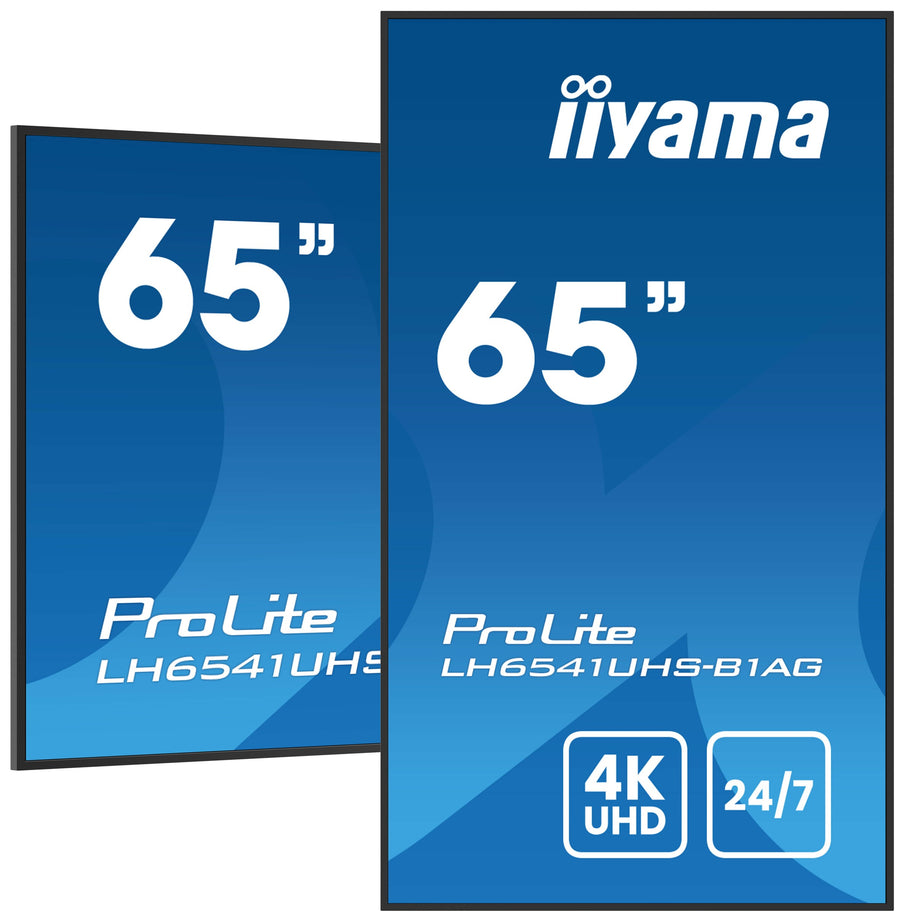

iiyama ProLite 65-inch 4K UHD Digital Signage Display – LH6541UHS-B1AG
The iiyama ProLite LH6541UHS-B1AG is a 65-inch 4K UHD professional digital signage display with a 500 cd/m² VA panel and 24/7 operating time. It has a built-in media player for images, video and music, and suits lobbies, retail and corporate spaces. Procure.ae supplies the LH6541UHS-B1AG across the UAE.
The 3840 x 2160 VA panel delivers 500 cd/m² brightness, 5000:1 static contrast and a 6.5 ms response time, with viewing angles of 178 degrees horizontally and vertically. The anti-glare coated glass has a matte finish with 25% haze to reduce reflections. The 8-bit + FRC panel covers NTSC 72%. Content can play from a USB flash drive or internal memory through the built-in media player, and the display is rated for 24/7 operating time.
The display has three HDMI 2.0 inputs, a USB 2.0 port for the media player, and RS-232C and IR control ports with an IR loop-through. LAN control lets you adjust the on-screen menu over your network, although the manufacturer notes that the control software is not included. It mounts on a 500 x 500 mm VESA pattern and supports landscape and portrait orientation. Media playback is not supported in portrait.
Screen Size
64.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Digital Signage Display
- Built-in media player
- 4K UHD resolution
- 500 cd/m² VA panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Built-in media player
plays images, video and music from USB or internal memory.
02
4K UHD resolution
3840 x 2160 pixels on a 65-inch VA panel.
03
500 cd/m² VA panel
5000:1 static contrast for deep blacks.
04
24/7 operating time
rated for continuous operation.
05
Landscape and portrait
orientation support, with media playback in landscape only.
06
LAN control
adjust the on-screen menu over your network.
07
Three HDMI inputs
HDMI 2.0 inputs at up to 3840 x 2160 at 60 Hz.
08
Anti-glare coating
matte finish with 25% haze to reduce reflections.
Specifications
31 specificationsGeneral
ApplicationLobbies, meeting rooms, retail, corporate reception
Key FeaturesBuilt-in media player, 500 cd/m² VA panel, 4K UHD, 5000:1 contrast, anti-glare glass, 24/7 operating time, LAN control, landscape and portrait
ModelLH6541UHS-B1AG
TypeProfessional Digital Signage Display
Display
Aspect Ratio16:9
Bezel Size12.8 mm (sides, top and bottom)
Brightness500 nits
Color Depth8-bit + FRC
Color GamutNTSC 72%
Contrast Ratio5,000:1

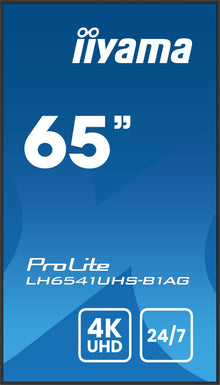

OrientationLandscape, portrait
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size64.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 x 10 W
Connectivity
ConnectivityLAN control (RJ45), RS-232C, IR
HDMI Inputs3 x HDMI 2.0
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 x3, USB 2.0 x1 (media player), RS-232C in x1, RS-232C out x1, RJ45 LAN x1, IR in x1, IR loop-through x1
USB PortsUSB 2.0 x1 (media player)
Power
Power Consumption115 W (typical)
Physical
ColorBlack, glossy
Dimensions1456.5 x 831.5 x 69 mm
Duty Cycle24/7
Operating Temperature0 to 40 °C
VESA Mount500 x 500 mm
Weight17.7 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 65-inch 4K UHD Digital Signage Display – LH6541UHS-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LH6541UHS-B1AG have a built-in media player?
Yes. It has a built-in media player that plays photos, videos and music from a USB flash drive or internal memory. The media player uses the single USB 2.0 port, and media playback is not supported in portrait orientation.
Can the LH6541UHS-B1AG run in portrait mode?
Yes. The display supports both landscape and portrait orientation. The manufacturer's specifications state that media playback is not supported in portrait, so use landscape for media-player content. Procure.ae can confirm the right setup for portrait installations.
What VESA mount does the LH6541UHS-B1AG use?
It uses a 500 x 500 mm VESA pattern. The display is supplied with a remote control, batteries included, and its cables are power, HDMI and RS-232C. Procure.ae can advise on wall and stand options and arrange installation across the UAE.
Can the LH6541UHS-B1AG be controlled over a network?
Yes. It has an RJ45 LAN port that supports LAN control, so you can adjust its on-screen menu through your network. The manufacturer notes that the control software is not included. RS-232C and IR control ports are also fitted.
