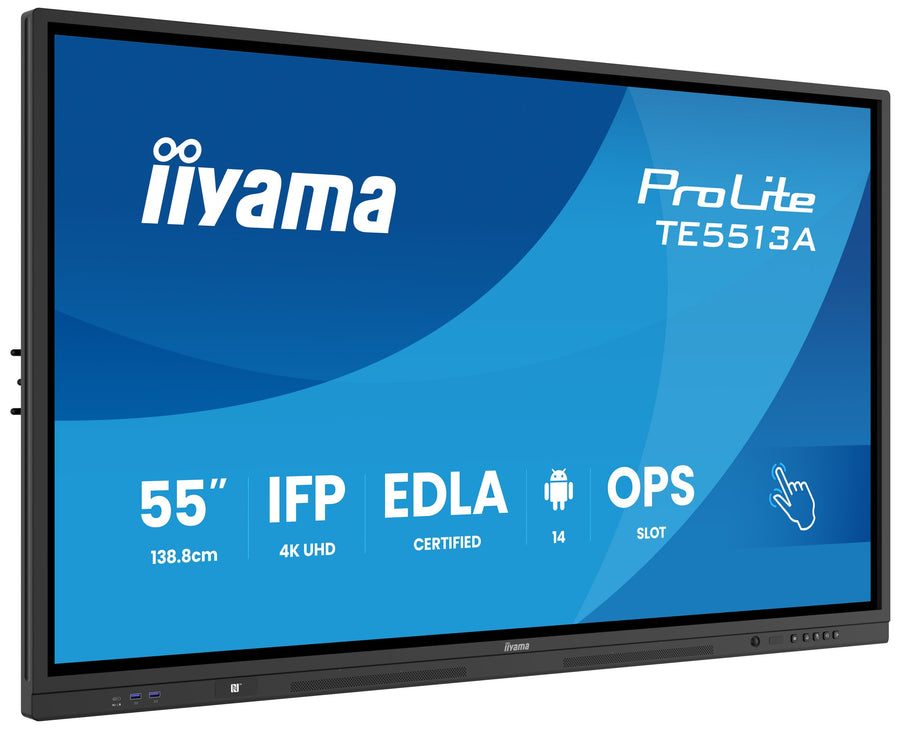

iiyama ProLite 55-inch 4K UHD Interactive Flat Panel – TE5513A-B3AG
The iiyama ProLite TE5513A-B3AG is a 55-inch 4K UHD interactive flat panel for classrooms, huddle rooms and boardrooms. It has a 3840 x 2160 IPS panel rated at 500 nits, infrared touch with 40 touch points and palm rejection, and Google EDLA certification on Android 14. Procure.ae supplies it across the UAE.
The TE5513A-B3AG uses an IPS panel with 3840 x 2160 resolution, 500 cd/m² typical brightness and 1,200:1 static contrast. Its PureTouch-IR+ infrared touch system supports 40 touch points, with 10-point writing on Windows and Linux and 32-point touch on Android, a 200 Hz scan rate and 5 ms touch response. Zero-Gap Air Bonding is designed to eliminate parallax. The built-in iiWare 21E software runs on Android 14 with 6 GB RAM and 128 GB storage, and includes a whiteboard, web browser, cloud drives and iiShare wireless presentation. Two 20 W speakers and a 20 W subwoofer are built in.
The panel suits classrooms, boardrooms and training rooms that need one display for annotation, shared content and video playback. Dual HDMI 2.0 inputs, a DisplayPort 1.2 input and two USB-C inputs (one with 100 W power delivery) connect laptops and media players. Two RJ45 LAN ports, RS-232c control and an Intel OPS slot support network connection and integration. The 400 x 400 mm VESA pattern fits standard wall and stand mounts. The 65-inch and 75-inch TE13A models share its touch system and software.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- PureTouch-IR+ touch
- 4K UHD IPS panel
- Google EDLA certified
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
PureTouch-IR+ touch
40 touch points, 5 ms response and palm rejection.
02
4K UHD IPS panel
3840 x 2160 resolution with 500 cd/m² typical brightness.
03
Google EDLA certified
Android 14 with iiWare 21E and Google apps access.
04
Zero-Gap Air Bonding
Bonded glass designed to eliminate parallax.
05
Wireless presentation
iiShare and EShare for Windows, iOS and Android devices.
06
Wi-Fi 6E connectivity
Built-in Wi-Fi 6E and Bluetooth 5.0.
07
Integrated audio
Two 20 W speakers and a 20 W subwoofer.
08
Ports and control
Two HDMI, DisplayPort, two USB-C inputs and RS-232c control.
Specifications
40 specificationsGeneral
Key FeaturesGoogle EDLA certified, 4K UHD, PureTouch-IR+ with palm rejection, 40-point touch, Zero-Gap Air Bonding, Wi-Fi 6E, iiShare wireless presentation, PIR motion sensor
ModelTE5513A-B3AG
TypeInteractive Flat Panel
What's in the BoxRemote control, power, USB and HDMI cables (3 m each), quick start and safety guides
Display
Aspect Ratio16:9
Bezel Size16.7 / 14.1 / 46.7 mm (sides / top / bottom)
Blue Light FilterYes
Brightness500 nits
Color Depth10-bit (8-bit + Hi-FRC)
Color GamutNTSC 72%
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch Response Time5 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorRK3576 octa-core (4 x A72 + 4 x A53)
RAM6 GB
Storage128 GB
Audio
Speaker Output2 x 20 W + 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 2, HDMI Out × 1, USB-C Out × 1, RJ45 LAN × 2, OPS Slot × 1
USB PortsUSB 3.2 Gen 1 × 4, USB 2.0 × 2
Wi-FiWi-Fi 6E
Power
Power Consumption126 W (typical)
Physical
Dimensions1267 x 765.5 x 117.5 mm
Duty Cycle24/7 (recommended maximum 18 hours per day)
FinishMatte black bezel
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight28.7 kg
Compliance
CertificationsCB, CE, TÜV-GS, EAC, RoHS, WEEE, REACH
Warranty5 years
Downloads
Manufacturer documents for the iiyama ProLite 55-inch 4K UHD Interactive Flat Panel – TE5513A-B3AG — datasheets, manuals, drawings and certificates.
- Datasheet – TE5513A-B3AG
- User manual – TExx13A series
- User manual – TExx13A series
- User manual – TExx13A series
- User manual – iiyama TExx13A series / TExx15A series / TExx18UWI series
- Drawing – TExx13A series
- Energy label – TE5513A-B3AG
- Energy label – TE5513A-B3AG
- Warranty – TE5513A-B3AG
- EShare Network Requirements v7.4-e
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the TE5513A-B3AG?
It has a 55-inch (54.6-inch diagonal) IPS panel with 3840 x 2160 native resolution, a 16:9 aspect ratio and 500 cd/m² typical brightness. Static contrast is 1,200:1 and response time is 8 ms (GTG). The panel supports 10-bit colour (8-bit + Hi-FRC) with NTSC 72% colour gamut.
Does the touch function work with Windows and Linux?
Yes. The manufacturer states the display is plug and play with Windows and Linux. Touch supports 10-point writing on supported operating systems and 32-point touch on Android. Driver instructions for each operating system are listed in the downloads section of the manufacturer's website.
Can the TE5513A-B3AG be wall mounted?
Yes. The VESA mounting pattern is 400 x 400 mm, so the unit fits wall and stand mounts with that pattern. The manufacturer lists landscape orientation and an operating range of 0 to 40 °C. The unit weighs 28.7 kg without its box, so check the mount's load rating before installation.
Which devices can I connect to it?
Laptops and media players connect through two HDMI 2.0 inputs, one DisplayPort 1.2 input and two USB-C inputs, one of which supports 100 W power delivery. The panel also has an HDMI 2.0 output and a USB-C output. Two RJ45 LAN ports support network connection.
Does it support wireless screen sharing and built-in apps?
Yes. iiWare 21E runs Android 14 with Google EDLA and includes iiShare for wireless presentation, EShare for Windows, iOS and Android devices, a whiteboard, a web browser, a file manager and cloud drives. The manufacturer also lists iiControl (DMS) for remote device management.
