IIYAMADigital SignageSKU LH5066UHSB-B1AG

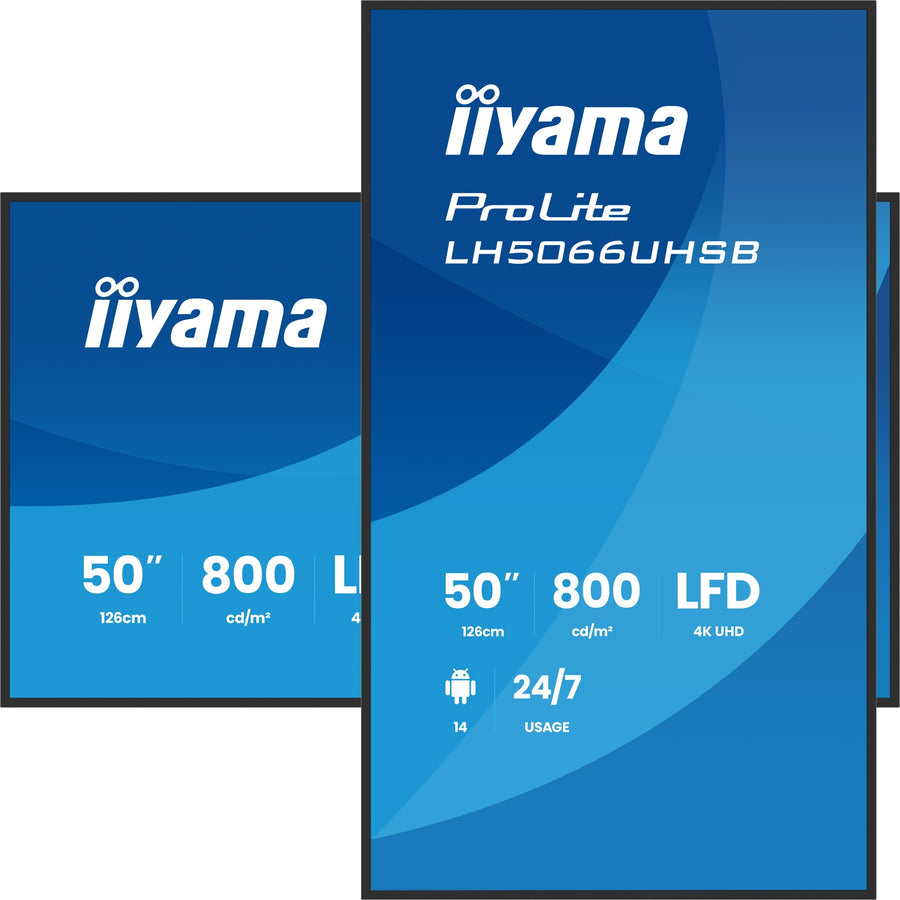

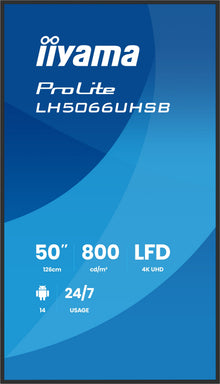

iiyama ProLite 50-inch 4K UHD Digital Signage Display – LH5066UHSB-B1AG
The iiyama ProLite LH5066UHSB-B1AG is a 50-inch 4K UHD digital signage display with an 800 cd/m² IPS panel, Android 14 and built-in WiFi. It suits retail, corporate, hospitality and restaurant spaces that need wide viewing angles and 24/7 operation in landscape or portrait. Procure.ae supplies the LH5066UHSB-B1AG across the UAE.
The 3840 x 2160 IPS panel delivers 800 cd/m² brightness, 1,200:1 static contrast and a 6.5 ms response time, with viewing angles of 178 degrees horizontally and vertically. The anti-glare coated glass has a matte finish with 25% haze. Android 14 runs on the display, so apps install directly on it. iiSignage² manages content remotely, iiControl handles device management and iiShare supports wireless presentation. FailOver switches to the next available input when the default source has no signal.
The display takes two HDMI 2.0 inputs and a USB-C input with DisplayPort Alt mode and 15 W power delivery. It has two RS-232C control outputs and an IR loop-through, so one control source can run several displays. It mounts on a 400 x 300 mm VESA pattern and supports landscape and portrait orientation. The internal power supply accepts 100 to 240 V AC, and the IP5X front rating covers dust protection.
Screen Size
50 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
800 nits
Type
Professional Digital Signage Display
- Android 14 platform
- IPS anti-glare panel
- 800 cd/m² brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
install apps directly on the display.
02
IPS anti-glare panel
matte finish with 25% haze to reduce reflections.
03
800 cd/m² brightness
high-brightness panel for well-lit spaces.
04
4K UHD resolution
3840 x 2160 pixels on a 50-inch screen.
05
iiSignage² CMS
remote management of messages and advertising.
06
FailOver input switching
moves to the next available input when no signal is detected.
07
Landscape and portrait
orientation support for flexible placement.
08
IP5X front protection
dust protection rating on the front of the display.
Specifications
31 specificationsGeneral
ApplicationRetail, corporate, hospitality, restaurants
Key FeaturesAndroid 14, IPS anti-glare panel, 800 cd/m² brightness, iiSignage² CMS, iiControl and iiShare, FailOver input switching, IP5X front protection, 24/7 operation
ModelLH5066UHSB-B1AG
TypeProfessional Digital Signage Display
Display
Aspect Ratio16:9
Bezel Size12.8 mm (sides, top and bottom)
Brightness800 nits
Color Depth8-bit + FRC
Color GamutNTSC 72%
Contrast Ratio1,200:1
OrientationLandscape, portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size50 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
Audio
Speaker Output2 x 10 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 x2, USB-C x1 (DP Alt, 15 W PD), RS-232C in x1, RS-232C out x2, RJ45 LAN x1, IR in x1, IR loop-through x1, USB 2.0 x2, 3.5 mm audio out
Wi-FiWi-Fi 5, 2.4 GHz / 5 GHz
Power
Power Consumption134 W (typical)
Physical
ColorBlack
Dimensions1123.5 x 644.8 x 68.5 mm
Duty Cycle24/7
Operating Temperature0 to 40 °C
VESA Mount400 x 300 mm
Weight10.89 kg
Compliance
CertificationsCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
IP RatingIP5X (front)
Downloads
Manufacturer documents for the iiyama ProLite 50-inch 4K UHD Digital Signage Display – LH5066UHSB-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LH5066UHSB-B1AG run Android?
Yes. The LH5066UHSB-B1AG runs Android 14 and includes iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, a PDF and media player, iiBrowser and a file manager. Apps can be installed directly on the display.
Does the LH5066UHSB-B1AG use an IPS panel?
Yes. It uses an IPS panel rated at 178 degrees horizontally and vertically, with an anti-glare coated glass front that has a matte finish and 25% haze. The 1,200:1 static contrast and 800 cd/m² brightness are listed in the manufacturer's specifications.
What VESA mount does the LH5066UHSB-B1AG use?
It uses a 400 x 300 mm VESA pattern and supports landscape and portrait orientation. Procure.ae can advise on wall and stand options for your site and arrange installation across the UAE.
Can the LH5066UHSB-B1AG be controlled from a building system?
Yes. It has an RS-232C control input, two RS-232C outputs, an RJ45 LAN port and IR control with an IR loop-through. These ports suit integration with room controllers and building management systems.
Can I buy the LH5066UHSB-B1AG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
