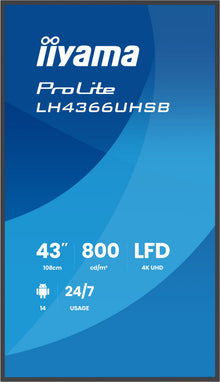

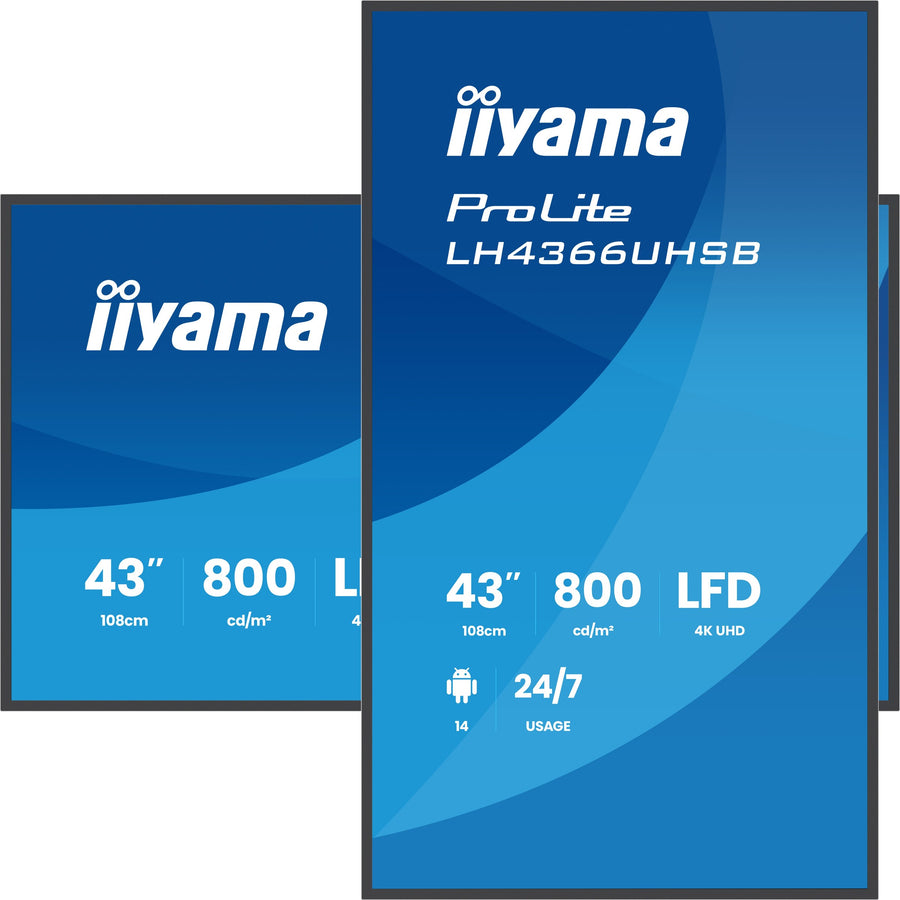

iiyama ProLite 43-inch 4K UHD Digital Signage Display – LH4366UHSB-B1AG
The iiyama ProLite LH4366UHSB-B1AG is a 43-inch 4K UHD digital signage display with an 800 cd/m² VA panel, Android 14 and built-in WiFi. It suits retail, corporate, hospitality and restaurant spaces that run content 24/7 in landscape or portrait. Procure.ae supplies the LH4366UHSB-B1AG across the UAE.
The 3840 x 2160 VA panel delivers 800 cd/m² brightness, 4000:1 static contrast and a 6.5 ms response time, with viewing angles of 178 degrees horizontally and vertically. Android 14 runs on the display, so apps install directly on it. iiSignage² manages content remotely, iiControl handles device management and iiShare supports wireless presentation. FailOver switches to the next available input when the default source has no signal, and anti image retention is included.
The display takes two HDMI 2.0 inputs and a USB-C input with DisplayPort Alt mode and 15 W power delivery. RS-232C and IR control ports, with an IR loop-through, suit room controllers and building systems. It supports landscape and portrait orientation and mounts on a 300 x 300 mm VESA pattern. The IP5X front rating covers dust protection, and the internal power supply accepts 100 to 240 V AC.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
800 nits
Type
Professional Digital Signage Display
- Android 14 platform
- 800 cd/m² VA panel
- 4K UHD resolution
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
install apps directly on the display.
02
800 cd/m² VA panel
high-brightness panel for well-lit spaces.
03
4K UHD resolution
3840 x 2160 pixels on a 43-inch screen.
04
iiSignage² CMS
remote management of messages and advertising.
05
FailOver input switching
moves to the next available input when no signal is detected.
06
Landscape and portrait
orientation support for flexible placement.
07
IP5X front protection
dust protection rating on the front of the display.
08
Built-in WiFi
2.4 GHz and 5 GHz connectivity for remote content delivery.
Specifications
31 specificationsGeneral
ApplicationRetail, corporate, hospitality, restaurants
Key FeaturesAndroid 14, 800 cd/m² VA panel, iiSignage² CMS, iiControl and iiShare, FailOver input switching, built-in WiFi, IP5X front protection, 24/7 operation
ModelLH4366UHSB-B1AG
TypeProfessional Digital Signage Display
Display
Aspect Ratio16:9
Bezel Size12.8 mm (sides, top and bottom)
Brightness800 nits
Color Depth8-bit + FRC
Color GamutNTSC 72%
Contrast Ratio4,000:1
OrientationLandscape, portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size43 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
Audio
Speaker Output2 x 10 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 x2, USB-C x1 (DP Alt, 15 W PD), RS-232C in x1, RS-232C out x1, RJ45 LAN x1, IR in x1, IR loop-through x1, USB 2.0 x2, 3.5 mm audio out
Wi-FiBuilt-in, 2.4 GHz / 5 GHz
Power
Power Consumption102 W (typical)
Physical
ColorBlack
Dimensions973 x 560 x 70 mm
Duty Cycle24/7
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight8.7 kg
Compliance
CertificationsCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
IP RatingIP5X (front)
Downloads
Manufacturer documents for the iiyama ProLite 43-inch 4K UHD Digital Signage Display – LH4366UHSB-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LH4366UHSB-B1AG run Android?
Yes. The LH4366UHSB-B1AG runs Android 14 and includes iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, a PDF and media player, iiBrowser and a file manager. Apps can be installed directly on the display.
Can the LH4366UHSB-B1AG be used in portrait mode?
Yes. The display supports both landscape and portrait orientation, which suits menu boards, wayfinding and vertical message panels. Procure.ae can advise on the right layout for your installation. Confirm the orientation before mounting.
What VESA mount does the LH4366UHSB-B1AG use?
It uses a 300 x 300 mm VESA pattern. The bezel is black with a matte finish, and the display is fanless. Procure.ae can advise on wall and stand options for your site and arrange installation across the UAE.
Can the LH4366UHSB-B1AG be controlled from a building system?
Yes. It has an RS-232C control input, an RJ45 LAN port and IR control with an IR loop-through, plus an RS-232C output. These ports suit integration with room controllers and building management systems.
