IIYAMADigital SignageSKU TW2424AS-B1

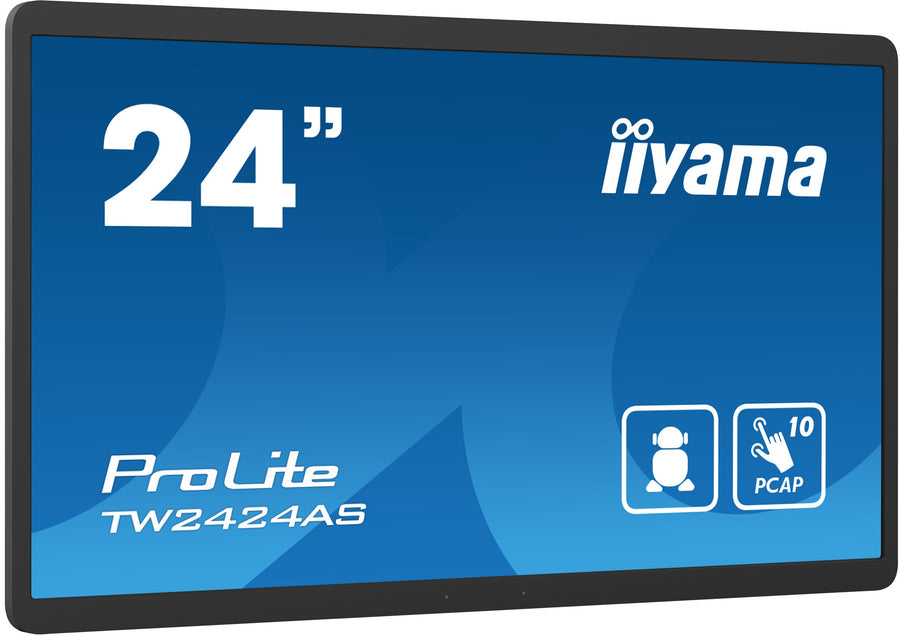

iiyama ProLite 24-inch Android Touch Panel PC – TW2424AS-B1
The iiyama ProLite TW2424AS-B1 is a 24-inch Full HD interactive touch panel PC with Android 12 with GMS, 10-point InCell PCAP touch and a built-in microphone, built for POS systems and information points in retail shops. It has a 1920 x 1080 IPS display with thin bezels and 24/7 operation. Procure.ae supplies the TW2424AS-B1 across the UAE.
The 23.8-inch IPS panel runs at 1920 x 1080 with 250 nits brightness with touch, 1,000:1 contrast with touch and 178-degree viewing angles. The InCell PCAP touch layer supports 10 touch points when the integrated OS is used, with finger, glove or capacitive stylus input. The RK3399 hexa-core processor with 4GB LPDDR4 memory and 32GB eMMC storage runs Android 12 with GMS, so apps can be installed on the device. Two 5 W speakers are built in, and HDCP is supported.
Wi-Fi (802.11a/b/g/n/ac), Bluetooth 5.2, a USB-C output for mirror-screen use and three USB hub ports give the unit several connection options. The unit operates in landscape, portrait or face-up orientation with a 100 x 100 mm VESA pattern. Unlike the TW2424AS-B3P, the B1 listing does not state Power over Ethernet and runs Android 12 rather than Android 14.
Screen Size
23.8 inch
Resolution
1920 x 1080 (Full HD)
Brightness
250 nits (with touch)
Touch Technology
InCell PCAP
- InCell PCAP 10-point touch
- Android 12 with GMS
- Built-in microphone and speakers
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InCell PCAP 10-point touch
touch supports 10 touch points with finger, glove or capacitive stylus input.
02
Android 12 with GMS
pre-installed Android 12 with Google Mobile Services lets you install applications directly on the device.
03
Built-in microphone and speakers
one microphone and two 5 W speakers are built in.
04
Anti image retention
the panel includes an anti image retention feature.
05
USB-C mirror output
the USB-C output carries video and the touch board function for screen mirroring.
06
24/7 operation
rated for 24/7 non-stop operation in landscape, portrait or face-up orientation.
07
Wi-Fi and Bluetooth
Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.2 are built in.
08
Thin bezel design
a slim bezel frames the 23.8-inch IPS panel with 6H glass hardness.
Specifications
33 specificationsGeneral
Key FeaturesAnti image retention, InCell PCAP 10-point touch, Android 12 with GMS, Wi-Fi and Bluetooth, USB-C mirror output, 24/7 operation, HDCP support, thin bezel
ModelTW2424AS-B1
TypeTouch Panel PC
Display
Aspect Ratio16:9
Brightness250 nits (with touch)
Color Depth16.7 million colours
Contrast Ratio1,000:1 (with touch)
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time14 ms
Screen Size23.8 inch
Touch Points10-point multi-touch
Touch TechnologyInCell PCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 12 with GMS
ProcessorRockchip RK3399 hexa-core (2 × Cortex-A72, 4 × Cortex-A53)
RAM4 GB LPDDR4
Storage32 GB eMMC
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 5 W
Connectivity
BluetoothBluetooth 5.2
HDMI Inputs1 (1920 x 1080 at 60 Hz)
PortsHDMI in × 1, USB-C out × 1 (video and touch mirroring), USB × 3, RJ45 LAN × 1, 3.5 mm audio in and out
USB PortsUSB 3.2 Gen 1 × 1, USB 2.0 × 2 (hub)
Wi-Fi802.11a/b/g/n/ac
Power
Power Consumption19 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions549.5 x 336 x 28 mm (W x H x D)
Duty Cycle24/7
VESA Mount100 x 100 mm
Weight4.23 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 24-inch Android Touch Panel PC – TW2424AS-B1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TW2424AS-B1 run Android apps?
Yes. It runs Android 12 with GMS on a Rockchip RK3399 hexa-core processor with 4GB LPDDR4 memory and 32GB eMMC storage, so applications can be installed directly on the device. The manufacturer lists Play Store, Gmail, Chrome and a search engine among the applications.
Can the TW2424AS-B1 be powered over Ethernet?
No. The manufacturer's specifications list one RJ45 LAN port but no Power over Ethernet, so the unit uses its external DC 12 V power supply, with typical power usage of 19 W.
Is the TW2424AS-B1 suitable for POS and information touch screens?
Yes. The manufacturer positions it for POS systems and information points in retail shops, with 10-point touch, Wi-Fi, Bluetooth, a USB hub and a built-in microphone. Its 1920 x 1080 IPS display has 178-degree viewing angles.
Does the TW2424AS-B1 support VESA mounting?
Yes. It has a VESA mounting pattern of 100 x 100 mm and operates in landscape, portrait or face-up orientation. It measures 549.5 x 336 x 28 mm and weighs 4.23 kg without its box, so Procure.ae can confirm the most suitable mount for your installation.
