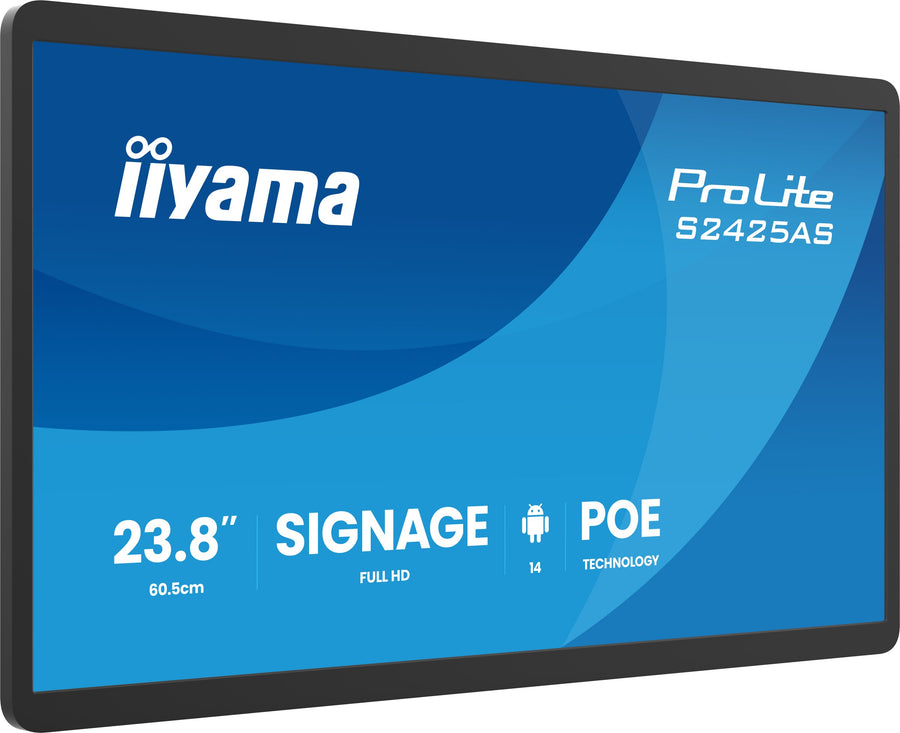

iiyama ProLite 23.8-inch Full HD Android Signage Display – S2425AS-B1P

The iiyama ProLite S2425AS-B1P is a 23.8-inch Full HD Android signage display for supermarkets, shops and information points. It has a 500 nits IPS panel, Power over Ethernet and iiSignage² software on Android 14 with Wi-Fi 6. Procure.ae is an authorised reseller of iiyama and supplies the S2425AS-B1P across the UAE.

The S2425AS-B1P uses a 1920 x 1080 IPS panel with 500 cd/m² brightness, 1,000:1 static contrast and a 14 ms response time (GTG). The specifications list flicker-free operation, and the 178° viewing angles keep content readable from the side. Power over Ethernet under IEEE 802.3at carries power and data on one RJ45 cable, while Android 14 runs iiSignage² CMS on the display. Two 5 W speakers, a microphone input and a USB-C video output are included.

The display is 28 mm deep and weighs 4.24 kg, which suits aisles, promotional zones and wall-mounted installations. Its 100 x 100 mm VESA pattern and landscape, portrait or face-up orientation give installers flexibility. It runs 24/7 with a 0 to 40 °C operating range. Compared with the 21.5-inch S2225AS-B1P, this model is larger and has a lower contrast ratio of 1,000:1 against 1,500:1.

Screen Size

23.8 inch

Resolution

1920 x 1080 (Full HD)

Brightness

500 nits

Type

Digital Signage Display

Weight

4.24 kg

Key features

Android 14 signage platform

iiSignage² CMS runs locally on the display.

Power over Ethernet

One RJ45 cable for data and power (IEEE 802.3at).

Full HD IPS panel

1920 x 1080 at 500 cd/m² with 178° viewing angles.

Flicker-free operation

Listed as flicker-free in the specifications.

Slim profile

28 mm depth and 4.24 kg for aisles and wall mounts.

Orientation options

Landscape, portrait or face-up with a 100 x 100 mm VESA pattern.

Wi-Fi 6 connectivity

Built-in 802.11ax wireless plus a 10/100/1000 Mbps Ethernet port.

Platform compatibility

iiyama states compatibility with this platform for at least five years.

Specifications

General
Key Features	Android 14 OS, iiSignage² CMS, PoE single-cable installation, Wi-Fi 6, landscape, portrait and face-up orientation, flicker-free operation, 24/7 operation
Model	S2425AS-B1P
Type	Digital Signage Display

Display
Aspect Ratio	16:9
Brightness	500 nits
Color Depth	16.7 million colours
Contrast Ratio	1,000:1
Orientation	Landscape, portrait, face-up
Panel Technology	IPS
Refresh Rate	60 Hz
Resolution	1920 x 1080 (Full HD)
Response Time	14 ms
Screen Size	23.8 inch
Viewing Angle	178° horizontal / 178° vertical

Performance
Operating System	Android 14
Storage Conditions	-20 to 60 °C

Audio
Speaker Output	2 × 5 W

Connectivity
Input Voltage	DC 12 V (external power supply)
Ports	HDMI × 1, RJ45 (LAN) × 1 with PoE (IEEE 802.3at), microphone × 1
USB Ports	USB 2.0 × 1, USB 3.2 Gen 1 × 1
USB-C Ports	USB-C × 1 (5 Gbps, video output)
Wi-Fi	Wi-Fi 6 (802.11ax/ac/a/b/g/n)

Power
Power Consumption	17.5 W (typical)

Physical
Dimensions	549.5 x 336.0 x 28.0 mm
Duty Cycle	24/7
Finish	Black, matte bezel
Operating Temperature	0 to 40 °C
VESA Mount	100 x 100 mm
Weight	4.24 kg

Compliance
Certifications	CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
