IIYAMADigital SignageSKU LH10552UWS-B1AG

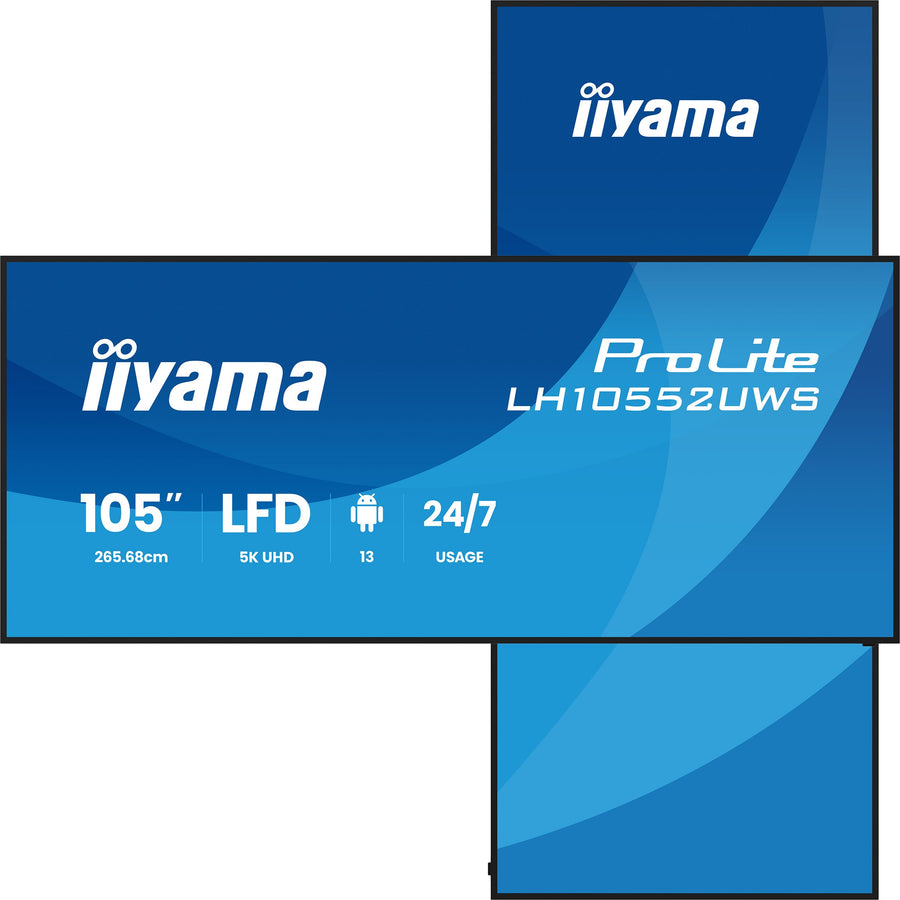

iiyama ProLite 105-inch 5K UltraWide Digital Signage Display – LH10552UWS-B1AG
The iiyama ProLite LH10552UWS-B1AG is a 105-inch 5K UltraWide IPS digital signage display with 5120 x 2160 resolution, a 21:9 aspect ratio and Android 13. It suits control rooms, hybrid meetings and large-format signage that runs around the clock. Procure.ae supplies the iiyama LH10552UWS-B1AG in the UAE, with delivery and installation.
The LH10552UWS-B1AG uses a 104.6-inch IPS panel with matte, anti-glare coated glass and a native resolution of 5120 x 2160 at 60 Hz. Brightness is 500 nits, static contrast is 1,200:1 and dynamic contrast is 5,000:1. The panel has an 8 ms GTG response time and 178° horizontal and vertical viewing angles. Two 20 W speakers and a 20 W subwoofer are built in, and they cover presentations, video conferences and multimedia playback.
The display runs Android 13 with iiyama DMS and iiyama Share software, and kiosk mode is available for unattended use. It mounts on a VESA 1000 x 600 mm pattern with M8 x 25 screws and can be used in landscape or portrait orientation. RS-232C and two LAN ports allow the display to be controlled from external systems, and an optional OPS slot takes a plug-in Windows IoT PC.
Screen Size
105 inch
Resolution
5120 x 2160 (5K UltraWide)
Brightness
500 nits
Type
Digital Signage Display
- 5K UltraWide resolution
- Android 13 platform
- Kiosk mode and 24/7 operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
5K UltraWide resolution
5120 x 2160 native resolution at 60 Hz on a 105-inch IPS panel.
02
Android 13 platform
Runs Android 13 with iiyama DMS and iiyama Share software.
03
Kiosk mode and 24/7 operation
Kiosk mode is built in, and the manufacturer lists non-stop operation of 24/7.
04
Built-in speakers
Two 20 W speakers with a 20 W subwoofer for presentations and playback.
05
Wi-Fi 6E and Bluetooth 5.2
Built-in Wi-Fi 6E and Bluetooth 5.2, plus two RJ45 LAN ports at 1000 Mbps.
06
Landscape or portrait
Supports both orientations for messaging, advertising and safety content.
07
Optional OPS slot
Accepts an optional OPS PC for Windows IoT.
Specifications
36 specificationsGeneral
ApplicationHybrid meetings, control rooms, digital signage
Key FeaturesAndroid 13 OS, kiosk mode, 24/7 operation, Wi-Fi 6E and Bluetooth 5.2, 2 × 20 W speakers, landscape and portrait, optional OPS slot, blue light reducer
ModelLH10552UWS-B1AG
TypeDigital Signage Display
What's in the BoxPower cable (3 m), HDMI cable (3 m), DisplayPort cable (3 m), RS-232C cable (3 m), remote control
Display
Aspect Ratio21:9
Bezel Size14.9 mm (sides, top and bottom)
Blue Light FilterYes
Brightness500 nits
Color Depth8-bit + FRC (1.07 billion colours)
Color GamutNTSC 85%
Contrast Ratio1,200:1 (static), 5,000:1 (dynamic)
OrientationLandscape or portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution5120 x 2160 (5K UltraWide)
Response Time8 ms
Screen Size105 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle24/7 (non-stop)
Operating SystemAndroid 13
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 × 20 W + 20 W subwoofer
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 LAN × 2 (1000 Mbps)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 4, HDMI Out × 1, DisplayPort In × 1, USB-C In × 1, USB 2.0 × 3, RJ45 LAN × 2, RS-232C × 1, Audio In × 1, Audio Out × 1 (3.5 mm)
Wi-FiWi-Fi 6E
Power
Power Consumption248 W (typical)
Standby Power0.5 W
Physical
Dimensions2489.9 x 1081.4 x 77 mm
MaterialMetal bezel
Operating Temperature0 to 40 °C
VESA Mount1000 x 600 mm (M8 x 25)
Weight53.5 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 105-inch 5K UltraWide Digital Signage Display – LH10552UWS-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution does the iiyama LH10552UWS-B1AG support?
The native resolution is 5120 x 2160 (5K UltraWide) at 60 Hz on a 21:9 IPS panel. HDMI 1 and DisplayPort carry 5120 x 2160 at 60 Hz, while the other HDMI inputs and the USB-C input carry 3840 x 2160 at 60 Hz.
Can it run as a kiosk with built-in software?
Yes. The display runs Android 13 with kiosk mode and integrated iiyama DMS and iiyama Share software. The manufacturer lists non-stop operation of 24/7, so it can run unattended in signage and information settings.
Can it be wall mounted in portrait orientation?
Yes. The display supports landscape and portrait orientation and mounts on a VESA 1000 x 600 mm pattern with M8 x 25 screws. Confirm that the wall bracket is rated for the 53.5 kg display weight, which is listed without the box.
Is it suitable for hybrid meetings and video conferencing?
Yes. The 105-inch display suits hybrid meetings, control rooms and presentations, with 178° viewing angles and 500 nits brightness. It has a USB-C input with 100 W power delivery, along with HDMI and DisplayPort inputs and built-in speakers for video conferences.
How much power does the LH10552UWS-B1AG use?
The typical power consumption is 248 W, with 0.5 W in standby and 0.3 W in off mode. It uses an internal power supply and runs on 100–240 V AC, 50/60 Hz.
