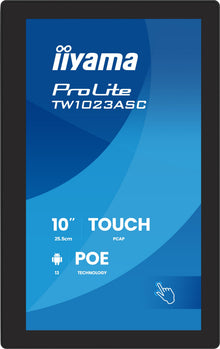

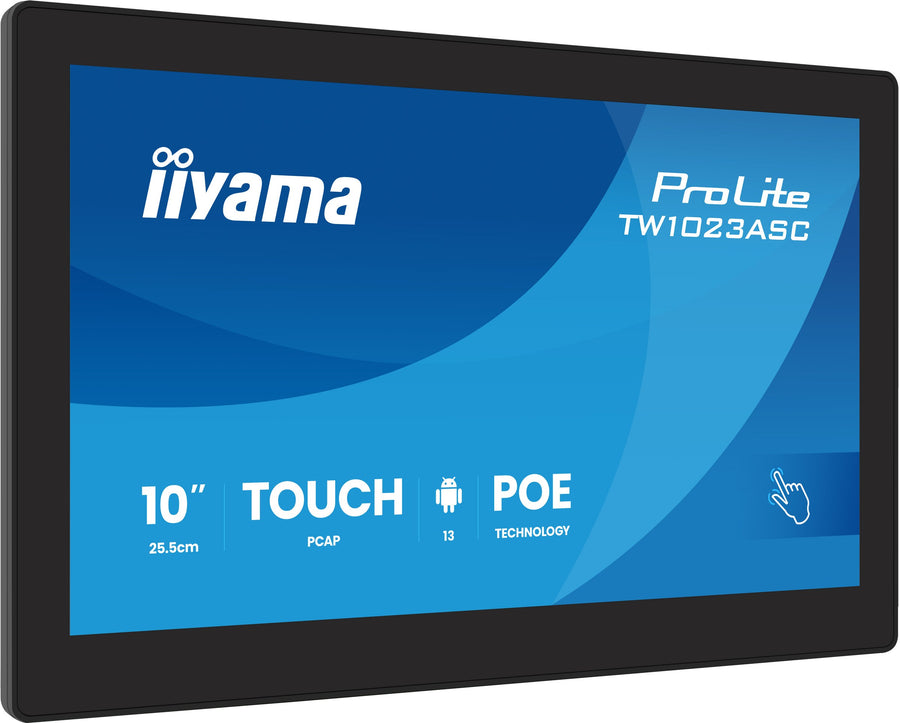

iiyama ProLite 10.1-inch Android Touch Panel PC – TW1023ASC-B3P
The iiyama ProLite TW1023ASC-B3P is a 10.1-inch touch panel PC with Android 16, 10-point projected capacitive touch and Power over Ethernet, built for meeting rooms, information points and hospitality spaces. It has a 1280 x 800 IPS display, 4GB RAM and 32GB storage, and integrates with the iiSignage² content management system. Procure.ae supplies the TW1023ASC-B3P across the UAE.
The 10.1-inch IPS panel runs at 1280 x 800 with 450 nits panel brightness, 1,000:1 static contrast and 160-degree horizontal and vertical viewing angles. The projected capacitive touch layer supports 10 touch points when the integrated OS is used, with finger, glove or capacitive stylus input. The Rockchip RK3568 quad-core processor with 4GB LPDDR4X memory and 32GB eMMC storage runs Android 16, so apps can be installed directly on the unit. A built-in 5 MP camera, microphone and two 1.5 W speakers are included, and the unit supports kiosk mode and 24/7 operation.
Power over Ethernet (IEEE 802.3at, 30 W) carries power and data over one RJ45 cable, which simplifies installation where cabling is limited. The iiSignage² content management system controls messages and displays remotely, and the unit operates in landscape, portrait or face-up orientation. The chassis measures 255 x 172 x 30.5 mm and weighs 0.8 kg without its box.
Screen Size
10.1 inch
Resolution
1280 x 800 (1 megapixel HD)
Brightness
450 nits
Touch Technology
PCAP
- 10-point PCAP touch
- Android 16 platform
- Power over Ethernet
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
10-point PCAP touch
projected capacitive touch supports 10 touch points with finger, glove or capacitive stylus input.
02
Android 16 platform
pre-installed Android 16 lets you install applications directly on the device.
03
Power over Ethernet
PoE (IEEE 802.3at, 30 W) provides power and data through one RJ45 cable.
04
iiSignage² CMS support
the iiSignage² content management system manages messages and displays remotely.
05
Built-in camera and audio
a 5 MP camera, microphone and two 1.5 W speakers are built in.
06
Kiosk mode
kiosk mode is supported, with a maximum non-stop operating time of 24/7.
07
Flexible orientation
the unit operates in landscape, portrait or face-up orientation.
08
Protected glass
edge-to-edge glass is 1.25 mm thick with 6H hardness.
Specifications
32 specificationsGeneral
Key FeaturesKiosk mode, iiSignage² CMS, Power over Ethernet, 10-point touch, 6H glass, 24/7 operation, Android 16 app installation
ModelTW1023ASC-B3P
TypeTouch Panel PC
Display
Aspect Ratio16:10
Brightness450 nits
Camera5 MP built-in
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,000:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1280 x 800 (1 megapixel HD)
Response Time25 ms
Screen Size10.1 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle160° horizontal / 160° vertical
Performance
Operating SystemAndroid 16
ProcessorRockchip RK3568 quad-core Cortex-A55, up to 2.0 GHz
RAM4 GB LPDDR4X
Storage32 GB eMMC
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 1.5 W
Connectivity
BluetoothBluetooth 5.2
PoEIEEE 802.3at, 30 W
PortsRJ45 LAN × 1, mini HDMI × 1, USB 3.2 Gen 1 × 1, USB 2.0 × 2, micro USB (OTG) × 1, 3.5 mm audio jack × 1
Wi-Fi802.11a/b/g/n/ac
Power
Power Consumption18 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions255 x 172 x 30.5 mm (W x H x D)
Duty Cycle24/7
Weight0.8 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 10.1-inch Android Touch Panel PC – TW1023ASC-B3P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TW1023ASC-B3P run Android apps?
Yes. It runs Android 16 on a Rockchip RK3568 quad-core processor with 4GB LPDDR4X memory and 32GB eMMC storage, so apps can be installed directly on the unit. Kiosk mode is supported, and the manufacturer lists Play Store, Chrome and Gmail among the pre-installed applications.
Can the TW1023ASC-B3P be powered over Ethernet?
Yes. The RJ45 LAN port supports Power over Ethernet to IEEE 802.3at at up to 30 W, so one cable carries both data and power. The unit also accepts an external DC 12 V power supply, and typical power usage is 18 W.
Is the TW1023ASC-B3P suitable for a meeting room booking panel?
Yes. The manufacturer positions it for meeting rooms, information points and hospitality spaces. It combines a 10.1-inch touch screen with a built-in microphone, camera and Android apps, and its 1280 x 800 IPS display has 160-degree horizontal and vertical viewing angles.
Does the TW1023ASC-B3P support VESA mounting?
The manufacturer's specifications do not state a VESA pattern for the TW1023ASC-B3P. Its chassis measures 255 x 172 x 30.5 mm and weighs 0.8 kg without its box, and Procure.ae can confirm the mounting options before you order.
