IIYAMAMeeting Room SolutionsSKU UC-CAM10PRO-1
iiyama 4K USB Conference Camera – UC-CAM10PRO-1

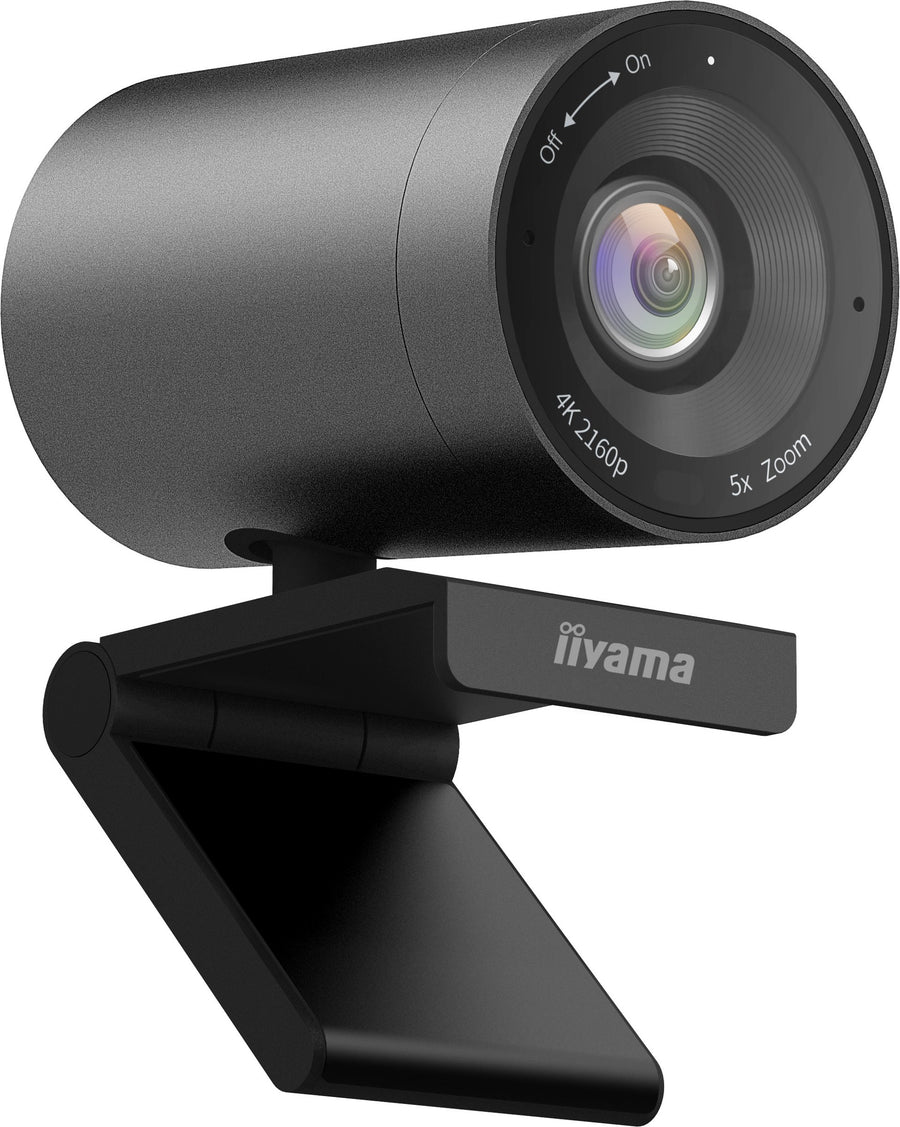

The iiyama UC-CAM10PRO-1 is a compact 4K USB conference camera with a 120-degree field of view, 5x digital zoom and a two-element microphone array. It suits huddle spaces and small meeting rooms, and it works with Zoom, Skype and Microsoft Teams. Procure.ae supplies the iiyama UC-CAM10PRO-1 across the UAE.
The camera uses an 8.46 MP sensor to capture 4K UHD video at 2160p and 30 fps, with 1440p and 1080p also supported. Its 120-degree diagonal field of view and 5x digital zoom frame the room, and white balance and backlight compensation help image quality. Intelligent face detection and voice localisation switch the frame between presenters. The two-element microphone array picks up audio within 4 metres, with noise reduction and automatic gain control.
The camera connects by a single USB Type-C cable to a USB 3.0 host and is operational as soon as it is connected. A versatile mount offers 360-degree horizontal rotation and up to 14 degrees of tilt adjustment, so the view can be set for the space. A privacy shutter and an anti-peeping cover help when the camera is not in use. The manufacturer lists the UC-CAM120ULB-1 all-in-one conference bar as a related product.
Resolution
3840 x 2160 (4K UHD)
Type
USB Conference Camera
Weight
0.21 kg (without box)
- 4K UHD webcam
- 120-degree field of view
- AutoFraming and tracking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD webcam
8.46 MP sensor with 2160p, 1440p and 1080p at 30 fps.
02
120-degree field of view
Diagonal view that covers most standard meeting spaces.
03
AutoFraming and tracking
Face detection and voice localisation switch between presenters automatically.
04
5x digital zoom
Digital zoom, with presets selected from the included remote control.
05
Two-element mic array
Voice pickup up to 4 metres with a 180-degree pickup angle and noise reduction.
06
360-degree rotation
Horizontal rotation and up to 14 degrees of tilt adjustment.
07
Privacy shutter
A physical shutter and an anti-peeping cover protect privacy.
08
USB Type-C connection
One USB cable, operational as soon as it is connected.
Specifications
16 specificationsGeneral
ControlsRemote control (batteries included)
Key Features4K UHD, 120° field of view, 5x digital zoom, AutoFraming, 2-element mic array, 360° rotation, 14° tilt, privacy shutter
ModelUC-CAM10PRO-1
TypeUSB Conference Camera
Display
Camera8.46 MP, 120° diagonal field of view, fixed focus
Resolution3840 x 2160 (4K UHD)
Zoom5x digital zoom
Audio
Microphone2-element array, 4 m pickup radius, 180° pickup angle
Connectivity
Conference CallingZoom, Skype, Microsoft Teams and others
ConnectivityUSB Type-C, USB 3.0 host
USB-C Ports1
Physical
Dimensions80 x 75 x 53 mm
Rotation360°
TiltUp to 14°
Weight0.21 kg (without box)
Compliance
CertificationsCE, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama 4K USB Conference Camera – UC-CAM10PRO-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the UC-CAM10PRO-1 support 4K video?
Yes. It supports 2160p at 30 fps, along with 1440p and 1080p at 30 fps, from an 8.46 MP sensor. The 120-degree diagonal field of view covers most standard meeting spaces.
How far can its microphones pick up voices?
The two-element microphone array picks up voices up to 4 metres (radius) with a 180-degree pickup angle. Noise reduction and automatic gain control are applied to the audio. Voice localisation directs the framing toward the active speaker.
Is it compatible with Microsoft Teams and Zoom?
Yes. The manufacturer states compatibility with Zoom, Skype, Microsoft Teams and other conferencing software. It connects by USB Type-C and is operational as soon as it is connected. It also supports 4K at 30 fps for high-quality calls.
Can I mount it and adjust its angle?
Yes. The mount allows 360-degree horizontal rotation and up to 14 degrees of tilt adjustment. The camera weighs 0.21 kg without its box and measures 80 x 75 x 53 mm.
Does it have a privacy cover?
Yes. It has a privacy shutter and an anti-peeping cover, which help when the camera is not in use. The shutter physically covers the lens, and the camera also comes with a remote control that has batteries included.
Can I buy the UC-CAM10PRO-1 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
