IAdea XDS-1088 Smart Workplace 10-inch Room Booking Panel – XDS-1088-H

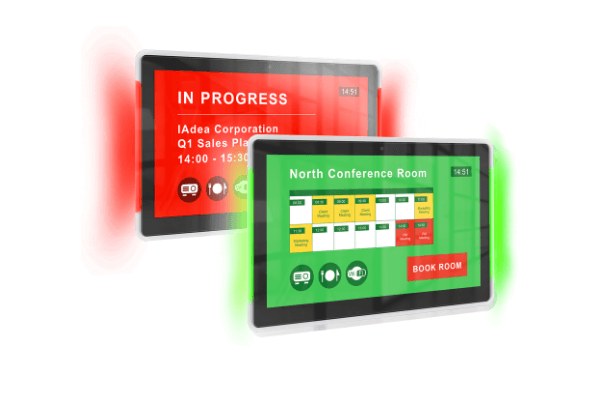

The IAdea XDS-1088-H is a 10.1-inch touch-screen room booking panel with an embedded HID badge reader for meeting room access. It has a 1280 x 800 IPS display with 10-point multi-touch, 350 nits maximum brightness and Power over Ethernet. Procure.ae supplies IAdea room booking panels in the UAE, and this discontinued model's availability is confirmed on request.
The XDS-1088-H runs HTML5 and JavaScript content on a 10.1-inch 1280 x 800 IPS panel with 10-point capacitive multi-touch and 350 nits maximum brightness. An internal Cortex-A17 1.8 GHz quad-core processor, 2 GB RAM and 8 GB eMMC storage play scheduled content, and StrongCache keeps playback running when the network is unavailable. Auto-play resumes when power is restored, and a battery-backed real-time clock keeps the time for scheduling.
The panel suits meeting room booking, conference rooms, hotels and university campuses, the uses the brochure names. Its embedded HID reader handles badge authentication. It mounts on a VESA MIS-D 75 x 75 mm interface, with glass and tilt mount options and a flush mount bracket supplied. Compared with the XDS-1088-A, which uses built-in NFC and RFID, the XDS-1088-H uses an HID reader module instead.
Screen Size
10.1 inch
Resolution
1280 x 800
Brightness
350 nits
Touch Technology
PCAP
- Badge authentication
- Touch display
- Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Badge authentication
HID reader module embedded for badge-based access.
02
Touch display
10.1-inch 1280 x 800 IPS panel with 10-point capacitive multi-touch.
03
Brightness
350 nits maximum brightness on the front panel.
04
Power over Ethernet
One Ethernet cable provides both power and network connection.
05
Front camera
2 MP camera built into the front of the panel.
06
Wi-Fi and wired networking
Wi-Fi 802.11 b/g/n alongside an Ethernet RJ45 port.
07
Mounting options
VESA MIS-D 75 x 75 mm mounts, glass and tilt mounts, and a supplied flush mount bracket.
08
Signage playback
Scheduled content plays from StrongCache and auto-plays when power is restored.
Specifications
30 specificationsGeneral
CompatibilityEnterprise room booking systems and IAdea Smart Workplace software partners
Key FeaturesHID reader module, 10-point touch, 350 nits, PoE, Wi-Fi 802.11 b/g/n, VESA 75 x 75 mm, 2 MP front camera, room booking system integration
ModelXDS-1088-H
TypeRoom Booking Panel
Display
Brightness350 nits
Camera2 MP front camera
Panel TechnologyIPS
Resolution1280 x 800
Screen Size10.1 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
TouchscreenYes
Viewing Angle170° horizontal / 170° vertical
Performance
ProcessorCortex-A17 1.8 GHz quad-core
RAM2 GB
Storage8 GB eMMC flash
Audio
Power Output12 V, 2 A
Speaker Output2 W stereo speakers
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PoEPower over Ethernet (single cable)
PortsUSB 2.0 × 2, Ethernet RJ45 × 1, Micro USB × 1, 3.5 mm audio jack, SD card slot, power input
Wi-Fi802.11 b/g/n
Physical
Dimensions273.7 x 189.7 x 30.2 mm
MountingVESA MIS-D, glass and tilt mounts, flush mount bracket supplied
Operating Humidity10% to 85% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount75 x 75 mm (MIS-D)
Weight720 g
Compliance
CertificationsCE, FCC, RoHS
Warranty1 year limited parts and labor (varies by region)
Downloads
Manufacturer documents for the IAdea XDS-1088 Smart Workplace 10-inch Room Booking Panel – XDS-1088-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the XDS-1088-H read access badges?
Yes. It has an HID reader module embedded for badge authentication. The XDS-1088-A variant uses built-in NFC and RFID instead, so confirm which badge technology your system needs before ordering.
Can the XDS-1088-H be mounted on a wall or glass?
Yes. It mounts on a VESA MIS-D 75 x 75 mm interface, and the brochure lists glass and tilt mount options. A flush mount bracket is supplied in the box.
Does it need a separate power supply?
Not if the network supplies Power over Ethernet. A single Ethernet cable can then power and connect the panel. A 12 V, 2 A power adapter with interchangeable plugs is included for installations without PoE.
Can it work with an existing room booking system?
Yes. It displays HTML5 and JavaScript content, and the brochure states that it integrates with enterprise room booking systems and IAdea Smart Workplace software partners. Check your booking platform's requirements with Procure.ae before deployment.
