IadeaMeeting Room SolutionsSKU WRP-1000-A

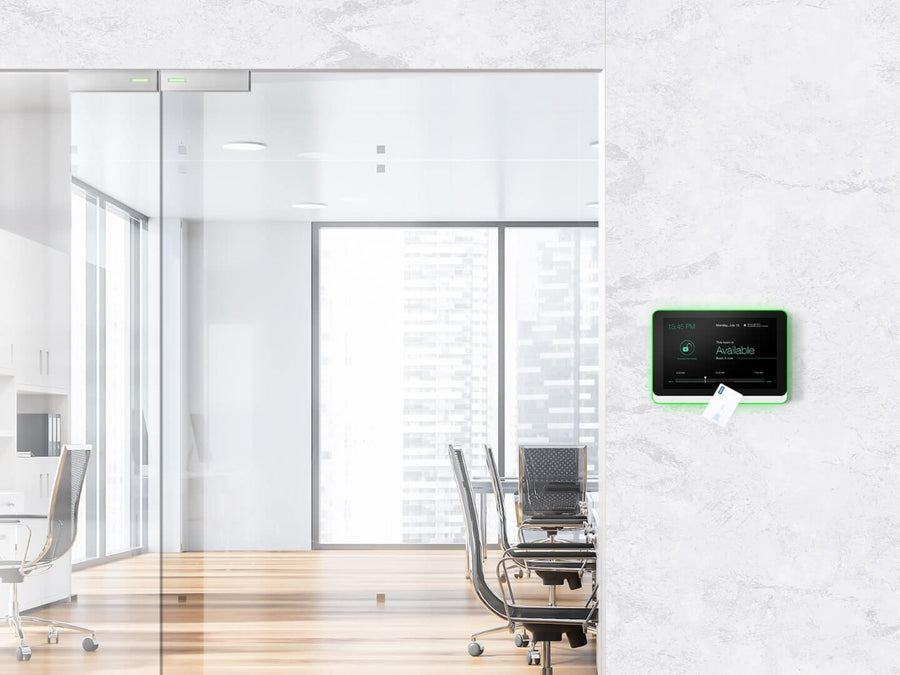

IAdea WRP-1000 10.1-inch Room Booking Panel – WRP-1000-A
The IAdea WRP-1000-A is a 10.1-inch room booking panel with a 10-point capacitive multi-touch LCD, Android 12 and a 13.56 MHz NFC reader for badge access. It suits meeting rooms that need booking, control and door access on one panel, and it supports PoE+ power. Procure.ae supplies the WRP-1000-A across the UAE.
The WRP-1000-A runs Android 12 on a Cortex-A53 octa-core processor with 2.0 GB of system memory and 16 GB of eMMC flash storage. Its 1280 x 800 LCD reaches 350 nits of maximum brightness and holds 160-degree horizontal and vertical viewing angles. An 8 MP auto-focus optical scanner, an echo-cancelling microphone and two USB 2.0 ports are built in. The internal player handles H.264, H.265 and MPEG-4 video up to 1080p, along with JPEG and PNG images and MP3 audio up to 320 kbps.
The WRP-1000-A suits meeting-room doors and wall installations. It mounts on built-in VESA-compatible 75 x 75 mm posts, a flush-mount back cover or a glass-mount kit. Ethernet (1000BASE-T) and dual-band Wi-Fi provide connectivity, and the expansion port supports physical access control pin, RS485 and GPIO connections. Content runs through the IAdea Solution Store or a third-party platform under an optional licence. Compared with the WRP-1000-H, this model has 13.56 MHz NFC only.
Screen Size
10.1 inch
Resolution
1280 x 800
Brightness
350 nits
Touch Technology
PCAP
- Touch Display
- Android 12 Platform
- NFC Reader
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Touch Display
10.1-inch LCD with 10-point capacitive multi-touch, 1280 x 800 resolution and 350 nits.
02
Android 12 Platform
Cortex-A53 octa-core processor, 2.0 GB system memory and 16 GB eMMC storage.
03
NFC Reader
13.56 MHz NFC reader for badge-based access.
04
Optical Scanner
8 MP auto-focus camera scanner built into the unit.
05
Network and Power
Dual-band Wi-Fi, 1000BASE-T Ethernet and IEEE 802.3at PoE+ power.
06
Access Control Expansion
Expansion port supports physical access control pin, RS485 and GPIO.
07
Wall Mounting
Built-in 75 x 75 mm VESA posts, with flush-mount and glass-mount options.
08
Device Management
IAdeaCare deployment, remote diagnostics and batch administration.
Specifications
31 specificationsGeneral
Key Features10.1-inch touch display, 13.56 MHz NFC, 8 MP scanner camera, dual-band Wi-Fi, PoE+ powered, Android 12, expansion port for access control, IAdea Solution Store
ModelWRP-1000-A
TypeRoom Booking Panel
What's in the BoxQuick start guide, back cover screws, flush mount back cover, glass mount sticker and cover sheet, mounting guide sheet
Display
Brightness350 nits
Camera8 MP auto-focus optical scanner × 1
Panel TechnologyLCD
Resolution1280 x 800
Screen Size10.1 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle160° horizontal / 160° vertical
Performance
Operating SystemAndroid 12
ProcessorCortex-A53 octa-core
RAM2 GB
Storage16 GB eMMC
Audio
MicrophoneEcho-cancelling × 1
Connectivity
ExpansionPhysical access control pin, RS485, GPIO
Input Voltage100–200 V AC, 50–60 Hz
Output Voltage12 V, 2 A
PoEIEEE 802.3at PoE+
PortsEthernet RJ45 (1000BASE-T) × 1, USB 2.0 × 2, Micro USB (ADB) × 1
Wi-Fi802.11 a/b/g/n/ac (2.4 GHz and 5 GHz)
Physical
Dimensions261 x 181 x 29 mm
MountingFlush mount, glass mount, VESA 75 x 75 mm posts
Operating Humidity10% to 85% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount75 x 75 mm
Weight727 g
Compliance
CertificationsCE, FCC, RoHS
Warranty1 year limited parts and labor
Downloads
Manufacturer documents for the IAdea WRP-1000 10.1-inch Room Booking Panel – WRP-1000-A — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the IAdea WRP-1000-A?
The IAdea WRP-1000-A is a 10.1-inch touch room panel with an Android 12 player, a 13.56 MHz NFC reader and an 8 MP optical scanner. It combines room control, meeting management and door access in one embedded unit.
Does the WRP-1000-A read 125 kHz HID cards?
No. The WRP-1000-A supports 13.56 MHz NFC only. The WRP-1000-H adds 125 kHz HID compliance, so choose the H model if your access cards use the 125 kHz format. Check the card format with Procure.ae before ordering.
Can the WRP-1000-A be wall mounted?
Yes. It has built-in VESA-compatible 75 x 75 mm posts and a flush-mount back cover. A glass-mount sticker, a glass-mount cover sheet and a mounting guide sheet are included in the box.
How is the WRP-1000-A powered?
It supports IEEE 802.3at PoE+ over Ethernet, and it can also run from its 12 V, 2 A power supply. The supply accepts 100-200 V, 50-60 Hz input and ships with US plugs, with EU, UK and AUS plugs as options.
Does the WRP-1000-A work with door access control?
Yes, through its expansion port, which supports physical access control pin, RS485 and GPIO connections. Confirm the access control hardware, wiring and cable routing with Procure.ae before installation, so the expansion port matches your system.
