HuaweiMeeting Room SolutionsSKU IdeaPresence 138

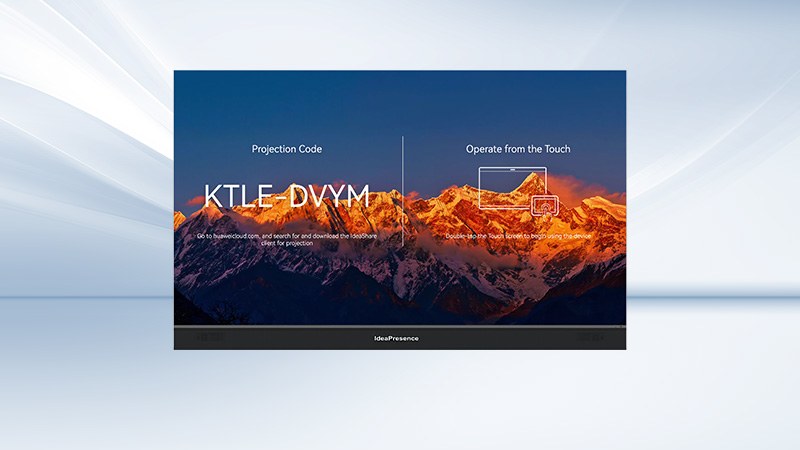

Huawei IdeaPresence 138 4K COB LED Conferencing Display
The Huawei IdeaPresence 138 is a 138-inch 16:9 flip-chip COB LED display for large meeting rooms, lecture halls and command centres. It outputs 3840 x 2160 from a 1920 x 1080 physical array, reaches 1000 nits, offers a 20,000:1 contrast ratio and has built-in stereo speakers. Procure.ae supplies it in the UAE.
The IdeaPresence 138 uses flip-chip COB LED technology with a 170° horizontal and vertical viewing angle, 300–1000 nits adjustable brightness, 5000–9500 K adjustable colour temperature and a 3840 Hz refresh rate. It provides 16-bit grayscale, a 20,000:1 contrast ratio and a colour gamut of at least 85% BT.2020 and 99% sRGB. The front is IP65-rated, the bezel is 2 mm on three sides, and the LED lifespan is rated above 100,000 hours of 24/7 operation.
Meeting functions, including 4K dual-stream calls at 30 fps, doubled 4K 60 fps frame rate and wireless projection, require a HUAWEI CloudLink Box 310 or 610 used with the display. The display has one front HDMI input and dual-band Wi-Fi, and a camera, microphone, touch and IdeaShare Key are optional. It can stand on a rolling stand or hang from a wall-mount bracket, and the manufacturer's datasheet lists a 2 m minimum viewing distance for this model.
Screen Size
138 inch
Resolution
3840 x 2160 (4K UHD, from 1920 x 10...
Brightness
300 to 1000 nits (adjustable)
Type
COB LED Conferencing Display
- 138-inch COB LED
- Adjustable brightness
- Wide colour
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
138-inch COB LED
Flip-chip COB panel in 16:9 with a 2 mm bezel on three sides.
02
Adjustable brightness
300–1000 nits with 5000–9500 K colour temperature and 16-bit grayscale.
03
Wide colour
Contrast ratio of 20,000:1 and a gamut of at least 85% BT.2020 and 99% sRGB.
04
IP65 front
Protected front surface that is easy to clean, with an anti-glare finish.
05
Stereo audio
Two speaker groups, 60 Hz to 20 kHz frequency response and up to 95 dB.
06
Cool-running design
Screen temperature rise of up to 17°C and 30% lower power consumption.
07
Modular extension
Dual-screen extension and a 32:9 aspect ratio are possible through the modular array design.
08
Meeting-ready
With a CloudLink Box 310 or 610 it supports 4K dual-stream calls, SiteCall and wireless projection.
Specifications
34 specificationsGeneral
Key Features138-inch 4K COB LED, 300–1000 nits, IP65 front, 170° viewing angle, stereo speakers, 2 mm bezel on three sides, 4K dual-stream meetings with CloudLink Box
ModelIdeaPresence 138
TypeCOB LED Conferencing Display
What's in the BoxDisplay, 1 power cable, 1 HDMI cable; camera, microphone, touch, IdeaShare Key and UHD codec optional
Display
Aspect Ratio16:9
Bezel Size2 mm on three sides
Brightness300 to 1000 nits (adjustable)
Color Depth16-bit grayscale
Color Gamut≥ 85% BT.2020, ≥ 99% sRGB
Color Temperature5000 to 9500 K (adjustable)
Contrast Ratio20,000:1
Panel TechnologyLED (flip-chip COB)
Refresh Rate3840 Hz
Resolution3840 x 2160 (4K UHD, from 1920 x 1080 physical resolution)
Screen Size138 inch
Viewing Angle170° horizontal / 170° vertical
Performance
Bandwidth64 kbit/s to 8 Mbit/s call bandwidth
Storage Conditions-20 to 60 °C, 10% to 80% RH
Audio
Frequency Response60 Hz to 20 kHz
Max SPL95 dB
Speaker Configuration2 speaker groups, stereo
Speaker Output2 × 20 W + 20 W per group
Connectivity
HDMI InputsHDMI × 1 (front)
Input Voltage100–240 V AC, 50/60 Hz
Wi-FiDual-band (2.4 GHz and 5 GHz)
Power
Power Consumption1787 W (maximum)
Physical
Dimensions3054 x 2564 x 1034 mm with rolling stand; 3054 x 1888 x 147 mm wall-mounted (W x H x D)
Duty Cycle24/7 operation, LED lifespan over 100,000 hours
MountingWall-mount bracket or rolling stand
Operating Humidity10% to 80% RH
Operating Temperature-10 to 50 °C
Shipping Weight440 kg (gross, display)
Weight247.5 kg with rolling stand; 221 kg with wall-mount bracket (net)
Compliance
IP RatingIP65 (front)
Downloads
Manufacturer documents for the Huawei IdeaPresence 138 4K COB LED Conferencing Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Huawei IdeaPresence 138?
The IdeaPresence 138 is a 138-inch 16:9 COB LED display with 3840 x 2160 display resolution, generated by pixel-engine processing on a 1920 x 1080 physical array. The IdeaPresence 138 Pro variant has a 3840 x 2160 physical resolution.
What do I need to run video meetings on the IdeaPresence 138?
You need a HUAWEI CloudLink Box 310 or 610 with the display to access meetings, doubled frame rate, security, intelligent features and wireless projection. A camera, microphone, touch controller and UHD codec are listed as optional components.
How bright is the IdeaPresence 138 and what viewing angle does it have?
Brightness is adjustable from 300 to 1000 nits, with a 170° horizontal and vertical viewing angle, a 20,000:1 contrast ratio and an anti-glare surface. The manufacturer lists a 2 m minimum viewing distance for the 138 model.
What are the size, weight and mounting options?
With a rolling stand it measures 3054 x 2564 x 1034 mm (W x H x D) at 247.5 kg net; wall-mounted it measures 3054 x 1888 x 147 mm at 221 kg net. Gross weight is 440 kg, so installation needs planning, which Procure.ae can handle.
Does the IdeaPresence 138 have built-in speakers?
Yes. It has two speaker groups with stereo support, rated 2 x 20 W + 20 W per group, a 60 Hz to 20 kHz frequency response and a maximum volume of 95 dB. Maximum power consumption for the display is 1787 W.
Can I buy the Huawei IdeaPresence 138 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
