HuaweiMeeting Room SolutionsSKU CloudLink Bar 213

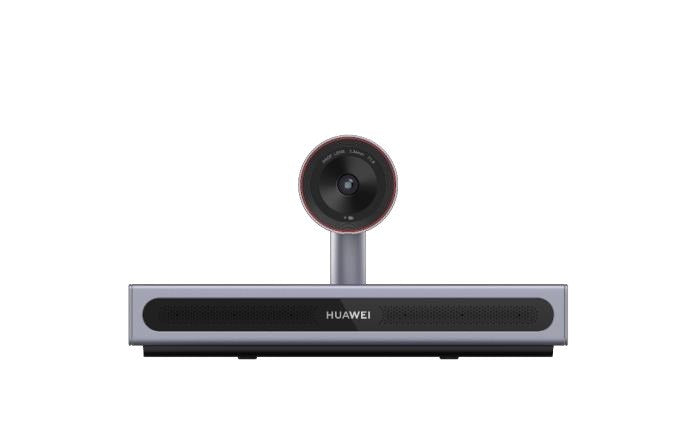

Huawei CloudLink Bar 213 4K All-in-One Video Conferencing Bar
The Huawei CloudLink Bar 213 is an integrated ultra-HD video conferencing endpoint with a 4K camera, microphone array and HD codec in one bar. It offers 3x digital zoom, Auto-Framing, an 8 m pickup range and H.265 1080p multistream, and is aimed at small to medium meeting rooms. Procure.ae supplies it in the UAE.
The Bar 213 integrates a 4K professional-grade camera, a microphone array and an HD codec, so a room needs only the bar, a display and a network connection. The camera has 3x digital zoom, an F1.8 aperture and a manual PTZ with ±100° pan and –90° to +30° tilt. Auto-Framing keeps every participant in shot, and the microphone array, with AI noise reduction, picks up voices from 8 m. H.265 delivers 1080p video, with 4K content sharing.
Supported protocols include H.323 and SIP, with H.235 and SRTP/TLS protecting signalling and media. Bring Your Own Meeting over USB Type-C lets a laptop use the bar's camera, microphone, external display and speaker during a cloud conference, and Type-C also handles wired projection. The camera can rotate 90° downward to act as a physical privacy shutter, and a next-generation remote control is supplied.
Resolution
1080p video (H.265, up to 60 fps wi...
Type
All-in-One Video Conferencing Bar
- 4K camera
- Manual PTZ
- Auto-Framing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K camera
Professional-grade camera with 3x digital zoom and an F1.8 aperture.
02
Manual PTZ
Mechanical pan of ±100° and tilt from –90° to +30°.
03
Auto-Framing
Detects participants and centres them in the frame automatically.
04
8 m microphone array
Built-in array with AI noise reduction, echo cancellation and gain control.
05
H.265 multistream
1080p multistream conferences with adjustable continuous presence layouts.
06
BYOM via USB Type-C
Lets a PC use the bar's camera, microphone, display and speaker; Type-C also supports wired projection.
07
Privacy rotation
The camera rotates 90° downward for physical privacy protection.
08
Encrypted calls
H.235 and SRTP/TLS encryption plus a preconfigured device certificate.
Specifications
20 specificationsGeneral
ApplicationSmall to medium-sized conference rooms
ControlsRemote control
Key Features4K camera, 3x digital zoom, Auto-Framing, 8 m microphone array, H.265 1080p multistream, BYOM via USB Type-C, physical privacy rotation
ModelCloudLink Bar 213
TypeAll-in-One Video Conferencing Bar
What's in the BoxHD codec with built-in camera and microphone array, remote control, cables, power supply
Display
Camera4K professional-grade camera, F1.8 aperture, manual mechanical PTZ
Resolution1080p video (H.265, up to 60 fps with VME); 4K content sharing
Zoom3x digital zoom
Performance
BandwidthFrom 384 kbit/s (H.265 1080p 30 fps)
Audio
AudioAEC, ANS, AGC, VoiceClear, AudioEnhancer, lip synchronisation
Audio CodecsOpus, AAC-LD, G.729A, G.722, G.722.1C, G.711U, G.711A, G.719
MicrophoneBuilt-in microphone array, external microphone array supported
Pickup Range8 m
Connectivity
Conference CallingH.265 1080p multistream, continuous presence layouts, SVC recording, BYOM
ConnectivityHDMI presentation input, USB Type-C (BYOM and wired projection)
ProtocolsH.323, SIP, H.239, BFCP, H.235; video H.265, H.265 SVC, H.264 HP/BP/SVC, H.263, H.263+
Physical
RotationPan ±100° (manual)
Tilt-90° to +30° (manual)
Compliance
Security FeaturesH.235, SRTP/TLS encryption, preconfigured device certificate, audio watermarking
Downloads
Manufacturer documents for the Huawei CloudLink Bar 213 4K All-in-One Video Conferencing Bar — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Huawei CloudLink Bar 213?
The Huawei CloudLink Bar 213 is an integrated ultra-HD video conferencing endpoint. It combines a 4K camera, a microphone array and an HD codec in one bar, with a manual PTZ, 3x digital zoom, Auto-Framing and a remote control, for small to medium-sized meeting rooms.
What camera does the CloudLink Bar 213 use?
It uses a 4K professional-grade camera with 3x digital zoom and an F1.8 aperture. The manual mechanical PTZ pans ±100° and tilts from –90° to +30°, and Auto-Framing can centre all participants. The camera also rotates 90° downward for physical privacy.
How far does the CloudLink Bar 213 microphone pick up?
The built-in microphone array has an 8 m pickup range with AI noise reduction, echo cancellation and automatic gain control. An external microphone array is supported to extend the pickup range in larger rooms.
Which conferencing standards does the CloudLink Bar 213 support?
It supports H.323 and SIP, with H.265, H.264 and H.263 video codecs and audio codecs including Opus, G.722 and G.711. H.235 with SRTP/TLS secures signalling and media, and H.239 and BFCP handle dual-stream content sharing.
How does the Bar 213 differ from the Bar 210?
The manufacturer's datasheets for the Bar 213 and Bar 210 list the same camera, microphone, codec and protocol specifications. Procure.ae can confirm any hardware differences, such as ports or accessories, with Huawei before you order for your room.
Can I buy the Huawei CloudLink Bar 213 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
