Huawei CloudLink Bar 210 4K All-in-One Video Conferencing Bar

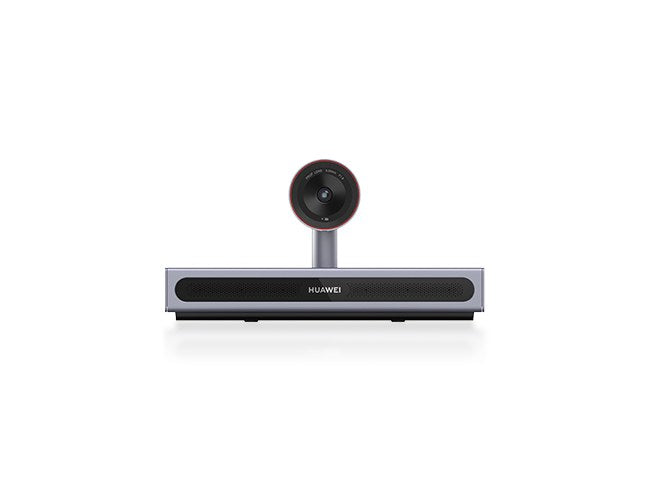

The Huawei CloudLink Bar 210 is an all-in-one video conferencing bar that combines a 4K camera, an 8 m microphone array and an HD codec in a single unit. It supports H.265 1080p multistream calls, Auto-Framing and USB Type-C Bring Your Own Meeting, and suits small to medium meeting rooms. Procure.ae supplies it in the UAE.
The Bar 210 uses a 4K professional-grade camera with 3x digital zoom and an F1.8 aperture, mounted on a manual mechanical PTZ with ±100° pan and –90° to +30° tilt. Video runs on H.265 with Huawei's Video Motion Enhancement for 1080p at 60 fps, and content sharing supports 4K. The built-in microphone array picks up speech from 8 m and applies echo cancellation, noise suppression and gain control, while Auto-Framing centres all participants automatically.
The endpoint supports H.323 and SIP and uses H.235, SRTP and TLS encryption, so it can join standards-based conferences as well as Huawei cloud meetings. Through USB Type-C, Bring Your Own Meeting lets a PC use the bar's camera, microphone, external display and speaker, and Type-C also supports wired screen projection. A remote control is included, and the camera rotates 90° downward for physical privacy.
Resolution
1080p video (H.265, up to 60 fps wi...
Type
All-in-One Video Conferencing Bar
- 4K camera
- Manual PTZ
- Auto-Framing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K camera
Professional-grade camera with 3x digital zoom and an F1.8 aperture.
02
Manual PTZ
Mechanical pan of ±100° and tilt from –90° to +30°.
03
Auto-Framing
Detects participants and centres them in the frame automatically.
04
8 m microphone array
Built-in array with AI noise reduction, echo cancellation and gain control.
05
H.265 multistream
1080p multistream conferences with adjustable continuous presence layouts.
06
BYOM via USB Type-C
Lets a PC use the bar's camera, microphone, display and speaker; Type-C also supports wired projection.
07
Privacy rotation
The camera rotates 90° downward for physical privacy protection.
08
Encrypted calls
H.235 and SRTP/TLS encryption plus a preconfigured device certificate.
Specifications
20 specificationsGeneral
ApplicationSmall to medium-sized conference rooms
ControlsRemote control
Key Features4K camera, 3x digital zoom, Auto-Framing, 8 m microphone array, H.265 1080p multistream, BYOM via USB Type-C, physical privacy rotation
ModelCloudLink Bar 210
TypeAll-in-One Video Conferencing Bar
What's in the BoxHD codec with built-in camera and microphone array, remote control, cables, power supply
Display
Camera4K professional-grade camera, F1.8 aperture, manual mechanical PTZ
Resolution1080p video (H.265, up to 60 fps with VME); 4K content sharing
Zoom3x digital zoom
Performance
BandwidthFrom 384 kbit/s (H.265 1080p 30 fps)
Audio
AudioAEC, ANS, AGC, VoiceClear, AudioEnhancer, lip synchronisation
Audio CodecsOpus, AAC-LD, G.729A, G.722, G.722.1C, G.711U, G.711A, G.719
MicrophoneBuilt-in microphone array, external microphone array supported
Pickup Range8 m
Connectivity
Conference CallingH.265 1080p multistream, continuous presence layouts, SVC recording, BYOM
ConnectivityHDMI presentation input, USB Type-C (BYOM and wired projection)
ProtocolsH.323, SIP, H.239, BFCP, H.235; video H.265, H.265 SVC, H.264 HP/BP/SVC, H.263, H.263+
Physical
RotationPan ±100° (manual)
Tilt-90° to +30° (manual)
Compliance
Security FeaturesH.235, SRTP/TLS encryption, preconfigured device certificate, audio watermarking
Downloads
Manufacturer documents for the Huawei CloudLink Bar 210 4K All-in-One Video Conferencing Bar — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Huawei CloudLink Bar 210?
The Huawei CloudLink Bar 210 is an integrated ultra-HD video conferencing endpoint. It combines a 4K camera, a microphone array and an HD codec in one bar, with a manual PTZ, 3x digital zoom, Auto-Framing and a remote control, for small to medium-sized meeting rooms.
What camera does the CloudLink Bar 210 use?
It uses a 4K professional-grade camera with 3x digital zoom and an F1.8 aperture. The manual mechanical PTZ pans ±100° and tilts from –90° to +30°, and Auto-Framing can centre all participants. The camera also rotates 90° downward for physical privacy.
How far does the CloudLink Bar 210 microphone pick up?
The built-in microphone array has an 8 m pickup range with AI noise reduction, echo cancellation and automatic gain control. An external microphone array is supported to extend the pickup range in larger rooms.
Which conferencing standards does the CloudLink Bar 210 support?
It supports H.323 and SIP, with H.265, H.264 and H.263 video codecs and audio codecs including Opus, G.722 and G.711. H.235 with SRTP/TLS secures signalling and media, and H.239 and BFCP handle dual-stream content sharing.
Can a laptop use the Bar 210 as its camera and speaker?
Yes. With Bring Your Own Meeting, a PC that has joined a cloud conference connects over a USB Type-C cable and can use the Bar 210's camera, microphone, external display and speaker. Type-C also supports wired screen projection to the connected display.
