Huawei CloudLink 4K PTZ Conference Camera – Camera 830E

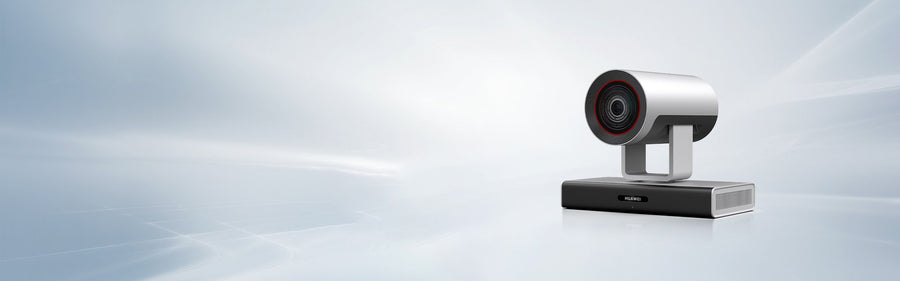

The Huawei CloudLink Camera 830E is a 4K PTZ conference camera with 30x optical zoom and 255 presets. It works with Huawei HD video conferencing endpoints and cloud conferencing soft clients, and it supports VISCA, PELCO-P and PELCO-D control. Procure.ae supplies it in the UAE for video conferencing rooms.
The 830E uses an 8.29-megapixel, 1/1.8-inch CMOS sensor with 30x optical zoom and a maximum aperture of F1.36. It outputs 4K at 60, 50, 30 and 25 fps, and 1080p and 720p at matching frame rates. Image modes include standard, natural, vivid, scenery, soft and meeting, and the camera stores 255 presets for quick framing. Video output is through one HDMI port, one USB port and one HT-TX port.
The manufacturer describes the 830E as a 4K PTZ camera that works with Huawei HD video conferencing endpoints or cloud conferencing soft clients for a UHD video experience. Control is available through RS232 IN/OUT, which connects to the serial control port of the endpoint, and an RJ45 port that supports VISCA, PELCO-P and PELCO-D. The manufacturer's specifications do not state mounting options, weight or pan and tilt range.
Resolution
4K 60 fps (also 4K 50/30/25, 1080p ...
Type
PTZ Camera
- 4K PTZ video
- 30x optical zoom
- 255 presets
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K PTZ video
Outputs 4K at 60, 50, 30 and 25 fps
02
30x optical zoom
F1.36 maximum aperture
03
255 presets
Stores 255 camera presets for quick framing
04
8.29 MP sensor
1/1.8-inch CMOS image sensor
05
Image modes
Standard, natural, vivid, scenery, soft and meeting
06
Endpoint integration
Works with Huawei HD video conferencing endpoints
07
Serial and IP control
RS232 IN/OUT and RJ45 control ports
08
Control protocols
VISCA, PELCO-P and PELCO-D support
Specifications
11 specificationsGeneral
ApplicationVideo conferencing rooms
CompatibilityHuawei HD video conferencing endpoints and cloud conferencing soft clients
Key Features4K PTZ video, 30x optical zoom, F1.36 max aperture, 255 presets, image modes (standard, natural, vivid, scenery, soft, meeting), VISCA / PELCO-P / PELCO-D control
ModelCamera 830E
TypePTZ Camera
Display
Camera4K PTZ camera; 8.29 MP, 1/1.8-inch CMOS sensor
Resolution4K 60 fps (also 4K 50/30/25, 1080p 60/50/30/25, 720p 60/50/30/25)
Zoom30x optical
Connectivity
PortsHDMI × 1, USB × 1, HT-TX × 1, RJ45 × 1
ProtocolsVISCA, PELCO-P, PELCO-D
Serial PortRS232 IN/OUT
Questions
Can’t find your answer? Ask on WhatsApp
Does the Camera 830E support 4K video?
Yes. The camera outputs 4K at 60, 50, 30 and 25 fps, and it also supports 1080p and 720p at matching frame rates. Choose the output setting that suits the endpoint or conferencing client you connect.
Which systems does the Camera 830E work with?
It works with Huawei HD video conferencing endpoints and cloud conferencing soft clients, as the manufacturer describes. The manufacturer's specifications do not list third-party endpoints, so check compatibility with Procure.ae before ordering.
Can it be controlled by a third-party system?
Yes. The RS232 IN/OUT and RJ45 ports support VISCA, PELCO-P and PELCO-D protocols, and the camera stores 255 presets for recall. Confirm the control system and cabling with Procure.ae before installation.
How much zoom and how many presets does it offer?
It offers 30x optical zoom with a maximum aperture of F1.36, and it stores 255 presets. The manufacturer's specifications do not state the pan or tilt range for this model.
Does it need mounting hardware?
The manufacturer's specifications do not state mounting options or a bracket for the 830E. Confirm mounting with Procure.ae before installation, and ask about delivery and installation across the UAE, including the bracket and cable route for your room.
Can I buy the Camera 830E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
