Huawei Android OPS Slot-in PC – OPS A01 D
The Huawei OPS A01 D is an Android OPS-C slot-in PC built on the Rockchip RK3588 processor, with 8 GB of LPDDR5 memory and 128 GB of eMMC storage. It adds Wi-Fi 6, Bluetooth 5.2 and 4K 60 Hz HDMI input and output to compatible interactive flat panels. Procure.ae supplies it in the UAE.

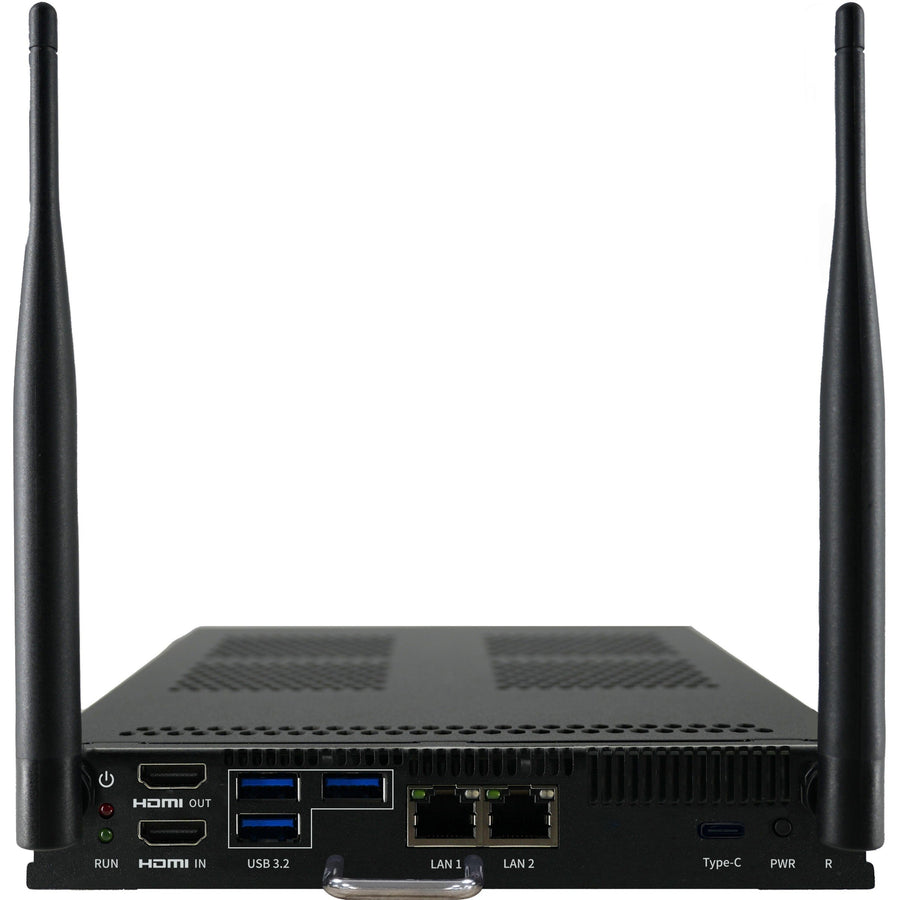

The OPS A01 D uses an eight-core Rockchip RK3588 (four Cortex-A76 and four Cortex-A55 cores, up to 2.4 GHz) with G610 MC4 graphics and runs Android 15 and above. Memory is 8 GB of on-board dual-channel LPDDR5, and storage is 128 GB of eMMC. The front panel has three USB 3.2 Gen 1 ports, one USB 2.0 port, one USB Type-C port, a 4K 60 Hz HDMI input, a 4K 60 Hz HDMI output and two RJ45 LAN ports.
It is a standard OPS-C module. Its rear 80-pin connector carries a 4K 60 Hz HDMI output to the host panel, so it suits OPS-compatible interactive flat panels, conference whiteboards and digital signage displays. It supports Wi-Fi 6 and Bluetooth 5.2 through an M.2 E-Key 2230 slot and has two antennas. Cooling is passive, with noise below 35 dB at 1 m, and the rated power is 65 W from a 19 V DC input.
Key features
Specifications
| Key Features | Rockchip RK3588, 8 GB LPDDR5, 128 GB eMMC, Wi-Fi 6, Bluetooth 5.2, 4K 60 Hz HDMI in and out, passive cooling |
| Model | OPS A01 D |
| Type | Android OPS-C Slot-in PC |
| Graphics | G610 MC4 |
| Memory Type | LPDDR5, on-board, dual channel |
| Operating System | Android 15 and above |
| Processor | Rockchip RK3588, 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4 GHz |
| RAM | 8 GB |
| Storage | 128 GB eMMC |
| Storage Conditions | -20 to 60 °C; 5% to 95% RH, non-condensing |
| Antenna | 2 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | RJ45 × 2 |
| HDMI Inputs | HDMI In × 1 (4K 60 Hz) |
| HDMI Outputs | HDMI Out × 1 (4K 60 Hz) |
| Input Voltage | 19 V DC |
| OPS Slot | OPS-C, 80-pin connector |
| Ports | HDMI In × 1, HDMI Out × 1, USB 3.2 Gen 1 × 3, USB 2.0 × 1, USB-C × 1, RJ45 × 2 |
| USB Ports | USB 3.2 Gen 1 × 3, USB 2.0 × 1 |
| USB-C Ports | 1 |
| Wi-Fi | Wi-Fi 6 (M.2 E-Key 2230 slot), 2.4 GHz / 5 GHz |
| Power Consumption | 65 W (rated) |
| Color | Black |
| Dimensions | 195 x 30 x 180 mm (W x H x D) |
| Form Factor | OPS-C pluggable computer |
| Material | Metal |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
