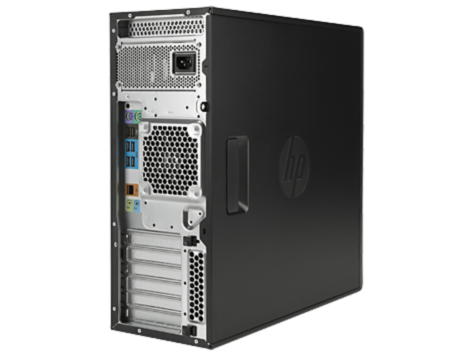

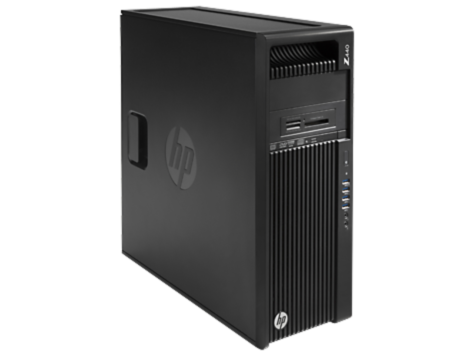

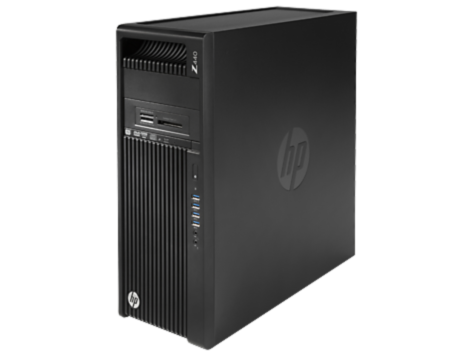

HP Z440 Workstation

Specification

System features

Operating system

Windows 10 Pro 64

Processor family

• Intel® Xeon® E5 1600 v4 processor

Processor

• Intel® Xeon® E5-1620 v4 (3.5 GHz, 10 MB cache, 4 cores, Intel® vPro™)

Number of processors

1

Chipset

Intel® C612

Environmental

• Low halogen

Form factor

Minitower

Memory

Memory, standard

• 16 GB DDR4-2400 non-ECC registered SDRAM (2 x 8 GB)

Memory Slots

8 DIMM

Storage

Internal drive bays

Two 3.5"

External drive bays

Two 5.25"; One slim ODD

Internal drive

256 GB HP Z Turbo Drive PCIe SSD
256 GB SATA SSD

Additional storage

15-in-1 media card reader (optional)

Storage controller

Integrated SATA 6.0 Gb/s; LSI MegaRAID® 9270-8i SAS 6.0 Gb/s ROC RAID Card and iBBU09 Battery Backup Unit (optional); LSI 9217-4i4e 8-port SAS 6.0 Gb/s RAID (optional); Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, and 10)

Optical drive

• Slim SATA DVD-ROM

Display and graphics

Compatible displays

• All HP Z Displays and HP DreamColor Displays are supported. For more information see www.hp.com/go/zdisplays.

Expansion features

Ports

Front:
4 USB 3.0
1 microphone
1 headset

Back:
4 USB 3.0
2 USB 2.0
2 PS/2
1 RJ-45
1 audio line in
1 audio line out

Internal:
1 USB 2.0
1 USB 3.0

Slots

• 2 PCIe Gen3 x16
• 1 PCIe Gen3 x8 (open-ended)
• 1 PCIe Gen2 x4 (open-ended)
• 1 PCIe Gen2 x1 (open-ended)
• 1 PCI

(Open-ended connector allows a greater bandwidth card to be installed physically into a lower bandwidth connector/slot.)

Communications

Network interface

Integrated Intel I218LM PCIe GbE

Audio

Integrated Realtek HD ALC221

Power and operating requirements

Power

• 700 W 90% efficient, wide-ranging, active PFC

Dimensions and weight

Dimensions (W x D x H)

16.9 x 44.5 x 43.2 cm

Weight

11 kg
(Exact weight depends upon configuration.)
