HP Z240 Small Form Factor Workstation

Specification

System features

Operating system

Windows 10 Pro 64 for Workstations – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
Windows 10 Pro (National Academic License) 1
Windows 7 Professional 64 2
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro 64) 3
HP Linux®-ready

Processor family

7th Generation Intel® Xeon® processor (E3-1270 v6, E3-1245 v6, E3-1240 v6, E3-1230 v6, E3-1225 v6, E3-1205 v6 models)
7th Generation Intel® Core™ i7 processor (i7-7700K, i7-7700 models)
7th Generation Intel® Core™ i5 processor (i5-7600, i5-7500 models)
7th Generation Intel® Core™ i3 processor (i3-7100 model)
6th Generation Intel® Xeon® processor
6th Generation Intel® Core™ i7 processor
6th Generation Intel® Core™ i5 processor
6th Generation Intel® Core™ i3 processor
Intel® Pentium® processor 4

Processor

Intel® Core™ i3-6300 with Intel® HD Graphics 530 (3.8 GHz, 4 MB cache, 2 cores)
Intel® Core™ i3-7100 with Intel® HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores)
Intel® Core™ i5-6500 with Intel® HD Graphics 530 (3.2 GHz base frequency, up to 3.6 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-6600 with Intel® HD Graphics 530 (3.3 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-7500 with Intel® HD Graphics 630 (3.4 GHz base frequency, up to 3.8 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i5-7600 with Intel® HD Graphics 630 (3.5 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Core™ i7-6700 with Intel® HD Graphics 530 (3.4 GHz base frequency, up to 4 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i7-6700K with Intel® HD Graphics 530 (4 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i7-7700 with Intel® HD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i7-7700K with Intel® HD Graphics 630 (4.2 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Pentium® Gold G4560 with Intel® HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores)
Intel® Xeon® E3-1205 v6 with Intel® HD Graphics P630 (3 GHz, 8 MB cache, 4 cores)
Intel® Xeon® E3-1225 v5 with Intel® HD Graphics P530 (3.3 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1225 v6 with Intel® HD Graphics P630 (3.3 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1230 v5 (3.4 GHz base frequency, up to 3.8 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1240 v5 (3.5 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1240 v6 (3.7 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1245 v5 with Intel® HD Graphics P530 (3.5 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1245 v6 with Intel® HD Graphics P630 (3.7 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1270 v5 (3.6 GHz base frequency, up to 4 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1270 v6 (3.8 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Xeon® E3-1230 v6 (3.5 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores) 4,5

Chipset

Intel® C236

Environmental

Low halogen 13

Form factor

Small Form Factor

Memory

Maximum memory

64 GB DDR4-2400 ECC or non-ECC SDRAM
(Transfer rates up to 2400 MT/s )

Memory Slots

4 DIMM

Storage

Internal drive bays

One 8,9 cm (3.5"); One 6,3 cm (2.5''); One shared 8,9 cm (3.5'') shared with external 8,9 cm (3.5'') bay

External drive bays

One shared 8,9 cm (3.5'') shared with internal 8,9 cm (3.5'') bay; One slim ODD

Internal drive

500 GB up to 3 TB SATA (7200 rpm) 6
500 GB SATA SED 6
128 GB up to 2 TB SATA SSD 6
256 GB SATA SED SSD 6
1 TB (8 GB cache) SATA SSHD (7200 rpm) 6
256 GB up to 1 TB HP Z Turbo Drive G2 (NVMe PCIe SSD) 6
256 GB up to 1 TB HP Z Turbo Drive G2 (NVMe™ TLC PCIe® SSD) 6

Additional storage

SD media card reader (optional)

Storage controller

Integrated SATA (4 ports 6 Gb/s) with RAID 0 (striped array) and RAID 1 (mirrored array) supported on Windows operating system only. Requires identical hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data configuration) for PCIe SSDs.

Optical drive

HP Slim DVD-ROM Drive
HP Slim Blu-ray Writer
HP Slim DVD-Writer DVD-RW Drive 7,8

Display and graphics

Compatible displays

• HP Z27s 68,6 cm (27") IPS UHD Display
• HP Z27q 68,6 cm (27") IPS 5K Display
• HP Z24s 60,45 cm (23.8") IPS UHD Display
• HP Z Display Z30i 76,2 cm (30'') IPS LED Backlit Monitor
• HP Z27n 68,6 cm (27") Narrow Bezel IPS Display
• HP Z24n 61 cm (24") Narrow Bezel IPS Display
• HP Z23n 58,4 cm (23”) IPS Display
• HP Z22n 54,6 cm (21.5”) IPS Display
• HP DreamColor Z24x Professional Display
• HP DreamColor Z27x Professional Display

Graphics

Integrated:

• Intel® HD Graphics 530
• Intel® HD Graphics P530

9
Professional 2D:

• NVIDIA® NVS™ 310 (1 GB)
• NVIDIA® NVS™ 315 (1 GB)
• NVIDIA® NVS™ 510 (2 GB)

Entry 3D:

• NVIDIA® Quadro® P600 (2 GB)
• NVIDIA® Quadro® P400 (2 GB)
• AMD FirePro™ W2100 (2 GB)
• NVIDIA® Quadro® K420 (2 GB)
• NVIDIA® Quadro® K620 (2 GB)

Mid-range 3D:

• NVIDIA® Quadro® K1200 (4 GB)
• AMD FirePro™ W4300 (4 GB)

High-end 3D:

• AMD Radeon™ Pro WX 4100 (4 GB)

Expansion features

Ports

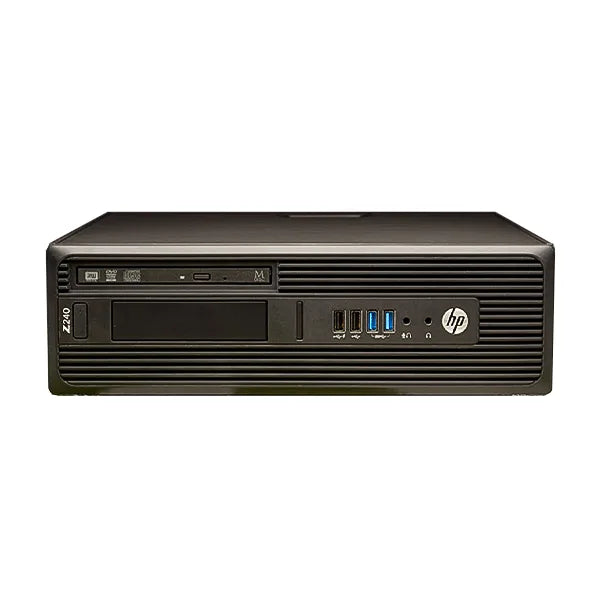

Front:
2 USB 3.0
2 USB 2.0 (1 charging)
1 headphone
1 microphone/headphone

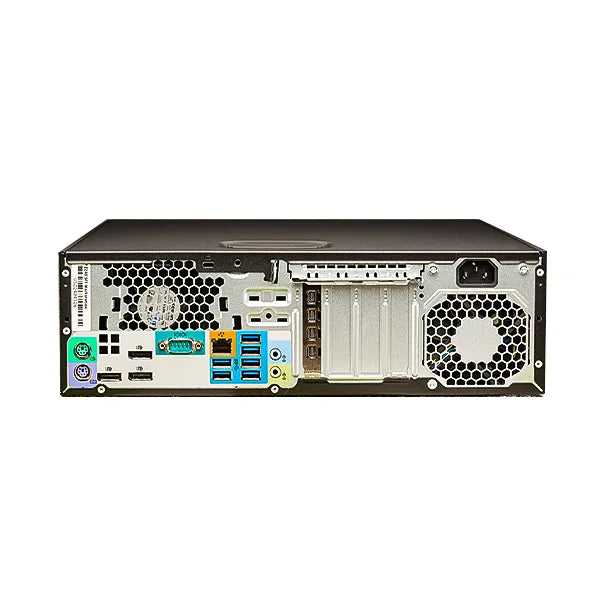

Back:
6 USB 3.0
3 DisplayPort 1.2
1 serial
2 PS/2
1 RJ-45
1 audio line-in
1 audio line-out

Internal:
1 USB 3.0
2 USB 2.0

(1 USB 3.0 and 2 USB 2.0 ports available as 2 separate 2x10(3.0 x1, 2.0 x1) and 1x6(2.0 x1) header. Supports one HP Internal USB 2.0 Port Kit and one USB 3.0 media card reader.)

Expansion slots

1 PCIe Gen3 x16
2 PCIe Gen3 x1 (x1 connector)
1 PCIe Gen3 x4 (x16 connector)
1 M.2 PCIe Gen3 x4
(All slots are low profile)

Communications

Network interface

LANIntegrated Intel® I219LM PCIe GbE
Intel® Ethernet I210-T1 PCIe NIC (optional)
WLANIntel® 8260 802.11a/b/g/n/ac PCIe wireless NIC (optional)
HP X530 10 GbE Dual-Port Adapter (optional)
HP 10 GbE SFP+ SR Transceiver 10

Audio

Integrated Realtek HD ALC221-VB audio

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® registered configurations available 12

Power supply

• 240 W 92% efficient, wide-ranging, active PFC

Dimensions and weight

Dimensions (W x D x H)

338 x 381 x 100 mm

Weight

Starting at 5.7 kg
