HP ProDesk 600 G3 Desktop PC

Specification

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
Windows 10 Home Single Language 64 1
FreeDOS 2.0

Processor family

7th Generation Intel® Core™ i3 processor (i3-7100, i3-7300, i3-7320 models)
7th Generation Intel® Core™ i5 processor (i5-7500, i5-7600 models)
7th Generation Intel® Core™ i7 processor (i7-7700 model)
7th Generation Intel® Pentium® processor (G4560, G4600, G4620 models)
7th Generation Intel® Celeron® processor (G3930, G3950 models)
6th Generation Intel® Core™ i7 processor (i7-6700 model)
6th Generation Intel® Core™ i5 processor (i5-6600, i5-6500 models)
6th Generation Intel® Core™ i3 processor (i3-6100 model)
6th Generation Intel® Celeron™ processor (G4400 model) 4,5

Processor

Intel® Core™ i7-7700 with Intel HD Graphics 630 (3.6 GHz, up to 4.2 GHz with Intel Turbo Boost, 8 MB cache, 4 cores)
Intel® Core™ i5-7500 with Intel HD Graphics 630 (3.4 GHz, up to 3.8 GHz with Intel Turbo Boost, 6 MB cache, 4 cores)
Intel® Core™ i5-7600 with Intel HD Graphics 630 (3.5 GHz, up to 4.1 GHz with Intel Turbo Boost, 6 MB cache, 4 cores)
Intel® Core™ i3-7100 with Intel HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores)
Intel® Core™ i3-7300 with Intel HD Graphics 630 (4 GHz, 4 MB cache, 2 cores)
Intel® Core™ i7-6700 with Intel HD Graphics 530 (3.4 GHz, up to 4.0 GHz with Intel Turbo Boost, 8 MB cache, 4 cores)
Intel® Core™ i5-6600 with Intel HD Graphics 530 (3.3 GHz, up to 3.9 GHz with Intel Turbo Boost, 6 MB cache, 4 cores)
Intel® Core™ i5-6500 with Intel HD Graphics 530 (3.2 GHz, up to 3.6 GHz with Intel Turbo Boost, 6 MB cache, 4 cores)
Intel® Core™ i3-6100 with Intel HD Graphics 530 (3.7 GHz, 3 MB cache, 2 cores)
Intel® Celeron™ G4400 with Intel HD Graphics 510 (3.3 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4560 with Intel HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4600 with Intel HD Graphics 630 (3.6 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4620 with Intel HD Graphics 630 (3.7 GHz, 3 MB cache, 2 cores)
Intel® Celeron™ G3950 with Intel HD Graphics 610 (3 GHz, 2 MB cache, 2 cores)
Intel® Celeron™ G3930 with Intel HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores) 4,20

Chipset

Intel® Q270

Form factor

Microtower

Management features

HP Client Catalog; HP Driver Packs; LANDESK Management; HP SoftPaq Download Manager (SDM); HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Image Assistant; HP MIK for Microsoft SCCM 16,26

Environmental

Low halogen 18

Memory

Maximum memory

64 GB DDR4-2400 SDRAM
(Transfer rates up to 2400 MT/s )

Memory Slots

4 DIMM

Storage

Internal drive bays

One 8.9 cm (3.5"); Two 6.35 cm (2.5") (adapter needed) 25

External drive bays

One 13.34 cm (5.25"); One 9.5 mm slim 25

Internal drive

500 GB up to 1 TB 2.5" SATA SSHD (5400 rpm) 7
128 GB up to 256 GB 2.5" SATA SSD 7
500 GB up to 2 TB 3.5" SATA HDD (7200 rpm) 7
256 GB up to 512 GB 2.5" SATA SED SSD 7,8
256 GB up to 1 TB HP Turbo Drive G2 TLC SSD (PCIe) 7
1 TB 3.5" SATA SSHD (7200 rpm) 7
500 GB up to 1 TB 2.5" SATA HDD (7200 rpm) 7
500 GB 2.5" SATA SED HDD 7

Optical drive

Slim DVD-ROM
Slim DVD-Writer 19

Display and graphics

Graphics

Integrated:
Intel® HD Graphics 530
Intel® HD Graphics 630
Intel® HD Graphics 610 10,11,12,24
Discrete:

AMD Radeon™ R7 450 FH (4 GB)
AMD Radeon™ RX 460 FH (2 GB)
NVIDIA® GeForce® GT730 HDMI (1 GB)
NVIDIA® GeForce® GT 730 (2 GB, with DisplayPort™ display support)

Expansion features

Ports

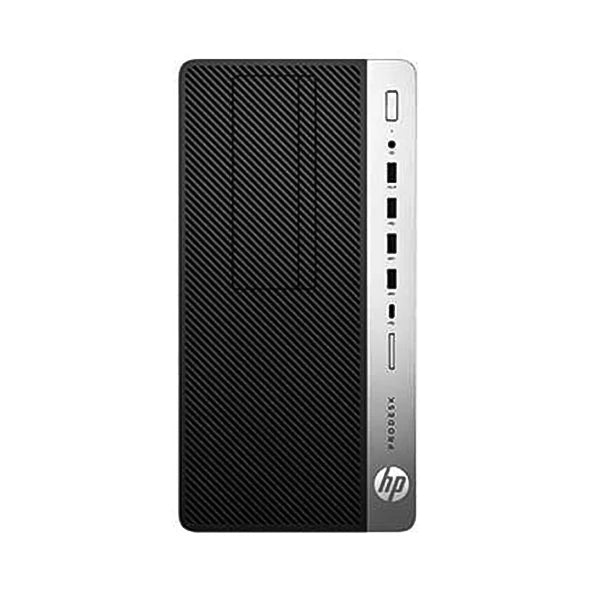

Front:
Universal audio jack with CTIA headset support
1 USB 2.0 (fast charging)
1 USB 2.0
2 USB 3.1 Gen 1
1 USB Type-C™ (charging)
1 SD 4 card reader (optional) 28

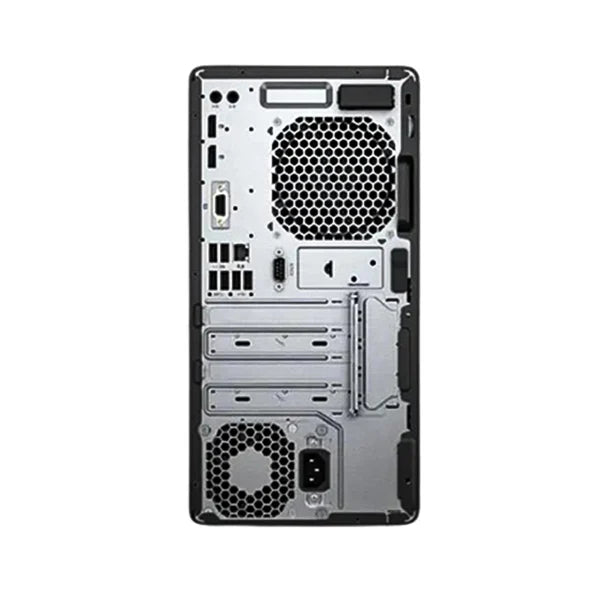

Back:
1 audio in
1 RJ-45
1 audio out
2 DisplayPort™
2 USB 2.0
4 USB 3.1 Gen 1
1 power connector
3 optional ports
Back (optional):
1 choice of 1 HDMI
1 VGA
1 USB 3.1 Type-C™
1 DisplayPort
1 choice of serial and PS/2
1 choice of serial port 23

Expansion slots

1 M.2 2230 for optional wireless NIC
1 M.2 2280 for storage drives
2 PCIe x1 (v3.0) 10.66 cm (4.2") full height, 16.76 cm (6.6") length, 10 W max power
1 PCIe x16 (v3.0)(wired as a x4) 10.66 cm (4.2"), full height 16.76 cm (6.6") length, 35 W max power
1 PCIe x16 (v3.0) 10.66 cm (4.2") full height, 16.76 cm (6.6") length, 75 W max power 22

Media devices

Audio

Conexant CX20632 codec with universal audio jack and 2W internal speaker, headset and headphone front ports (3.5 mm), multi-streaming capable

Communications

Network interface

LANIntel® I219LM Gigabit Network Connection LOM
Intel Ethernet I210-T1 PCIe x1 gigabit network interface card (optional)
WLANIntel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card vPro™
Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™
Intel® 7265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™ 9

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® registered configurations available 17

Power supply

• 250 W, up to 85% efficient, active PFC

Dimensions and weight

Dimensions (W x D x H)

17 x 27.4 x 33.8 cm

Weight

7.14 kg
