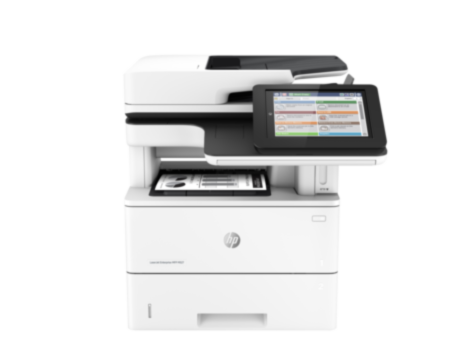

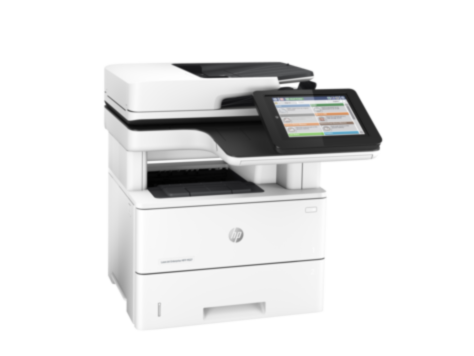

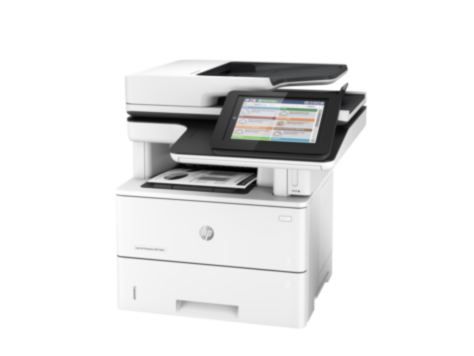

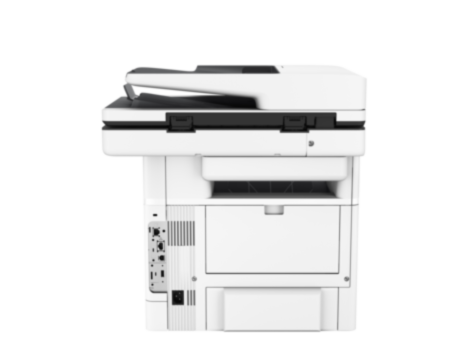

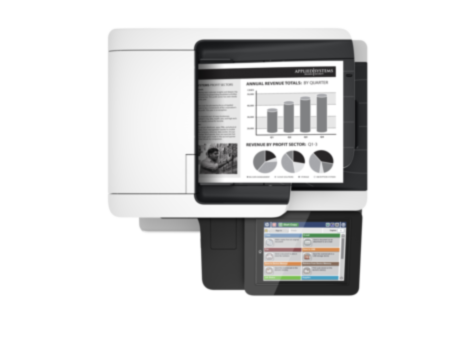

HP LaserJet Enterprise MFP M527f

Specification

Functions

Functions

• Print, copy, scan, fax

Multitasking supported

Yes

Printing specifications

Print speed black:

Normal: Up to 43 ppm 1

First page out (ready)

Black: As fast as 5.7 sec 2

Duty cycle (monthly, A4)

Up tp 150,000 pages 3

Recommended monthly page volume

2,000 to 7,500 4

Print technology

Laser

Print quality black (best)

Up to 1200 x 1200 dpi

Print Resolution Technologies

300 dpi, 600 dpi, HP FastRes 1200, HP ProRes 1200

Print languages

• HP PCL 6
• HP PCL 5 (HP PCL 5 driver available from the Web only)
• HP Postscript Level 3 emulation
• native PDF printing (v1.7)

Display

• 20.3 cm (8") touchscreen, SVGA LCD (colour graphics), smooth gesture enabled touchscreen

Processor speed

1.2 GHz

Automatic paper sensor

No

Replacement cartridges

HP 87A Black Original LaserJet Toner Cartridge (9,000 pages) CF287A
HP 87X Black Original LaserJet Toner Cartridge (18,000 pages) CF287X 15

Connectivity

HP ePrint capability

Yes

Mobile printing capability

HP ePrint
Apple AirPrint™
Mopria™-certified 8

Wireless capability

• Optional, enabled with purchase of HW accessories.

Connectivity, standard

• 2 Hi-Speed USB 2.0 Host
• 1 Hi-Speed USB 2.0 Device
• 1 Gigabit Ethernet 10/100/1000T network
• 1 Fax

Network ready

Standard (built-in Gigabit Ethernet)

Connectivity, optional

• HP Jetdirect 3000w NFC/Wireless Accessory J8030A
• HP Jetdirect 2900nw Print Server J8031A

Minimum system requirements

• Windows 10 all 32-bit/64-bit editions (excluding RT OS for tablets), Windows 8/8.1 all 32-bit/64-bit editions (excluding RT OS for tablets), Windows 7 all 32-bit/64-bit editions, Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc.), CD-ROM/DVD drive or Internet connection, dedicated USB or network connection or Wireless connection, 200 MB available hard disk space, OS compatible hardware (for OS hardware requirements see http://www.microsoft.com)

• Mac OS X 10.8 Mountain Lion, OS X 10.9 Mavericks, OS X 10.10 Yosemite, Internet, USB, 1 GB available hard disk space, OS compatible hardware (for OS hardware requirements see http://www.apple.com)

Memory specifications

Memory

1.25 GB (printer), 500 MB (scanner) - Total standard memory: 1.75 GB

Maximum memory

2.0 GB (printer), 500 MB (scanner) - Total maximum memory: 2.5 GB

Internal Storage

• Standard, embedded HP High-Performance Secure Hard Disk, minimum 320 GB
• AES 128 hardware encryption or greater
• Secure erase capabilities (Secure File Erase-Temporary Job Files, Secure Erase-Job Data, Secure ATA Erase-Disk)
• U.S. Government: Standard, FIPS 140-2 validated hard disk, minimum 500 GB

Paper handling

Paper handling input, standard

1 x 550-sheet input tray; 1 x 100-sheet multipurpose tray

Paper handling input, optional

Optional 550-sheet tray (add up to 3 trays)

Paper handling output, standard

• 250-sheet output bin
• convenience stapler

Maximum output capacity (sheets)

Up to 250 sheets

Duplex printing

• Automatic (standard)

Media sizes supported

• Tray 1: A4, A5, A6, B5, 10 x 15 cm, post cards (JIS single and double), envelopes (DL, C5, C6, B5), custom media sizes: 76 x 127 to 216 x 356 mm
• Tray 2, optional trays 3, 4, and 5: A4, A5, B5, double postcard custom media sizes: 102 x 148 to 216 x 297 mm

Media sizes, custom

• Tray 1: 76 x 127 to 216 x 356 mm
• Tray 2: 102 x 148 to 216 x 297 mm
• Optional trays 3+: 102 x 148 to 216 x 356 mm

Media types

Paper (bond, colour, letterhead, plain, preprinted, prepunched, recycled, rough), envelopes, labels, cardstock, transparencies, user-defined

Media weight, supported

Tray 1: 60 to 200 g/m²; Trays 2-5: 60 to 120 g/m²

Media weights, supported ADF

45 to 200 g/m²

Scanner specifications

Scanner type

Flatbed, ADF (two-sided, single-pass)

Scan file format

PDF, JPEG, TIFF, MTIFF, XPS, PDF/A

Scan resolution, optical

Up to 600 dpi

Scan size, maximum

356 x 216 mm

Scan size (ADF), maximum

356 x 216 mm

Scan size (ADF), minimum

105 x 127 mm

Scan speed (normal, A4)

Up to 43 ppm/43 ipm (monochrome), up to 38 ppm/38 ipm (colour) 6

Recommended monthly scan volume

4,150 to 6,900 7

Duplex ADF scanning

Yes

Automatic document feeder capacity

Standard, 100 sheets

Digital sending standard features

• Scan to Email; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Colour Sense; Auto Crop To Content; Compact PDF

File Format Supported

• Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A
• Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A
• Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)

Scan input modes

• Front panel applications: Copy, Email, Save to Network Folder, Save to USB, Save to Device Memory, Open Extensibility Platform (OXP) applications

Copier specifications

Copy speed (normal)

Black: Up to 43 cpm 5

Copy resolution (black text)

Up to 600 x 600 dpi

Copy resolution (color text and graphics)

Up to 600 x 600 dpi

Copy reduce / enlarge settings

25 to 400%

Copies, maximum

Up to 9,999 copies

Fax specifications

Faxing

Yes

Fax transmission speed

3 sec per page 19

Fax memory

Up to 500 pages

Fax Resolution Black (best)

Up to 300 x 300 dpi (400 x 400 dpi for received faxes only)

Fax Speed Dials, Maximum Number

Up to 1,000 numbers (each with 210 destinations)

Fax Broadcast Locations

210

Power and operating requirements

Power

Input voltage: 220 to 240 VAC, 50/60 Hz, 4.0 A (+/- 10%)

Power consumption

671 watts (printing), 27.8 watts (ready), 3.2 watts (sleep), 0.71 watts (auto-off/auto-on), LAN connection: 0.06 watts (auto-off), 0.06 watts (off) 12

Energy efficiency

• ENERGY STAR® qualified
• EPEAT® Silver
• CECP

Operating temperature range

15 to 32.5ºC

Operating humidity range

30 to 70% RH

Acoustic power emissions (ready)

4.0 B(A) 11

Acoustic pressure emissions bystander (active, printing)

54 dB(A) 11

Dimensions and weight

Minimum dimensions (W x D x H)

482 x 496 x 497 mm

Maximum dimensions (W x D x H)

507 x 631 x 497 mm

Weight

22.0 kg 10

Package weight

27.52 kg
