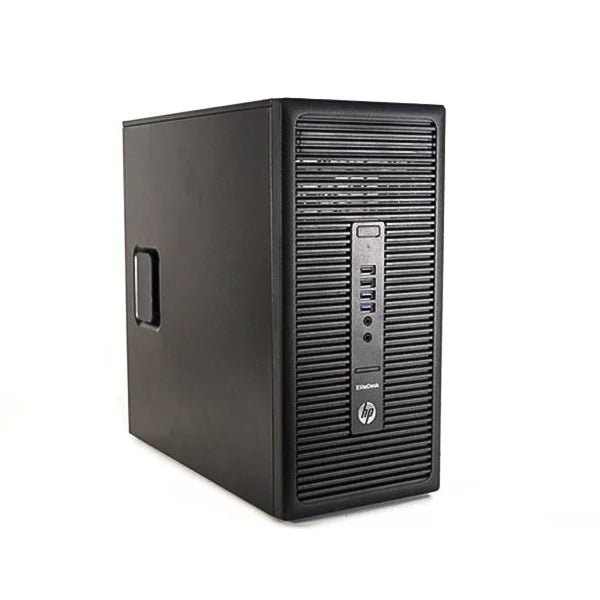

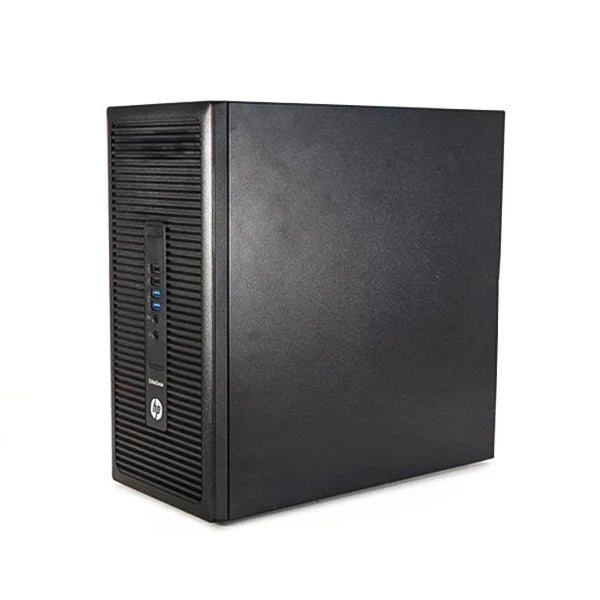

HP EliteDesk Microtower PC 705 G3

Specification

System features

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
FreeDOS 2.0
NeoKylin Linux® 64

Processor family

AMD Ryzen™ 3 PRO processor
AMD Ryzen™ 5 PRO processor
AMD Ryzen™ 7 PRO processor
7th Generation AMD A10 APU processor (A10-9700)
7th Generation AMD A12 APU processor (A12-9800)
7th Generation AMD A6 APU processor (A6-9500)
7th Generation AMD A8 APU processor (A6-9600) 2,13,19

Processor

AMD PRO A10-9700 APU with Radeon™ R7 Graphics (3.5 GHz base frequency, up to 3.8 GHz burst frequency, 2 MB cache, 4 cores)
AMD PRO A12-9800 APU with Radeon™ R7 Graphics (3.8 GHz base frequency, up to 4.2 GHz burst frequency, 2 MB cache, 4 cores)
AMD PRO A6-9500 APU with Radeon™ R5 Graphics (3.5 GHz base frequency, up to 3.8 GHz burst frequency, 1 MB cache, 2 cores)
AMD PRO A8-9600 APU with Radeon™ R7 Graphics (3.1 GHz base frequency, up to 3.4 GHz burst frequency, 2 MB cache, 4 cores)
AMD Ryzen™ 3 PRO 1200 Quad-Core (3.1 GHz base frequency, up to 3.4 GHz burst frequency, 10 MB cache)
AMD Ryzen™ 5 PRO 1500 Quad-Core (3.5 GHz base frequency, up to 3.7 GHz burst frequency, 18 MB cache)
AMD Ryzen™ 7 PRO 1700X Eight-Core (3.4 GHz base frequency, up to 3.8 GHz burst frequency, 20 MB cache)
AMD Ryzen™ 3 PRO 1300 Quad-Core (3.5 GHz base frequency, up to 3.7 GHz burst frequency, 10 MB cache) 2

Chipset

AMD B350 FCH

Form factor

Microtower

Management features

HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP SoftPaq Download Manager; HP System Software Manager (download); LANDESK Management; HP Image Assistant; HP Management Integration Kit for Microsoft System Center Configuration Management 17,18

Environmental

Low halogen 12

Memory

Maximum memory

64 GB DDR4-2400 SDRAM
(Transfer rates up to 2400 MT/s. )

Memory Slots

4 DIMM

Storage

Internal drive bays

One 8,9 cm (3.5")

External drive bays

One slim ODD; 1 SD 4 card reader (optional)

Internal drive

128 GB up to 512 GB HP Turbo Drive G2 SSD (PCIe) 4
256 GB up to 512 GB HP Turbo Drive G2 TLC SSD (PCIe) 4
128 GB up to 256 GB SATA SSD 4
240 GB up to 512 GB SATA SED SSD 4
1 TB SATA SSHD (7200 rpm) 4
500 GB (8 GB cache) up to 1 TB (8 GB cache) SATA SSHD (5400 rpm) 4
500 GB SATA SED (7200 rpm) 4
500 GB SATA FIPS SED (5400 rpm) 4
500 GB up to 2 TB SATA (7200 rpm) 4
256 GB up to 512 GB SATA TLC SSD 4

Optical drive

Slim SATA DVD-ROM
Slim SATA DVD-Writer 5

Display and graphics

Graphics

Integrated:
AMD Radeon™ HDDiscrete:

AMD Radeon™ R5 420 Graphics (1 GB GDDR5 dedicated)
AMD Radeon™ R7 430 Graphics (2 GB DDR4 dedicated)
AMD Radeon™ R7 450 Graphics (4 GB DDR3 dedicated)
AMD Radeon™ R9 350 Graphics (2 GB GDDR5 dedicated)
AMD Radeon™ RX 460 Graphics (2 GB GDDR5 dedicated)
AMD Radeon™ RX 480 Graphics (4 GB DDR4 dedicated)
NVIDIA® GeForce® GT 730 (1 GB DDR3 dedicated)
NVIDIA® GeForce® GT 730 (2 GB DDR3 dedicated)
NVIDIA® Quadro® 310 (1 GB DDR3 dedicated)
NVIDIA® GeForce® GT 730 (2 GB DDR5 dedicated) 14,15,21
(AMD Radeon™ HD graphics integrated on processor)

Expansion features

Ports

Front:
1 USB 2.0
1 USB 2.0 (fast charging)
2 USB 3.1 Gen 1
1 Headphone/microphone
1 Headphone connector

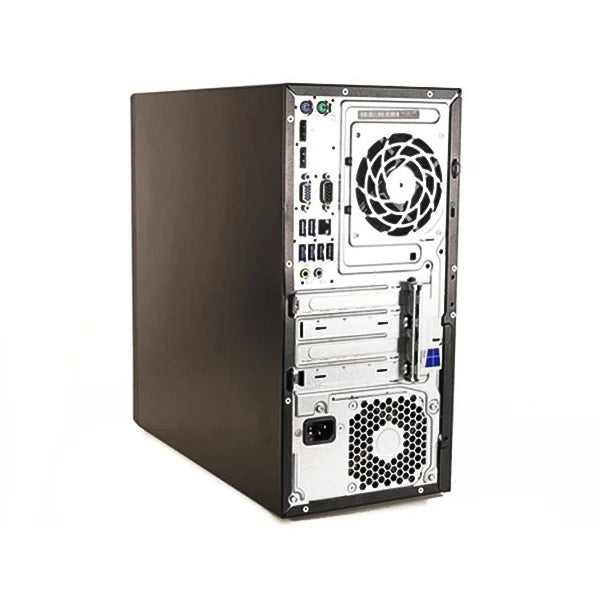

Back:
2 USB 2.0
4 USB 3.1 Gen 1
1 serial
2 PS/2 (keyboard & mouse)
1 VGA
2 DisplayPort
1 audio line in
1 audio line out
1 RJ-45
1 second serial (optional)
1 parallel (optional) 20,22
Internal:
3 SATA storage connectors

Expansion slots

2 PCIe x1
1 PCIe x16 (x4)
1 PCIe x16 (x16)

Media devices

Audio

DTS Studio Sound™ with Realtek ALC221, microphone and headphone front ports (3.5 mm), line-out and line-in rear ports (3.5 mm), internal mono speaker.

Communications

Network interface

LANIntegrated Broadcom NetXtreme GbE Plus
Intel® I210-T1 PCIe GbE (optional)
WLANIntel® 8260 Dual Band wireless 802.11ac (2x2) PCIe combo card
Intel® 7265 Dual Band wireless 802.11ac (2x2) PCIe combo card 6

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® registered configurations available 11

Power supply

• 280 W standard efficiency
• 280 W up to 93% efficient, active PFC

Dimensions and weight

Dimensions (W x D x H)

170 x 340 x 355 mm
(Vertical microtower orientation)

Weight

6.76 kg
