Specification

System features

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. 1
Windows 10 Home 64 1
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) 2,3
FreeDOS 2.0

Processor family

6th Generation Intel® Core™ i3 processor
6th Generation Intel® Core™ i5 processor
6th Generation Intel® Core™ i7 processor
7th Generation Intel® Core™ i5 processor (i5-7400)
Intel® Celeron® processor
Intel® Pentium® processor 5

Processor

Intel® Celeron® G3930 with Intel® HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores)
Intel® Core™ i3-6100 with Intel® HD Graphics 530 (3.7 GHz, 3 MB cache, 2 cores)
Intel® Core™ i3-7100 with Intel® HD Graphics 630 (3.9 GHz, 3 MB cache, 2 cores)
Intel® Pentium® Gold G4560 with Intel® HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G4400 with Intel® HD Graphics 510 (3.3 GHz, 3 MB cache, 2 cores)
Intel® Core™ i5-7400 with Intel® HD Graphics 630 (3 GHz base frequency, up to 3.5 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores) 4

Chipset

Intel® H110

Form factor

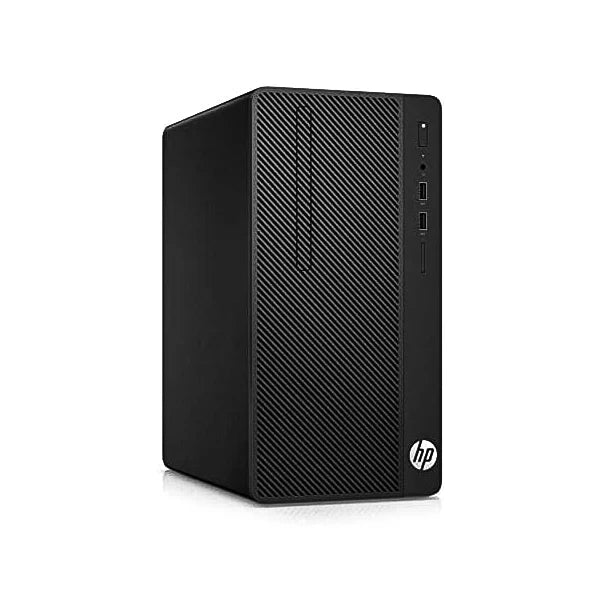

Microtower

Memory

Maximum memory

16 GB DDR4-2400 SDRAM
(Transfer rates up to 2400 MT/s. Memory modules support data transfer rates up to 2400 MT/s; actual data rate is determined by the system’s configured processor. See processor specifications for supported memory data rate. )

Memory Slots

2 DIMM

Storage

Internal drive bays

One 3.5" HDD

External drive bays

1 SD reader (optional); One 3.5" HDD; One 9.5 mm slim ODD

Internal drive

500 GB up to 2 TB 3.5" SATA HDD (7200 rpm) 7
128 GB up to 256 GB 2.5" SATA SSD 7

Additional storage

HP 6-in-1 Media Card Reader (optional)

Optical drive

HP 9.5 mm Slim DVD-ROM
HP 9.5 mm Slim DVD-Writer 8

Display and graphics

Graphics

Integrated:
Intel® HD GraphicsDiscrete:

NVIDIA® GeForce® GT 730 (1 GB)
AMD Radeon™ R5 420 Graphics (1 GB)
AMD Radeon™ R7 430 Graphics (2 GB)
NVIDIA® GeForce® GT 730 (2 GB) 11

Expansion features

Ports

Front:
1 microphone/headphone jack
2 USB 3.0
1 SD reader (optional)
One 5.25" slim-height bay supporting an optical disk drive (optional)
Back:
1 HDMI
1 power connector
1 RJ-45
1 VGA
2 USB 3.0
4 USB 2.0
1 security lock slot
1 audio in connector
1 audio out connector
1 padlock slot
1 serial
2 PS/2 21,22,23,24

Expansion slots

1 PCIe (x1)
1 PCIe (x16)
1 M.2
1 PCI 2.3 19,20

Media devices

Audio

Conexant CX20632 codec with universal audio jack and 2W internal speaker, headset and headphone front ports (3.5 mm), multi-streaming capable

Communications

Network interface

LANIntegrated 10/100/1000M gigabit Ethernet controller
Realtek RTL8111HSH-CG GbE Ethernet Controller 9
WLANIntel® 3168 802.11ac (1x1) wireless with Bluetooth® M.2 Combo, card non-vPro™ 10,25

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® Silver registered configurations available 18

Power supply

• 180 W internal power supply, up to 85% efficiency, active PFC
• 310 W internal power supply, up to 85% efficiency, active PFC

17

Operating humidity range

10 to 90% RH

Dimensions and weight

Dimensions (W x D x H)

17 x 27.4 x 33.8 cm
(Dimensions are WxDxH with product in vertical orientation)

Weight

5.45 kg
