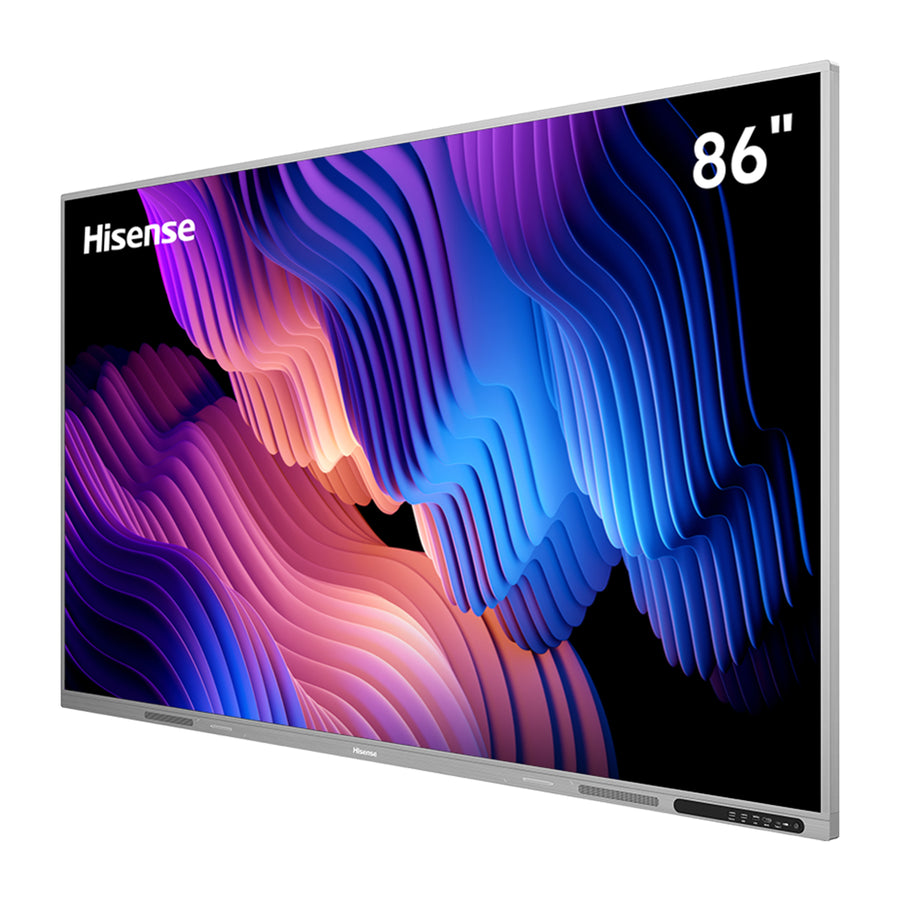

Hisense X1EE Series 86-inch 4K Interactive Flat Panel – 86X1EE

The Hisense 86X1EE is an 86-inch 4K UHD interactive flat panel with a VA panel, 4,000:1 typical contrast and infrared touch for up to 40 points. Its operating system-free design interfaces with computer modules for Google and Windows platforms. Procure.ae supplies Hisense interactive displays across the UAE and can confirm current availability of the 86X1EE.

The 86X1EE displays 3840 x 2160 pixels with 400 nits typical brightness, 4,000:1 typical contrast and an 8 ms typical response time at 60 Hz. Its 10-bit panel shows 1.07 billion colours with 72% NTSC colour gamut and a 178° viewing angle horizontally and vertically. An infrared touch frame behind anti-glare glass supports up to 40 touch points with 90% (±1 mm) touch accuracy, with multi-touch on Windows 10, 8 and 7 and on Android. The display has built-in 2 x 15 W + 20 W speakers and a typical lifetime of 50,000 hours.

The 86X1EE suits classrooms, meeting rooms and training spaces where a separate computer module provides the software. The manufacturer describes the display as an operating system-free design, which it says helps protect user information. It has three HDMI 2.0 inputs, an OPS slot, USB 2.0, USB 3.0 and USB-C ports, an RS-232 input and a service port. The VESA pattern is 1000 x 600 mm with four M8 screws.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
  • 86-inch 4K display
  • Infrared touch
  • Operating system-free design
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
86-inch 4K display
3840 x 2160 pixel VA panel with 4,000:1 typical contrast.
02
Infrared touch
Up to 40 touch points with 90% (±1 mm) touch accuracy.
03
Operating system-free design
No built-in operating system, interfacing with computer modules.
04
Built-in speakers
Built-in 2 x 15 W + 20 W speaker system.
05
Long display lifetime
Typical lifetime rated at 50,000 hours.
06
Connectivity
Three HDMI 2.0 inputs, an OPS slot, USB 2.0, USB 3.0 and USB-C ports.
07
Control and service
RS-232 input and a service port.
08
Certifications
CB, CE, ERP, cTUVus, CEC, FCC, UKCA and Energy Star.

Specifications

30 specifications
General
Key FeaturesOperating system-free design, infrared touch up to 40 points, VA panel, 4,000:1 contrast, 2 x 15 W + 20 W speakers, 50,000-hour typical lifetime
Model86X1EE
TypeInteractive Flat Panel
Display
BacklightD-LED
Brightness400 nits
CameraNone
Color Depth10-bit (1.07 billion colours)
Color Gamut72% NTSC
Contrast Ratio4,000:1 (typical)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy90% (±1 mm)
Touch PointsUp to 40
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemNone (operating system-free design)
Audio
Speaker Output2 x 15 W + 20 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OutputsTouch × 2, Audio Out × 1
PortsHDMI In × 3, OPS × 1, USB 2.0 × 1, USB 3.0 × 1, USB-C × 1, RS-232 In × 1, Service × 1
Power
Power Consumption430 W (max) / 226.7 W (typical, without OPS)
Standby Power<0.5 W
Physical
Dimensions1954.2 x 1151.1 x 98 mm
Surface ProtectionAnti-glare glass
VESA Mount1000 x 600 mm
Weight54.5 kg (net)
Compliance
CertificationsCB, CE, ERP, cTUVus, CEC, FCC, UKCA, Energy Star

Downloads

Manufacturer documents for the Hisense X1EE Series 86-inch 4K Interactive Flat Panel – 86X1EE — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What are the specifications of the Hisense 86X1EE?
The Hisense 86X1EE has an 86-inch VA panel with 3840 x 2160 (4K UHD) resolution, 400 nits typical brightness, 4,000:1 typical contrast and an 8 ms typical response time at 60 Hz. It has infrared touch for up to 40 points, a 50,000-hour typical lifetime and an operating system-free design.
Does the 86X1EE run its own operating system?
No. The manufacturer describes the 86X1EE as an operating system-free design, and it interfaces with computer modules for Google and Windows platforms. The manufacturer says this design helps protect your information.
Can the 86X1EE be wall-mounted?
Yes. The 86X1EE has a VESA pattern of 1000 x 600 mm with four M8 screws. Its net weight is 54.5 kg, so confirm that the wall or mount can carry it and that the height suits the room before installation.
Does the 86X1EE have Wi-Fi, Bluetooth or a camera?
No. The manufacturer specifications list no Wi-Fi, no Bluetooth, no NFC and no camera for the 86X1EE. Connect a computer module or source through its HDMI, USB or USB-C ports instead.
How many HDMI and USB ports does the 86X1EE have?
The 86X1EE has three HDMI (2.0) inputs, one OPS slot, one USB 2.0 port, one USB 3.0 port and one USB-C port. It also has an RS-232 input, a service port and one audio output.
Can I buy the 86X1EE in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
